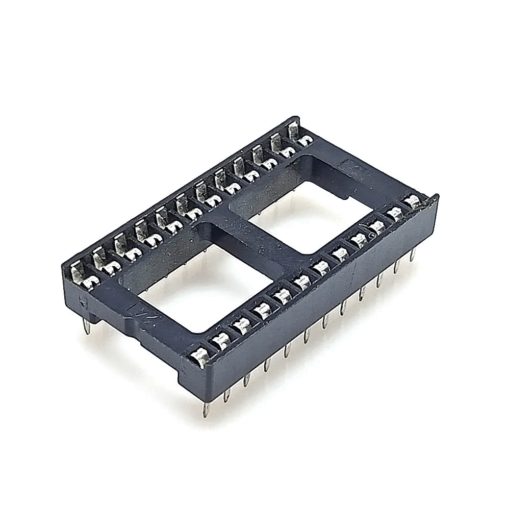

IC Socket (12+12)- Base 24 Pin (Wide)
24 Pin DIP IC Socket Base Adaptor is a 24 pin IC holder, which can be soldered directly onto the PCB. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. The IC can be removed from this socket when required.
IC sockets are generally for preventing damage to IC’s from soldering and while testing multiple circuits.
Features:
- No. of Pins: 24 pins.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
- Current Handling Capacity (A): 1A
- Color: Black
Dimensions:
| No. of Contact |
Table of Dimensions |
|||
|
A±0.30 |
B±0.25 | C±0.30 | D±0.20 | |
| 24Pin | 30.48mm | 27.94mm | 17.78mm |
15.24mm± |
