IRFP150N N-Channel Power MOSFET 42A-100V-0.036Ohm TO-247

IRFP150N N-Channel Power MOSFET 42A-100V-0.036Ohm TO-247

The IRFP150N is a fifth-generation N-channel HEXFET power MOSFET that represents a significant advancement in power transistor technology. It utilizes advanced processing techniques to achieve an extremely low on-resistance per given silicon area. This device is engineered to deliver the fast switching speed and ruggedness that the HEXFET family is known for, providing designers with a highly efficient and reliable component. The core design focuses on optimizing the balance between conduction losses and switching performance.

A key attribute of this MOSFET is its very low static drain-to-source on-resistance, which is a direct result of its fifth-generation technology. This low resistance is critical for minimizing power loss and heat generation when the device is in its fully on state, leading to higher overall system efficiency. The transistor is also fully avalanche-rated, meaning it is tested and guaranteed to withstand a certain level of energy from voltage transients, thereby enhancing the robustness and reliability of the end application.

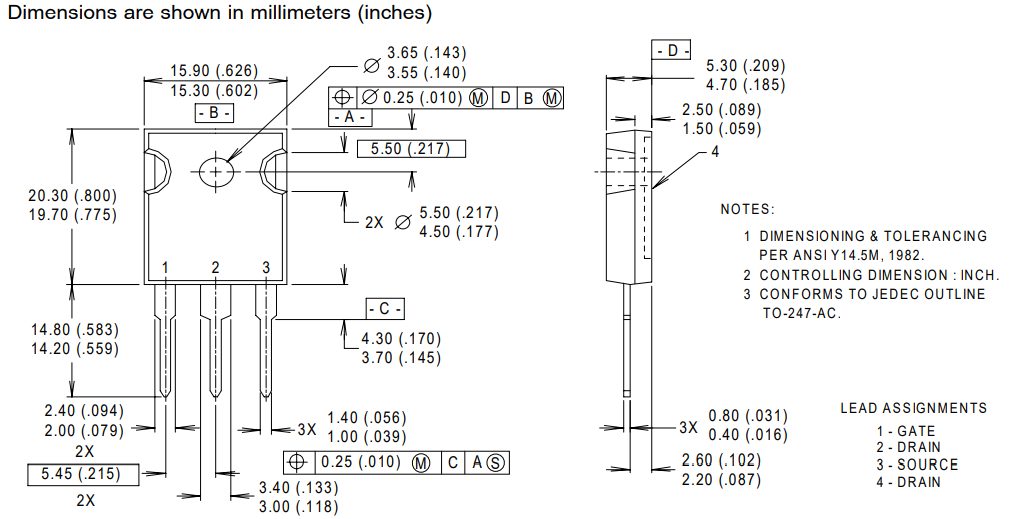

Housed in the TO-247 package, the IRFP150N is intended for commercial and industrial applications where the power levels exceed the capabilities of smaller packages like the TO-220. This package features an isolated central mounting hole, which simplifies the attachment to a heat sink without requiring insulating hardware. The robust physical construction allows the device to handle high power dissipation, making it suitable for demanding environments.
