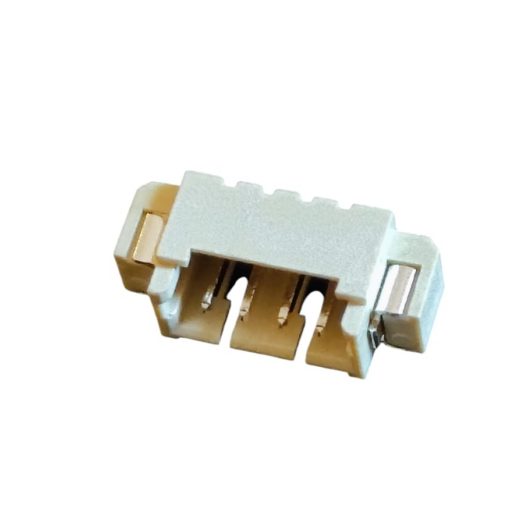

JST SMD Right Angle Connector 1.25mm 4 Pin

The JST SMD Right Angle Connector is a high-quality, surface-mount connector designed for compact electronic applications. With a 1.25mm pitch and 4 pins, it is ideal for secure and reliable signal or power connections in space-constrained designs. Its right-angle orientation supports efficient PCB layout and low-profile assembly.

Features:

• Compact Size 1.25mm pitch for high-density PCB layouts.
• Right-Angle Configuration optimized for low-profile parallel PCB mounting.
• Surface-Mount Technology (SMT) suited for automated manufacturing and efficient assembly.
• Designed with tight tolerances for reliable mating and reduced vibration impact.
• High-quality housing and contact materials ensure long-term performance.
• Corrosion Resistance where Tin-plated contacts for improved conductivity and oxidation resistance.

Specifications:

• PCB Connector Assembly Type: PCB Mount Header
• PCB Mount Orientation: Right Angle
• Connector System: Wire-to-Board
• Mounting Style: Surface Mount
• Pins Structure: 1x4P
• Number of Pins : 4
• Number of Rows: 1
• Pitch: 1.25mm
• Current Rating (Max): 1A
• Operating Temperature Range: -25℃~+85℃

Applications:

• Consumer Electronics.
• Automotive Systems.
• Industrial Automation.
• IoT Devices.
• Medical Equipment.
• Lighting Systems.
• Telecommunications.

Datasheet:

JST SMD Right Angle Connector
