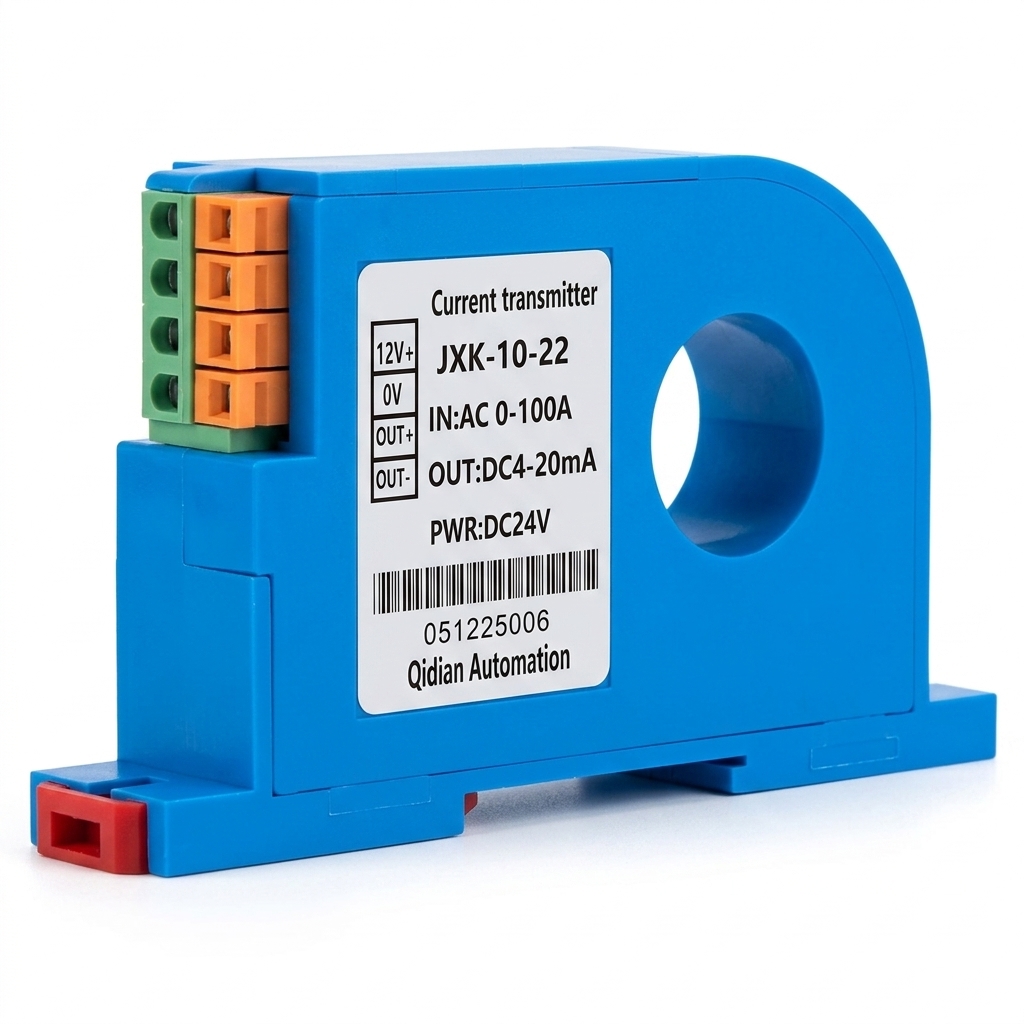

JXK-10-22 DIN Rail Current Transmitter Sensor 24VDC AC0-100A Primary & DC4-20mA Secondary
The JXK-10-22 DIN Rail Current Transmitter Sensor is a high-performance current measurement device designed for industrial automation, process control, and electrical monitoring systems. The transmitter accurately measures AC current and converts it into a proportional DC4-20mA output signal, enabling reliable integration with PLCs, data acquisition systems, industrial controllers, SCADA platforms, and monitoring equipment.
Features:
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift,
- Fast response, strong anti-interference ability
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-10-22 |
| Manufacturer | Qidian Automation |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-100A |
| Secondary Output | DC4-20mA |
| Power Supply | DC24V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
Wiring Diagram:
Applications:
- Motor current monitoring and protection in industrial drive systems.
- Power distribution panel load monitoring and energy management.
- HVAC system compressor and fan current sensing.
- Pump and conveyor motor overload detection.
- Generator and alternator output current measurement.
- Building automation and smart panel current monitoring.
- Renewable energy inverter AC side current acquisition.
- Process control system analog feedback loops.
Package Include:
1x JXK-10-22 DIN Rail Current Transmitter Sensor 24VDC AC0-100A Primary & DC4-20mA Secondary.
