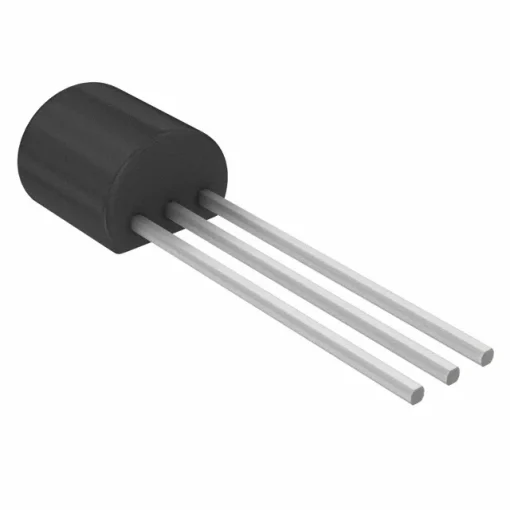

MPSA12 NPN Darlington Transistor
MPSA12 NPN Darlington transistor with very high current gain and 20 V rating in a TO‑92 through‑hole package, ideal for high‑gain switching and amplification
2.50 ج.م
متوفرالكود 3496300141654
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
MPSA12 NPN Darlington Transistor
The MPSA12 NPN Darlington Transistor is a silicon planar NPN bipolar transistor arranged in a Darlington configuration to deliver exceptionally high current gain for switching and amplification tasks in electronic designs. This transistor is engineered to provide robust performance in circuits where a high input impedance and substantial current amplification are essential. Its Darlington pair architecture internally combines two transistors, achieving a typical DC current gain (hFE) of up to 20,000 at IC = 10 mA, VCE = 5 V, making it suited for applications requiring significant gain with minimal base drive.
Features:
- Darlington configuration for amplified current handling in a single package.
- Low leakage currents ensuring efficient off-state operation.
- Compact TO-92 package for easy through-hole integration.
- Wide operating temperature range for environmental resilience.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage | 20VDC |
| Collector-Base Voltage | 20VDC |
| Emitter-Base Voltage | 10VDC |
| Collector Current – Continuous | 1.2ADC |
| Total Device Dissipation @ TA=25°C | 625mW |
| Derate above 25°C (Ambient) | 5mW/°C |
| Operating and Storage Temperature Range | -55°Cto+150°C |
| Thermal Resistance, Junction to Ambient | 200°C/W |
| Thermal Resistance, Junction to Case | 83.3°C/W |
| DC Current Gain (IC=10mADC, VCE=5VDC) | 20000(min) |
| Collector-Emitter Saturation Voltage (IC=10mADC, IB=0.01mADC) | 1.0VDC(max) |
| Base-Emitter On Voltage (IC=10mADC, VCE=5VDC) | 1.4VDC(typ) |
| Collector Cutoff Current (VCB=15VDC, IE=0) | 100nADC(max) |
| Emitter Cutoff Current (VEB=10VDC, IC=0) | 100nADC(max) |
Pin Configuration:
Footprint:
Application:
- Driving relays, solenoids, and lamps from low-current sources.
- Sensor signal amplification in detection circuits.
- Interface between microcontrollers and higher-power loads.
- Switching in power supply control modules.
- High-gain stages in low-frequency amplifiers.
- Battery-operated devices requiring efficient current control.
Package Include:
1x MPSA12 NPN Darlington Transistor.
Datasheet:
