N-KZ-3H N-Type Straight Female Socket Solder Cup Mount Connector for RG58 50 ohm
The N-KZ-3H is a straight N-Type female socket connector designed for terminating RG59 coaxial cable in RF and communication applications. Its solder cup connection allows the cable conductor and shield to be directly soldered to the connector, providing a secure electrical and mechanical connection without requiring a crimping tool.
With a 50-ohm impedance, this connector is suitable for RF systems where controlled impedance and reliable signal transmission are required. The N-Type threaded interface provides a secure connection to compatible N-Type male plugs, making the connector useful for antenna assemblies, wireless communication equipment, RF test setups, and coaxial cable projects.
Features:
- Straight N-Type female socket.
- Solder cup cable termination.
- Designed for RG58 coaxial cable.
- Secure threaded mating interface.
- Suitable for 50-ohm RF systems.
- Direct solder connection.
- Suitable for custom coaxial cable assemblies.
- Rugged metal construction.
Specifications:
| Specification | Value |
|---|---|
| Product Type | RF Coaxial Connector |
| Model | N-KZ-3H |
| Connector Series | N-Type |
| Connector Type | Female Socket |
| Gender | Female |
| Configuration | Straight |
| Termination Style | Solder Cup |
| Compatible Cable | RG58/RG142/RG223/RG303 |
| Impedance | 50 Ohm |
| Coupling Type | Threaded |
| Connection Type | Cable Mount |
| Application | RF / Coaxial |
Applications:
- RG58 coaxial cable termination.
- RF antenna assemblies.
- Wireless communication equipment.
- RF test and measurement equipment.
- Coaxial cable assemblies.
- RF laboratory projects.
- Antenna extension cables.
- Radio communication systems.
- Custom RF cable fabrication.
Package Includes:

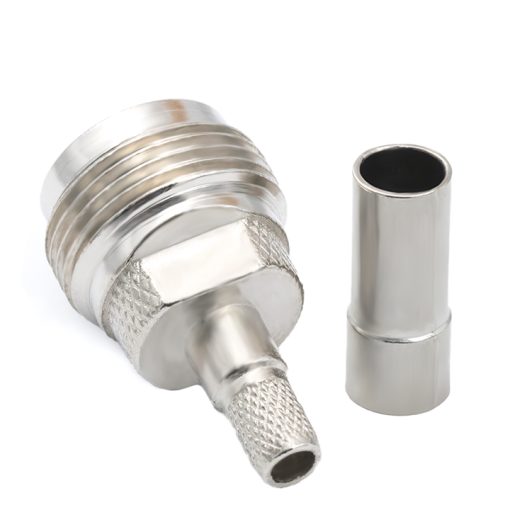

- 1x N-KZ-3H Straight Female Socket Solder Cup Connector.
- 1x Crimp Ferrule (Sleeve).
