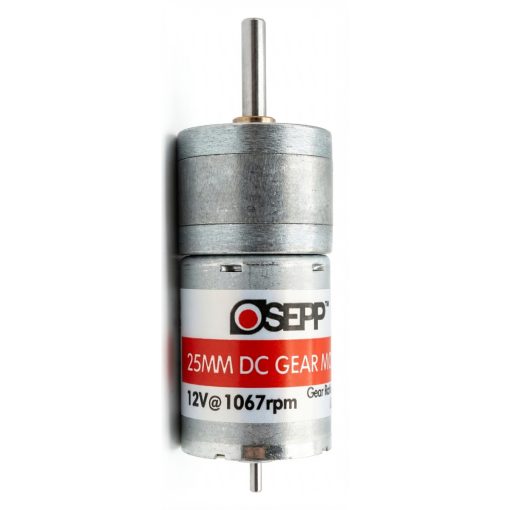

OSEPP LS-00085 1067RPM DC Metal Gear Motor
The OSEPP LS-00085 is a high-performance DC motor designed for reliability and longevity, this motor provides a high rotational speed of 1067RPM at its nominal voltage. It is an ideal choice for makers and engineers looking for a compact power solution that balances speed and torque for various mechanical assemblies.
✅Features
- All-Metal Gearing
- Wide Voltage Range
- Precision Shaft
- Standard Mounting
📜📚Specifications
| Parameter | Specification |
| Voltage | 12V |
| Voltage Range | 6V – 18V |
| Speed (No Load) | 1067 RPM |
| Current (No Load) | 0.23A |
| Rated Torque | 0.3 kgf-cm |
| Gear Ratio | 1 : 10.3 |
| Output Shaft Diameter | 4mm |
| Mounting Screw Size | 3mm |
💻Applications
- Hobbyist Projects
- Model Building
- Science Projects
- Robotics
- General DIY
🎁Package Content
- 1 x OSEPP LS-00085 1067RPM DC Metal Gear Motor
