Power Resistor 30W 10Ω

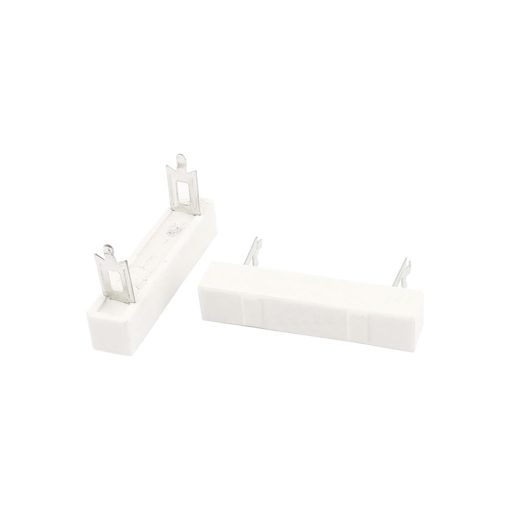

30 W, 10 Ω cement power resistor ceramic core, silicon-cement sealed, welded tinned leads; stable continuous dissipation with derating at high ambient.
30.00 ج.م
متوفرالكود 3496300129935
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
Power Resistor 30W 10Ω
The 30 W, 10 Ω cement-type power resistor features a high-alumina ceramic core enclosed within a cement-coated ceramic body that provides mechanical protection and thermal stability. The resistive element may be realized as a metal-oxide film or a resistance wire, embedded and sealed with silicone-based cement to resist moisture and improve heat transfer. Termination is provided by welded tinned iron end caps with solderable leads, offering a secure electrical connection for through-hole mounting or wired assemblies.
Rated for continuous 30 W dissipation, this resistor’s nominal electrical behavior follows the defined power and resistance relationship; its rated voltage is √(P×R) approximately 17.32 V for the 10 Ω value. The part is designed to operate continuously at the rated ambient with a manufacturer-specified derating curve as temperature rises, and it tolerates short-duration overloads and pulse stresses within the limits set by the specification, maintaining stable resistance under both steady-state and transient thermal loading.
Constructed to meet common industrial reliability tests, the component passes solderability and solder-heat checks, dielectric and insulation testing, temperature cycling, humidity load-life and extended load-life trials. The cement sealing and ceramic casing minimize moisture ingress and mechanical stress, reducing long-term drift. These qualities make the resistor suitable where predictable dissipation, long-term stability, and flame-resistant housing are required.
Features:
- Cement-coated ceramic housing with high-alumina core.
- Metal-oxide film or resistance-wire element options.
- Silicone/silicon-cement sealing (flame-resistant).
- Welded tinned iron end caps with solderable leads.
- Continuous 30 W rating with derating for elevated ambient temperature.
- Designed to meet standard reliability tests (solder heat, humidity, load life).
| Parameter | Value |
|---|---|
| Product type: | Cement (ceramic) power resistor |
| Rated power: | 30 W |
| Nominal resistance: | 10 Ω |
| Rated voltage (E = √(P×R)): | ≈ 17.32 V |
| Maximum working voltage: | 1,000 V |
| Maximum overload voltage: | 1,500 V |
| Dielectric withstanding voltage: | 1,000 V |
| Temperature coefficient: | Metal-oxide: ±350 ppm/°C; Resistance wire: ±260 ppm/°C |
| Resistance tolerance options: | K (±10%), J (±5%), G (±2%) |
| Insulation resistance: | ≥ 10³ MΩ |
| Solderability / solder heat resistance: | Solderability ≥95% coverage; solder heat test 350±10 °C for 3±1 s |
| Load life / humidity life tests: | Load life: 70±3 °C, 1000 h; Humidity load life: 40±2 °C, 90–95% RH, 1000 h |
| Typical external dims (CR-L style): | L 75±2.0 mm × W 19±2.0 mm × H 17±2.0 mm; lead dia Φ 0.68 mm |
Applications:
- Power control circuits.
- Load testing / dummy loads.
- Motor drive braking and discharge networks.
- Industrial automation equipment.
- Power supplies and inverter systems.
Package Contents:
- 1x Power Resistor 30W 10Ω
| الوزن | 30 جرام |
|---|---|
| الأبعاد | 60 × 35 × 15 ميليميتر |
