PTV112 Rotary Potentiometer 50K 6Pin with Plastic Shaft 0.05W
PTV112 Rotary Potentiometer 50K 6Pin with Plastic Shaft 0.05W is a compact dual-gang variable resistor designed for precise analog control applications. The potentiometer features a 50kΩ resistance value with a 6-pin PCB mounting configuration, making it suitable for stereo audio systems, signal adjustment circuits, amplifiers, and electronic control interfaces.
Features:
- Dual-gang rotary potentiometer design.
- 50kΩ resistance value.
- 6-pin through-hole PCB mounting.
- Plastic shaft construction.
- Compact size for embedded applications.
- Smooth rotational adjustment.
Specifications:
| Parameter | Value |
|---|---|
| Series | PTV112 |
| Resistance | 50kΩ |
| Resistance Tolerance | ±20% |
| Taper | Linear |
| Power Rating | 0.05W |
| Maximum Operating Voltage | 50VAC, 20VDC |
| Mechanical Rotation Angle | 300°±5° |
| Rotational Torque | 20~200g-cm |
| Detent Torque | 30~300g-cm |
| Rotational Life | 15000 cycles |
| Residual Resistance | 1% |
| Sliding Noise | 100mV |
| Operating Temperature | -10°C to +50°C |
| Shaft Material | Plastic (Insulated) |
| Element Material | Carbon |
| Overall Height | 14mm |
| Overall Length | 16mm (without pins) |
| Mounting Type | PCB Through-Hole |
| Soldering Condition | 300°C max, 3s |
| Termination | 6 Pin Dual-Gang |

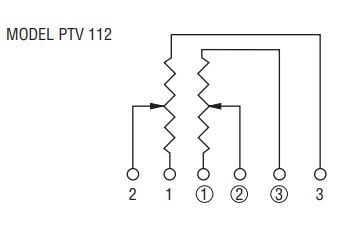

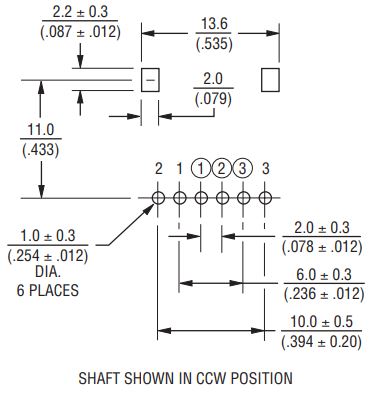

Electrical Diagram:
Applications:
- Stereo volume and balance control in audio amplifiers and mixing consoles.
- Voltage divider networks for analog sensor calibration and reference setting.
- Dual-channel gain trimming in operational amplifier and filter circuits.
- User interface control for LCD contrast, backlight brightness, and menu navigation.
- Motor speed regulation and PWM duty-cycle adjustment in driver circuits.
- Variable power supply output tuning and battery charger calibration.
- Synthesizer parameter control including pitch bend, modulation, and envelope shaping.
- Embedded system analog input conditioning for Arduino and microcontroller ADC pins.
- Test and measurement equipment offset and span calibration.
Package Include:
1x Rotary Potentiometer 50K 6Pin with Plastic Shaft 0.05W.
