RF-800 Liquid Flux 1Liter

RF-800 1Liter no-clean liquid flux. Ensures strong, shiny joints with no residue. Ideal for manual, dip, and wave soldering of SMD and through-hole components.

710.00 ج.م

متوفرالكود 3496300163830
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
التوفر: متوفر
الكود:3496300163830

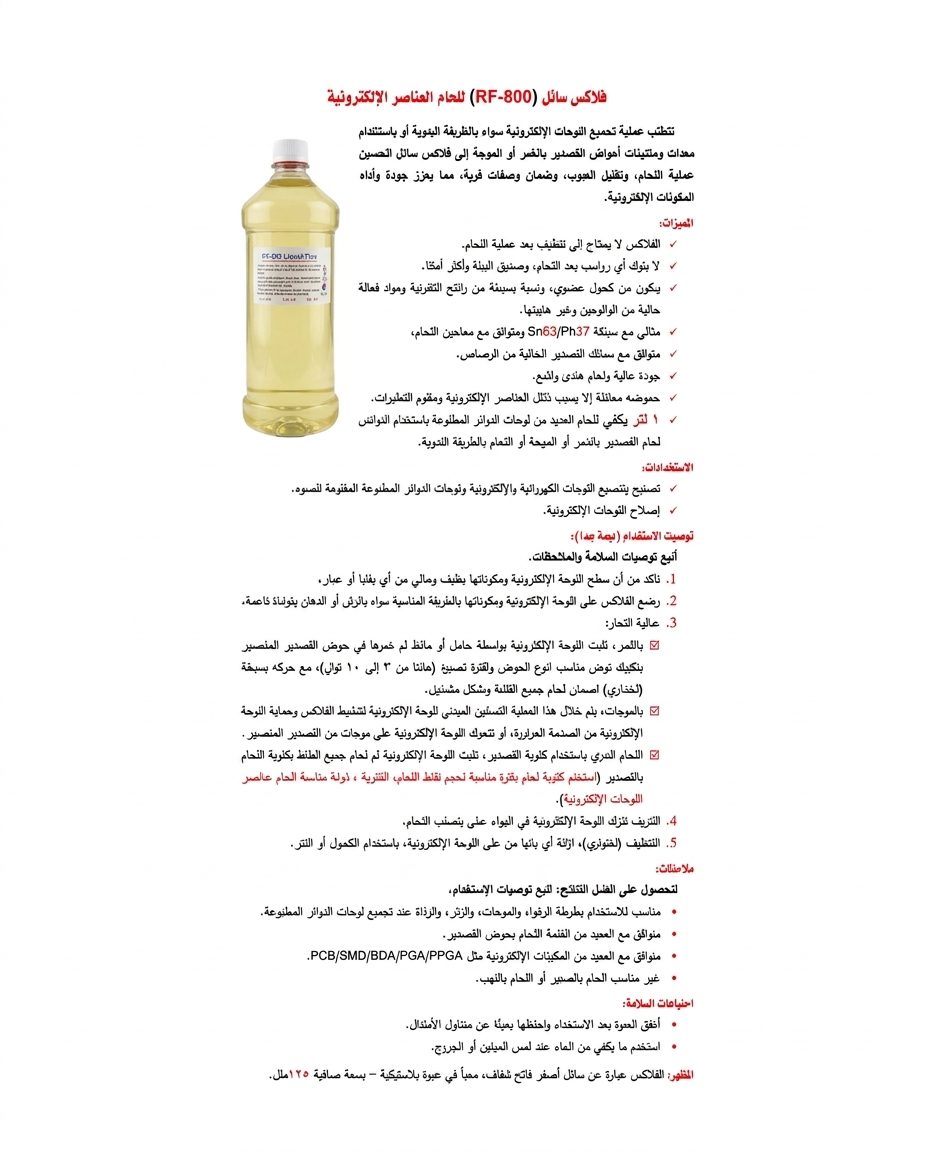

Flux, RF-800 Soldering Liquid Flux 1Lit for Electronics

RF-800 soldering liquid flux is designed to provide excellent soldering results during the assembly of electronic boards by manual, dip, or wave soldering; improves the soldering process, minimizes defects, ensures strong joints, enhancing quality and performance for through-hole and SMD components.

Features
  • No-Clean flux.
  • No-residue post soldering, environmentally friendly and safer.
  • Formulated mostly with an organic alcohol, very small percentage of rosin, Free halogen and non-halide activators.
  • It’s ideal for Sn63/Pb37 alloy and solder paste.
  • Compatible with lead-free solder alloy.
  • High quality, soft and shiny soldering.
  • Neutral acidity, non-corrosive and fungus resistant.
  • 1Lit is enough for tin soldering a lot of PCBs in a few seconds by using manual, dip or wave soldering.
Usage
  • Manufacturing of electrical & electronic boards and photoresist PCB.
  • It can be used as a spray during assembling and repairing PCB.
Usage Recommendations (very important)
  • Follow safety precautions & notes.
  • Ensure that the surface of PCB and its components are clean and free of any residue or dust.
  • Apply the flux to the PCB and its components by using the appropriate method.
  • Soldering Process:
    • Dip Soldering: Secure the PCB with a holder or crucible plier tong and then immerse it in the molten solder by using an appropriate technique for the soldering machine, this process lasts for a short period (usually 3 to 10 seconds), with a slight movement (optional) to ensure that soldering covers all the points.
    • Wave Soldering: During this process, the PCB is preheated to activate the flux and protect the PCB from thermal shock, the PCB is then moved in molten solder waves.
    • Manual Soldering: Secure the PCB and solder all pins using a soldering iron with wattage appropriate.
  • Cooling: Leave the circuit board in the air until the solder is solidified.
  • Cleaning (optional): Remove any residue from the PCB by alcohol or thinner.
Notes
  • For best results, follow the usage recommendations.
  • Suitable with foam, wave, spray and mist fluxers at assembling PCBs.
  • Compatible with many tin soldering systems.
  • Suitable with PCB/BGA/PGA/PPGA/SMD and all sensitive electronic components.
  • Not suitable with welding by fusion or flame.
Safety Precautions
  • Close after using & keep away from children.
  • Use enough water when eyes or wounds are touched.
Appearance

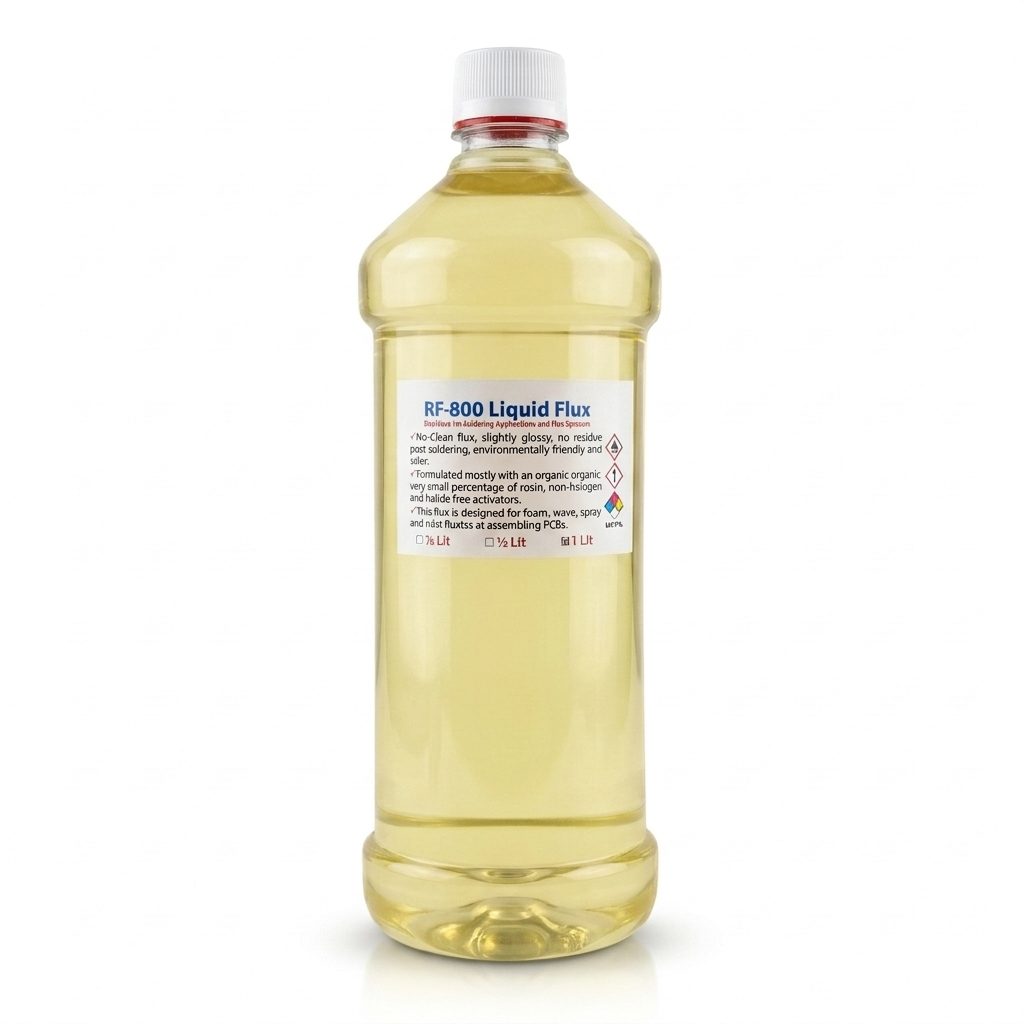

The flux is a light yellow liquid, packaged in a transparent plastic bottle, (Net capacity) 1Lit.
