SAMXON Aluminum Electrolytic Capacitor 1000uF 16V 10×12.5mm

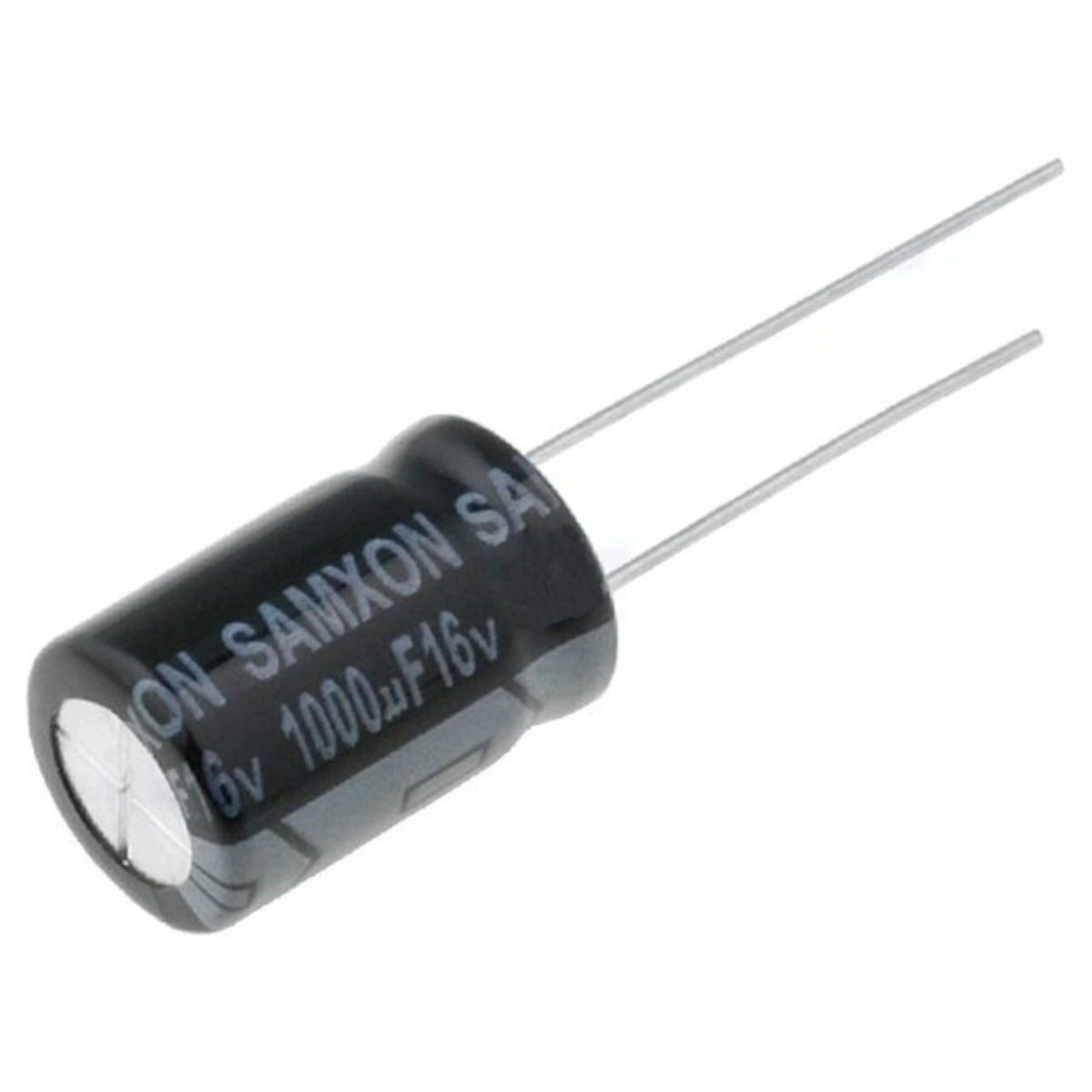

The KM series is SAMXON’s general-purpose miniature aluminum electrolytic capacitor family, rated for continuous operation up to +105°C with a 2,000-hour load life. This item is a 1000µF, 16V DC, ±20% tolerance unit in a 10 mm diameter × 12.5 mm length radial (through-hole) case with 5.0 mm lead spacing, black sleeve with white marking.
Features
- +105°C general-purpose series with 2,000-hour load life
- Low leakage current
Specifications
| Manufacturer / Brand | SAMXON |
|---|---|
| Series | KM – Miniature aluminum electrolytic, general purpose (+105°C) |
| Capacitance | 1000µF |
| Capacitance tolerance | ±20% (120Hz, +20°C) |
| Rated working voltage | 16V DC |
| Category temperature range | −40°C to +105°C |
| Load life (endurance) | 2,000 hours at +105°C with rated DC working voltage and rated ripple current |
| Case size (ΦD × L) | 10 × 12.5 mm |
| Lead spacing (F) | 5.0 mm |
| Lead diameter (Φd) | 0.6 mm |
Applications
- Communication equipment
- Switching power supplies
- Industrial measuring instruments
- Automotive electric products
- General-purpose electronics requiring +105°C capability
Package Content
- 1 x SAMXCON Aluminum Electrolytic Capacitor 1000uF 16V 10×12.5mm
