TOPLIA EH858D HOT AIR Rework Station
The TOPLIA EH858D Hot Air Rework Station is used for soldering and desoldering surface-mount electronic components, making it suitable for PCB repair, component replacement, and electronics assembly.
1,850.00 ج.م
متوفرالكود 6974661121173
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة

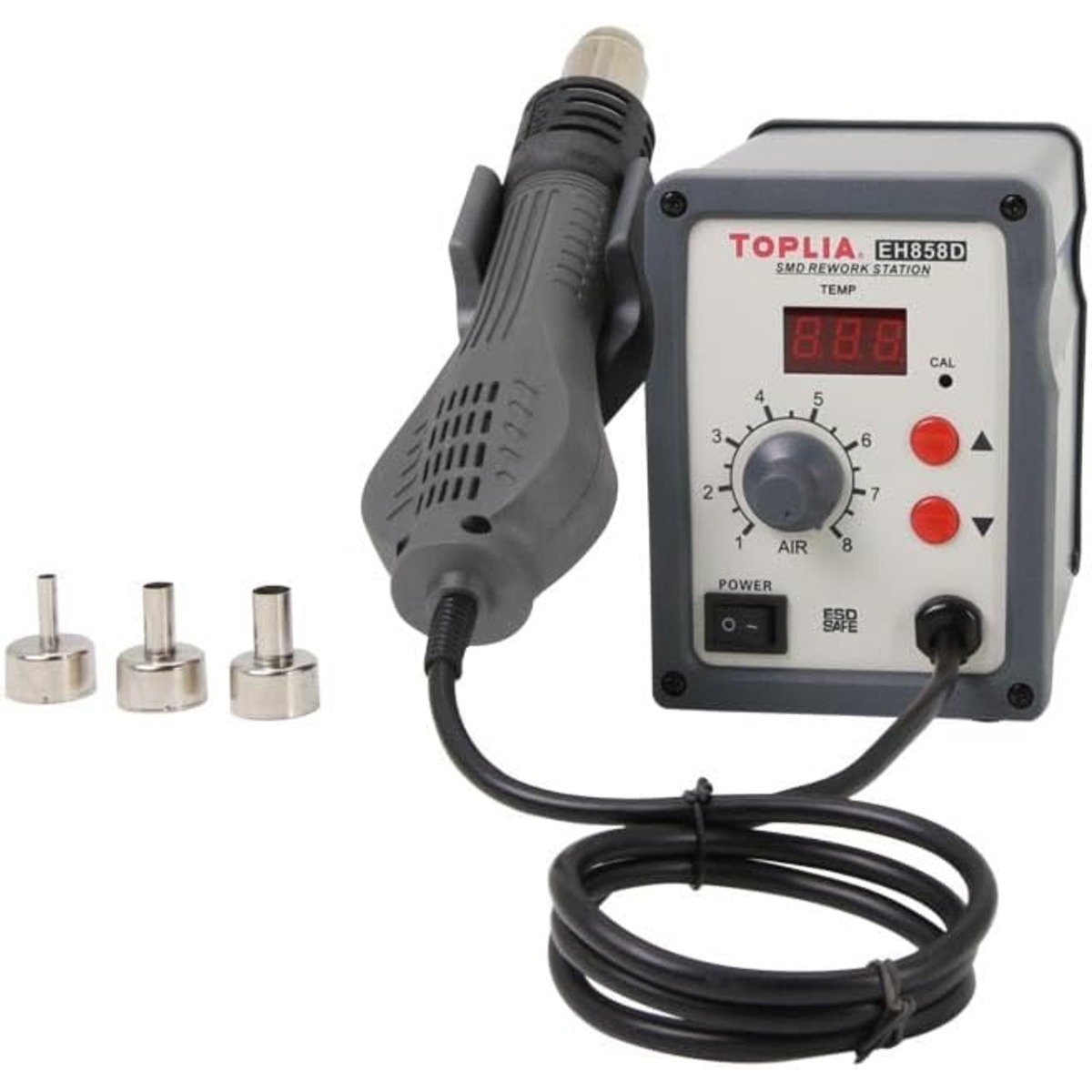

TOPLIA EH858D HOT AIR Rework Station
The TOPLIA EH858D Hot Air Rework Station is a specialized electronics repair tool designed to heat solder joints using a controlled stream of hot air. It helps technicians remove and install surface-mount devices (SMDs), including integrated circuits, resistors, capacitors, and other components, without requiring direct contact between a conventional soldering iron tip and the component. This makes it useful for repairing printed circuit boards, replacing damaged components, and performing rework on densely populated electronic assemblies.
Designed for electronics workshops, service centers, and DIY workbenches, a hot air rework station allows heat to be directed toward specific areas of a circuit board. With suitable nozzle selection and careful temperature and airflow adjustment, it can support a variety of soldering and desoldering tasks. Proper handling is important to avoid overheating sensitive components, lifting PCB pads, or damaging nearby parts. Always confirm the manufacturer’s operating instructions and electrical ratings before use.
Features:
- Digital temperature display for convenient monitoring.
- Adjustable hot air temperature.
- Adjustable airflow for different component sizes.
- Brushless fan for consistent airflow.
- Ceramic heating element for efficient heating.
- Automatic standby or sleep function when the handle is placed in its holder, as specified for this model.
- Automatic cooling function to help protect the heating element.
- Compact desktop design for electronics workbenches.
- Replaceable nozzles for focused or wider heat distribution.
Specifications:
| Specification | Details |
|---|---|
| Brand | TOPLIA |
| Model | EH858D |
| Product Type | Hot Air Rework Station |
| Input Voltage | AC 220V |
| Frequency | 50Hz |
| Rated Power | 700W |
| Temperature Range | 100°C–500°C |
| Airflow Type | Brushless fan |
| Maximum Airflow | Up to 20 L/min |
| Heating Element | Ceramic heating core with nickel-chromium heating wire |
| Temperature Control | Digital button control |
| Airflow Control | Adjustable rotary control |
| Display Type | Digital display |
| Sleep Function | Yes |
| Product Dimensions | 152 × 100 × 138 mm |
| Product Weight | 1.69 kg |
| Country of Origin | China |
Applications:
- SMD component soldering and desoldering.
- Integrated circuit replacement.
- PCB repair and rework.
- Mobile phone and electronics repair.
- Removing connectors and surface-mounted components.
- Heat-shrink tubing applications.
- Preheating circuit boards.
- Electronics assembly and prototyping.
- Repair of consumer electronic equipment.
Packages Included:
- 1 × TOPLIA EH858D Hot Air Rework Station.
- 1 × Hot Air Gun Handle.
- 1 × Hot Air Handle Holder.
- 3 × Hot Air Nozzles (5 mm, 7 mm, and 10 mm).
- 1 × AC Power Cable.
- 1 × User Manual.
