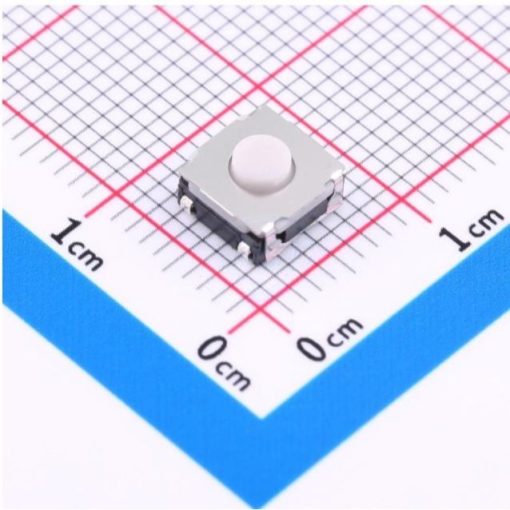

TS-G004186 SMD Tactile Switch 4 Pin 6.2×6.2×3.8mm
The TS-G004186 is a high-quality surface-mount tactile switch with a 4-pin configuration, measuring 6.2×6.2 mm and a height of 3.8 mm. It features a white actuator that provides responsive tactile feedback, designed for integration into a wide range of electronic devices. This switch is built to handle an operating force of 2.0 N, making it perfect for devices requiring precise user interaction.
Features:
- 4-pin surface-mount configuration ensures reliable PCB soldering.
- White actuator for clear tactile feedback.
- Compact dimensions of 6.2×6.2 mm with a height of 3.8 mm.
- Operating force of 2.0 N, providing smooth and reliable activation.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-G004186 |
| Mounting Type | Surface Mount |
| Actuator Color | White |
| Actuator Type | Tactile |
| Dimensions (L×W×H) | 6.2×6.2×3.8 mm |
| Operating Force | 2.0 N |
| Electrical Rating | 50mA @ 12VDC |
| Contact Resistance | ≤100Ω |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 250V AC for 1 minute |
| Operating Temperature | -40°C to +90°C |
Foot Print & Dimension:
Applications:
- Consumer electronics requiring tactile user interfaces.
- Industrial control panels with tactile feedback.
- Automotive electronics with button interfaces.
- Medical devices and home appliances with electronic controls.
