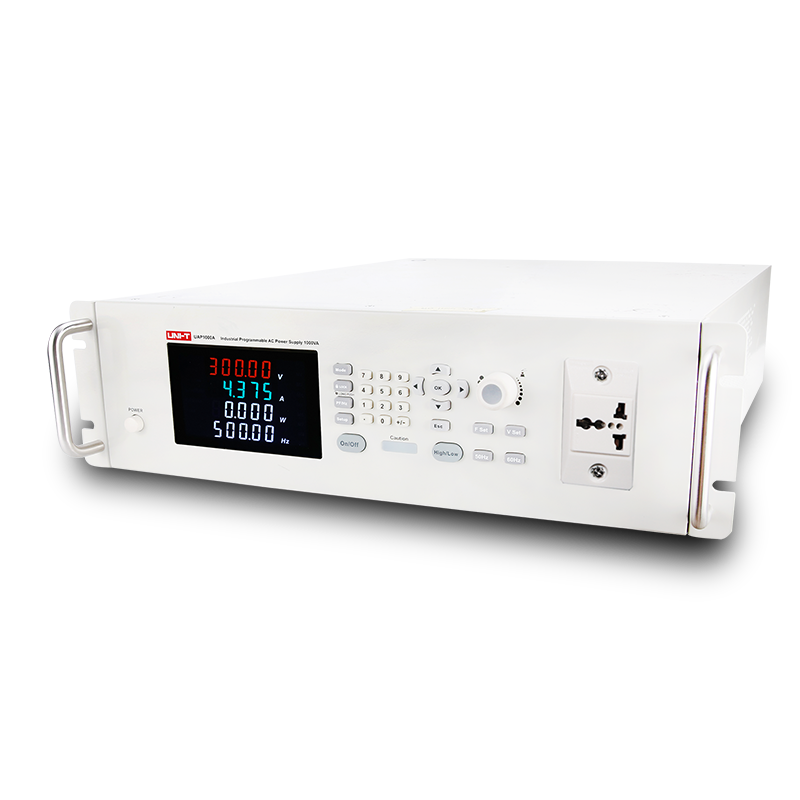

UNI-T UAP1000A AC Power Source
UNI-T UAP1000A 1000VA programmable AC power source delivers adjustable 0–300VAC output, 45–250Hz frequency control, and remote operation.
48,500.00 ج.م
غير متوفرالكود 3496300163717
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
UNI-T UAP1000A AC Power Source
The UNI-T UAP1000A AC Power Source is a programmable variable-frequency AC power supply designed for electronic product testing, electrical performance evaluation, research and development, and quality inspection. With a rated output capacity of 1000VA, it generates adjustable AC voltage and frequency to help engineers evaluate how electrical and electronic equipment performs under different supply conditions.
Features:
- Programmable AC power source with a rated output capacity of 1000VA.
- Adjustable output voltage from 0–150VAC in the low-voltage range and 0–300VAC in the high-voltage range.
- Adjustable output frequency from 45Hz to 250Hz in 0.01Hz increments.
- Maximum output current of 8.4A in the low-voltage range and 4.2A in the high-voltage range.
- Uses DDS waveform generation and SPWM technology.
- Produces a low-distortion sine-wave output.
- Provides a four-window LCD for simultaneous viewing of measurement parameters.
- Measures output voltage, current, frequency, active power, and power factor.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T. |
| Model | UAP1000A. |
| Product Type | Programmable AC power source. |
| Rated Output Capacity | 1000VA. |
| Operating Mode | SPWM (sinusoidal pulse-width modulation). |
| Waveform Generation | DDS (direct digital synthesizer). |
| Input Phase | Single-phase, two-wire. |
| Input Voltage | 220V±10%. |
| Input Frequency | 47–63Hz. |
| Output Phase | Single-phase, two-wire. |
| Low-Voltage Output Range | 0–150VAC. |
| High-Voltage Output Range | 0–300VAC. |
| Output Frequency Range | 45–250Hz. |
| Frequency Setting Step | 0.01Hz. |
| Voltage Setting Step | 0.01V. |
| Maximum Output Current, Low Range | 8.4A. |
| Maximum Output Current, High Range | 4.2A. |
| Current Display Resolution | 0.001A. |
| Frequency Display Resolution | 0.01Hz. |
| Voltage Display Resolution | 0.01V. |
| Voltage Measurement Accuracy | ±(0.5%FS+5 digits). |
| Current Measurement Accuracy | ±(0.5%FS+5 digits). |
| Frequency Measurement Accuracy | ±(0.01%FS+5 digits). |
| Power Measurement Accuracy | ±(0.5%FS+5 digits). |
| Output Voltage Accuracy | ±1%FS. |
| Load Stability | 1%. |
| Frequency Stability | 0.01%. |
| Waveform Distortion (THD) | 3% under the specified pure-resistive-load test conditions. |
| Displayed Parameters | RMS voltage, RMS current, frequency, active power, and power factor. |
| Display | Four-window LCD. |
| Programmable Presets | 9 groups (M1–M9). |
| Output Delay | Adjustable. |
| Current Limit | Adjustable. |
| Output Protection | Overcurrent, overtemperature, overload, and short circuit. |

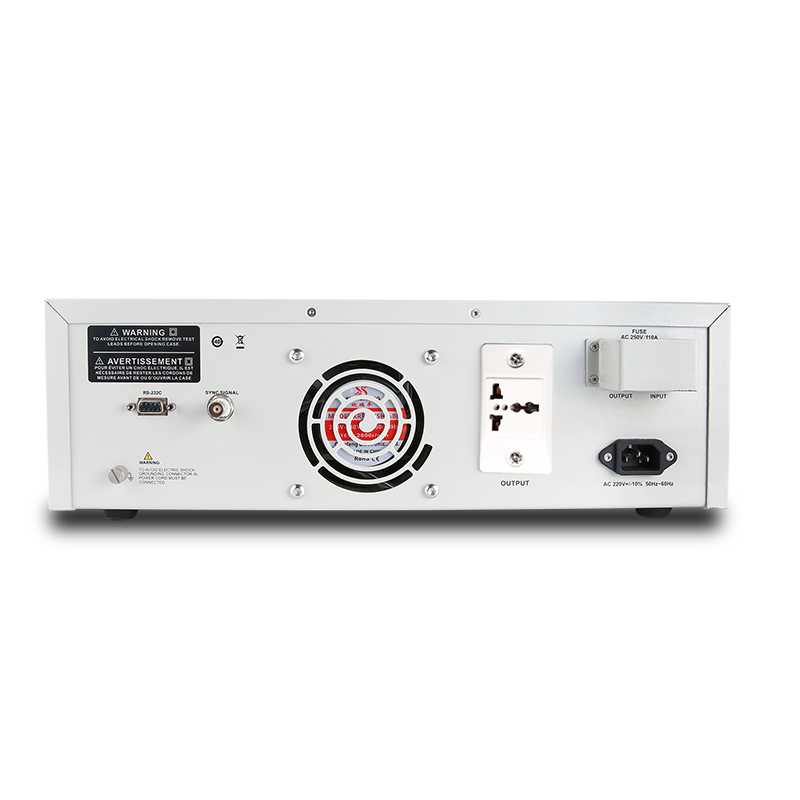

| Output Connections | Front and rear AC output sockets. |
| Communication Interface | RS-232C. |
| Communication Protocols | SCPI and MODBUS. |
| Remote Control | Supported through compatible PC software or custom control programs. |
| Dimensions (W×H×D) | 430×132×483mm. |
| Operating Temperature | 0–40°C. |
| Operating Humidity | 20–80%RH. |

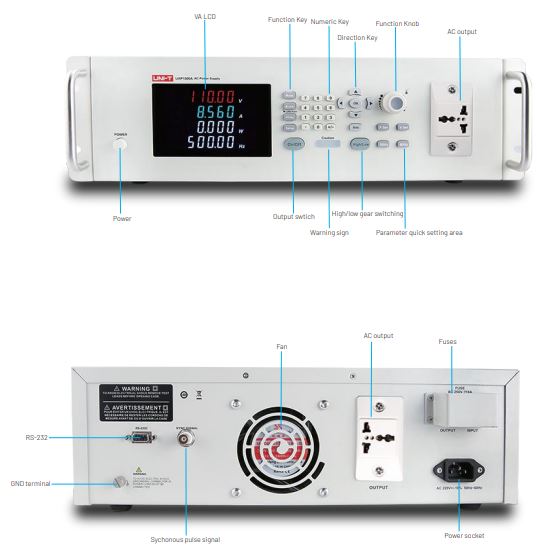

Configuration:
Applications:
- Research and development of electronic products.
- Testing AC power supplies and electrical equipment.
- Motor and electrical drive testing.
- Lighting equipment performance evaluation.
- Consumer electronics testing.
- Quality inspection and production-line testing.
- Testing equipment under different AC voltage and frequency conditions.
- Power input tolerance and abnormal supply-condition simulation.
- Automated electrical testing using computer control.
- Testing products that require controlled voltage ramp-up and output delay.
Package Include:
- 1x UNI-T UAP1000A Programmable AC Power Source.
- 1x AC Power Cable.
- 1x RS-232C Communication Cable.
- 2x Spare Fuses.
