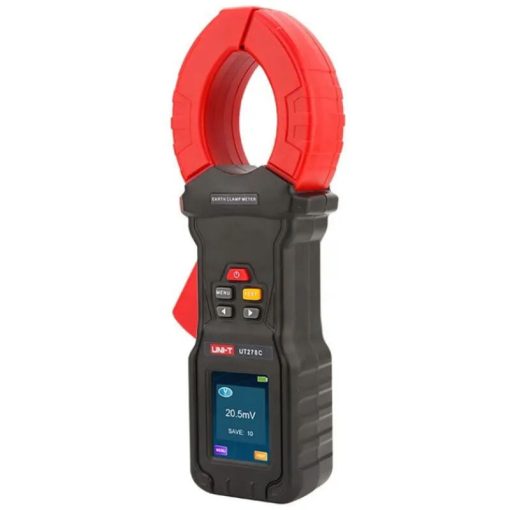

UNI-T UT278C Series Ground Pile Clamp Earth Resistance Tester
UNI-T UT278C is a clamp tester with a color screen for quick, accurate earth resistance, leakage current, and soil resistivity testing, plus USB data transfer.
25,360.00 ج.م
متوفرالكود 3496300117697
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
UNI-T UT278C Series Ground Pile Clamp Earth Resistance Tester
The UNI-T UT278C is a portable clamp-style instrument designed to simplify earth resistance testing on grounding rods, ground grids, and similar installations without needing to disconnect conductors. Encased in a rugged, double-insulated housing, the unit features a hinged jaw that opens to 68 mm, easily clamping around grounding electrodes or parallel conductors. Once clamped, the UT278C injects a small test current and measures the resulting voltage drop to calculate ground resistance, displaying results on a bright 2.4-inch color LCD.
The large screen presents readings clearly and enables intuitive menu navigation, even in bright sunlight or dimly lit environments. Internally, the UT278C’s electronics employ fast-filtering algorithms to minimize interference from nearby live cables, ensuring stable values within one second of measurement. A rechargeable lithium battery pack powers the unit, with real-time battery status shown on-screen; recharging is accomplished via a standard USB port when convenient. The instrument can store up to 500 test records, which can later be uploaded to a PC via USB for reporting and analysis.
Weighing just under 1 kg, the tester balances durability and portability: its reinforced insulation and built-in overload protection safeguard both operator and device in harsh field conditions. In practice, the UT278C provides technicians with a fast, non-intrusive way to verify grounding integrity without additional auxiliary rods or circuit interruptions.
Features:
- 2.4-inch color screen.
- Earth resistance measurement.
- Leakage current measurement.
- Current measurement.
- Grounding voltage measurement.
- Alarm function (visual/audible).
- USB data transfer.
- Built-in rechargeable lithium battery.
- Soil resistivity measurement.
Specifications:
| Category | Specification |
|---|---|
| Model: | UNI-T UT278C |
| Display: | 2.4-inch color LCD (46 × 29 mm) |
| Jaw Size: | 68 mm |
| Measurement Rate: | 1 time/second |
| Power Supply: | Built-in DC 3.7V lithium battery |
| Auto Power Off: | 15 minutes |
| USB Data Transfer: | Supported (upload, save, and print) |
| Data Storage: | 500 sets |
| Weight: | 975 g (including battery) |
| Operating Temperature: | -10°C to 50°C; <80%RH |
| Storage Temperature: | -10°C to 60°C; <70%RH |
| Insulation Resistance: | >20 MΩ (500V between circuit and case) |
| Withstand Voltage: | AC 3700V RMS (between circuit and case) |
| External Magnetic Field: | <40 A/m |
| External Electric Field: | <1 V/m |
| Alarm Function: | Yes |
| Backlight: | Yes |
| Power Consumption: | 750 mA Max |
| Overload Protection: | Yes |
Measurement Ranges:
| Function | Range | Resolution |
|---|---|---|
| Ground Resistance: | 0.00Ω – 2000Ω | — |
| Leakage Current: | 0.000A – 60A | 1 µA |
| 3/4-Wire Resistance: | 0.00Ω – 30KΩ | — |
| Soil Resistivity: | 0.00Ω – 9999KΩ | — |
| Grounding Voltage: | 0 – 600V | — |
Applications:
- Power Distribution Systems.
- Lightning Protection Systems.
- Industrial Equipment.
- Telecommunication Infrastructure.
- Building and Facility Maintenance.
- Soil Resistivity Testing.
- Field Troubleshooting and Commissioning.
Package Include:
- 1× UT278C Ground Pile Clamp Earth Resistance Tester (main unit)
- 1× Test lead set (pair of insulated leads with banana plugs)
- 1× Ground spike (earth rod)
- 1× USB data transfer cable
- 1× User’s manual
- 1× Calibration certificate / Test report
- 1× Carrying case
