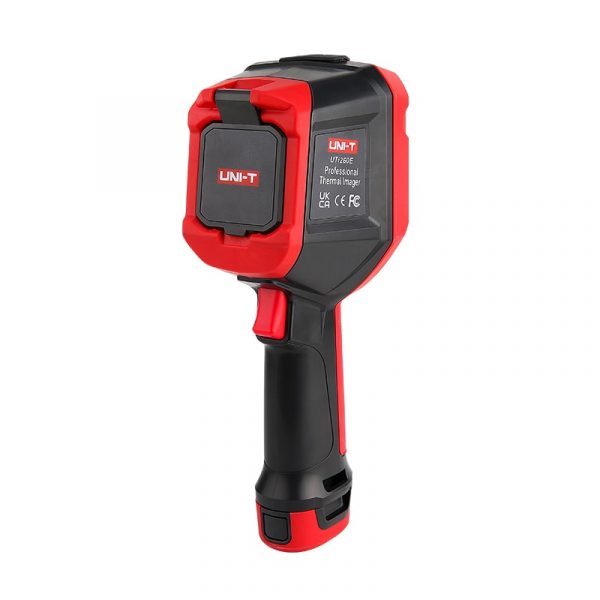

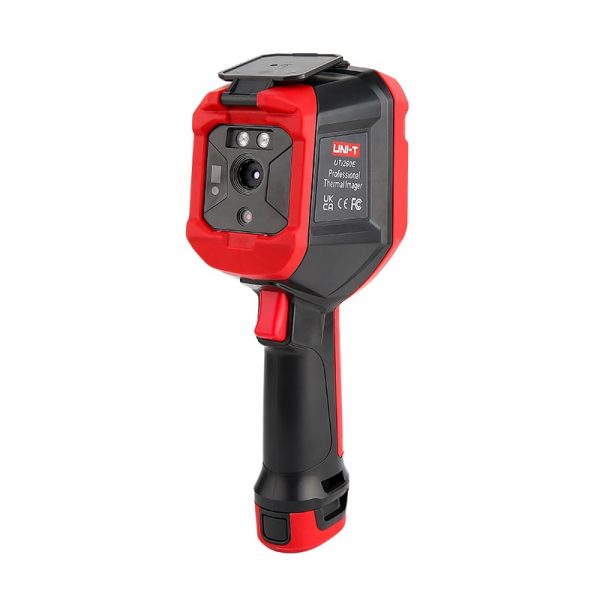

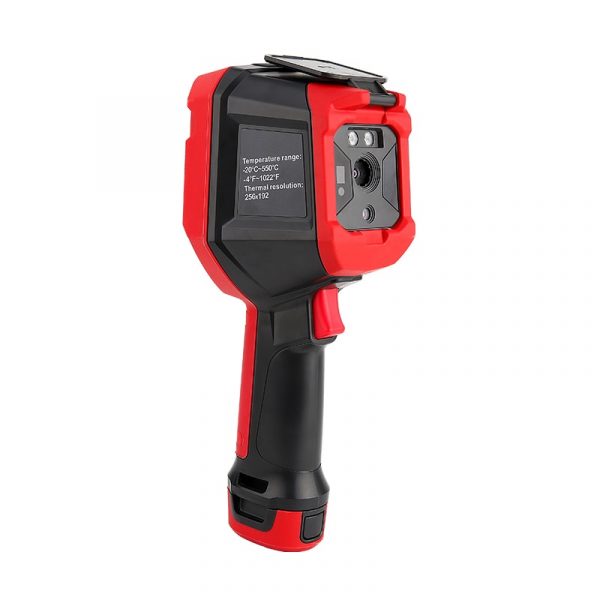

UNI-T UTi260E Heavy Duty Thermal Camera
UNI-T UTi260E Thermal Camera: 256×192 IR resolution, -20°C to 550°C range, 3.5″ IPS display, Wi-Fi, PC software.
43,500.00 ج.م
متوفرالكود 3496300160495
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
UNI-T UTi260E Heavy Duty Thermal Camera
The UNI-T UTi260E Professional Thermal Imager combines infrared thermal imaging with visible light capture for industrial inspection and temperature measurement tasks. It provides a temperature measurement range of -20°C to 550°C and uses a 256×192 infrared sensor with 12µm pixel size. The 3.5-inch IPS display has a 640×480 resolution, while the visible light camera provides 2 million pixels for fusion and documentation.
The camera supports multiple image modes, including thermal imaging, visible light, fusion, and picture-in-picture. Users can add temperature analysis objects such as points, lines, rectangles, and circles, with support for center point temperature display and high/low temperature tracking. It also includes isotherm functions, multiple color palettes, digital zoom, high and low temperature alarms, and QR code support for image classification.
Features
- Industrial infrared thermal imager with -20°C to 550°C temperature measurement range
- 256×192 infrared resolution with 12µm pixel size
- 3.5-inch IPS display with 640×480 resolution
- 2-megapixel visible light camera
- Thermal imaging, visible light, fusion, and picture-in-picture modes
- Center point temperature display and high/low temperature tracking
- Point, line, rectangle, and circle temperature analysis tools
- Up to 6 analysis objects can be added at the same time
- Manual and automatic isotherm functions
- Multiple color palettes: Iron, Rainbow, White Hot, Red Hot, Black Hot, Lava, and High Contrast Rainbow
- High and low temperature alarms with LED and LCD indication
- Detachable 3.7V 5200mAh rechargeable lithium battery pack
- Operating time greater than 3 hours
- Charging time less than 4 hours
- IP54 protection rating and 2m drop resistance
- Chinese and English language support
Specifications
| Brand | UNI-T / UNI-TREND TECHNOLOGY (CHINA) CO., LTD. |
|---|---|
| Model | UTi260E |
| Product Type | Industrial Infrared Thermal Imager |
| Sensor | Uncooled vanadium oxide |
| Infrared Resolution | 256 × 192 (49,152 pixels) |
| Pixel Size | 12 µm |
| Infrared Spectral Bandwidth | 8~14 µm |
| Field of View | 56° × 42.2° |
| IFOV | 3.8 mrad |
| Lens Focal Length | 3.2 mm |
| Focus Mode | Free focus |
| Thermal Sensitivity | <50 mK @25°C |
| Frame Rate | <25 Hz |
| Digital Zoom | 2×, 4× |
| Display | 3.5″ IPS LCD |
| Display Resolution | 640 × 480 |
| Visible Light Camera | 2 million pixels |
| Image Modes | Thermal Imaging, Visible Light, Fusion, Picture-in-Picture |
| Temperature Measurement Range | -20°C~550°C (-4°F~1022°F) |
| Temperature Scale | Low temperature: -20°C~150°C High temperature: 0°C~550°C Manual switch |
| Temperature Measurement Accuracy | -10°C~550°C, at 25°C ambient temperature, ±2°C / ±2% (whichever is greater) |
| Temperature Units | Celsius (default), Fahrenheit, Kelvin |
| Temperature Display | Center point temperature, high/low temperature tracking |
| Temperature Analysis | Point, line, rectangle, circle / areas Up to 6 analysis objects total Maximum 5 points, 1 line, 3 rectangles, 3 circles |
| – | – |
| Color Palettes | Iron, Rainbow, White Hot, Red Hot, Black Hot, Lava, High Contrast Rainbow |
| High/Low Temperature Alarm | Yes, LED alarm and LCD animation alarm Alarm value selectable from -20°C to 550°C |
| Emissivity | 0.95 default, adjustable 0.01~1.00 |
| Parameter Settings | Emissivity, Ambient Temperature, Reflected Temperature, Relative Humidity, Object Distance, Temperature Scale |
| Image Capture Mode | Single shot / Time-lapse auto photo Time-lapse interval: 10s~1000s |
| Image Storage Format | JPG |
| Image Viewing and Editing | Temperature analysis, palette change, remarks, QR code, redact/edit, restore |
| Storage | Micro SD card, maximum 32GB |
| Custom Storage Folder | Select folder before taking pictures |
| Battery | 3.7V 5200mAh rechargeable lithium battery, detachable/removable battery pack |
| Operating Time | >3 hours |
| Charging Time | <4 hours |
| Charging Voltage / Current | 5V/1.5A, 9V/1A, 12V/1A Only for USB charging heads below QC2.0 standard |
| USB Interface | USB Type-C, real-time image and USB disk storage |
| USB Mode | USB storage / USB projection |
| Wi-Fi | Yes, hotspot function, photo download |
| PC Software | PC analysis software with real-time image, photo download and analysis PC screen projection support |
| Mobile APP | Yes, photo download and analysis |
| QR Code | QR code scanning, manual input, image classification |
| LED Lighting | Yes |
| Language | Chinese / English |
| Auto Power Off | Off / 5 min / 10 min / 20 min / 30 min / 45 min / 60 min / 90 min |
| Protection Rating | IP54, 2m drop proof |
| Operating Temperature | 0°C~50°C (32°F~122°F) |
| Storage Temperature | -10°C~60°C (14°F~140°F) |
| Operating Humidity | 10%~95%RH, non-condensing |
| – | – |
| Certifications | CE, FCC |
| – | – |
| – | – |
Applications
- Industrial equipment temperature inspection
- Thermal analysis of components and surfaces
- High and low temperature alarm monitoring
Package Content
- 1 x UNI-T UTi260E Heavy Duty Thermal Camera
- 1 x 32GB Micro SD-card
- 1 x USB Type-C Cable
- 1 x UT-M17 Lithium-ion Battery Pack
- 1 x Carrying Case
