UTD1202C Handheld Oscilloscope 200MHZ 2CH
2-channel, 200 MHz handheld DSO with 1 GS/s sampling, 56 Mpts memory, 100,000-frame hardware recording, 1 Mpt FFT, DVM, and web control.
50,445.00 ج.م
متوفرالكود 3496300145867
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة

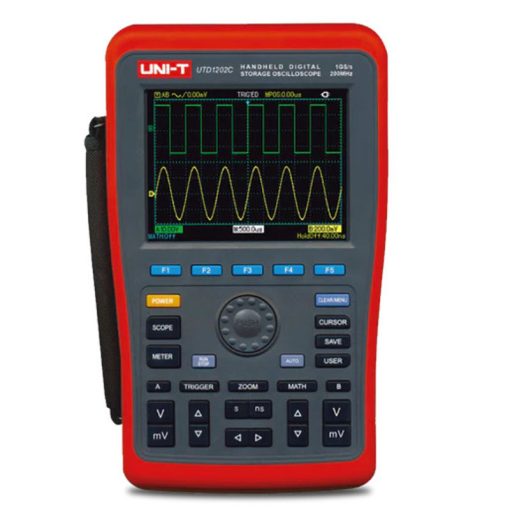

UTD1202C Handheld Oscilloscope 200MHZ 2CH
The UTD1202C is a compact, handheld digital storage oscilloscope offering two channels of 200 MHz analog bandwidth. Incorporating Uni-Trend’s Ultra Phosphor display, it renders up to 256 levels of grayscale to highlight subtle waveform variations and transient anomalies. Each channel samples at 1 GS/s into a 56 Mpt deep memory, enabling detailed captures over extended time spans without sacrificing resolution. A Fast Acquire mode reaches up to 500,000 wfms/s, ensuring even infrequent events are recorded.
Hardware-based waveform recording stores up to 100,000 frames for later review, while an enhanced 1 Mpt FFT allows frequency-domain analysis with adjustable windowing and markers. The 7″, 800 × 480 TFT LCD provides clear visualization, and front-panel jog dials and softkeys simplify navigation. Trigger options span edge, pulse-width, video, slope, runt, over-amplitude, delay, timeout, duration, setup/hold, Nth-edge, and pattern, supplemented by on-board hardware decoding for RS232, I²C, SPI, CAN, and LIN buses. A built-in dual-channel DVM offers AC/DC TRMS measurements, and a 7-digit counter enables precise frequency measurement.
Connectivity includes USB Host/Device, LAN, EXT Trig, and AUX Out (Trig Out/Pass/Fail). Web-based remote control via the integrated HTTP server facilitates networked operation and waveform sharing, making the UTD1202C ideal for field diagnostics, education, and development tasks.
Features:
- 2 analog channels with 200 MHz bandwidth.
- 1 GS/s sampling rate per channel (non-interleaved).
- 56 Mpts memory depth per channel.
- Fast Acquire: 500,000 wfms/s capture rate.
- Hardware recording: up to 100,000 frames.
- Ultra Phosphor 256-level grayscale display.
- RS232, I²C, SPI, CAN, LIN triggering and hardware decoding.
- Dual-channel DVM: AC/DC TRMS measurement.
- 7-digit hardware frequency counter.
- Enhanced 1 Mpt FFT with markers and multiple windows.
- 36 automatic waveform parameters.
- Rich trigger suite: edge, pulse-width, video, slope, runt, over-amp, delay, timeout, duration, setup/hold, Nth-edge, pattern.
- Web-based remote control via built-in HTTP server.
Specifications:
| Category | Parameter | Specification |
|---|---|---|
| Bandwidth & Rise Time | Analog Bandwidth (–3 dB) | 200 MHz |
| Calculated Rise Time (10–90 %, typ.) | ≤ 1.8 ns | |
| Channels & Sampling | Analog Channel Count | 2 |
| Real-Time Sampling Rate | 1 GS/s per channel (non-interleaved) | |
| Sampling Modes | Real-time, Peak Detect, Averaging | |
| Average Sample Rates | 2× to 8192× | |
| Equivalent Sampling Rate | 25 GS/s (interleaved) | |
| Memory Depth (per channel) | 56 Mpts | |
| Waveform Capture Rate | 150 k wfms/s (Normal), 500 k wfms/s (Fast Acquire) | |
| Hardware Recording & Playback | Up to 100,000 frames | |
| Vertical System | Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ∥ 21 pF (±3 pF) | |
| Probe Attenuation Factors | 1×, 10×, 100×, 1000× | |
| Max Input Voltage (1 MΩ) | 400 V DC + Vpeak | |
| Vertical Resolution | 8-bit | |
| Vertical Scale | 5 mV/div to 50 V/div (BNC) | |
| Low-Frequency Response (AC) | ≤ 10 Hz (±3 dB) | |
| Horizontal System | Time Base Scale | 2 ns/div to 50 s/div (200 MHz models) |
| Sampling Rate & Delay Accuracy | ± 50 ppm (any Δt ≥ 1 ms) | |
| ΔT Measurement Accuracy | Single: ±(1 sample + 50 ppm × reading + 0.6 ns)Avg ≥16: ±(1 sample + 50 ppm × reading + 0.4 ns) | |
| Trigger System | Trigger Types | Edge, Pulse Width, Video, Slope, Runt, Over-ampl., Delay, etc. |
| Trigger Sensitivity | Edge: ≤ 1 div (≥ 20 ns rise/fall)Pulse Width: 40 ns to 6.4 s | |
| Trigger Level Range | ±5 div from center (±4 div for ≤ 0.3 div × V/div) | |
| Trigger Holdoff Range | 40 ns to 1.5 s | |
| Trigger Coupling | DC, AC, HF Reject (≥40 kHz), LF Reject (≤40 kHz), Noise Suppression | |
| Analysis & Decoding | FFT | 1 Mpts max; multiple windows; Vrms/dBV scales |
| Serial-Bus Decode (optional) | RS232, I²C, SPI, CAN, LIN (hardware decoding) | |
| Multimeter Functions | Digital Voltmeter (DVM) | AC/DC TRMS, 4-digit, measures R, V, I, C |
| Hardware Frequency Counter | 7-digit; Accuracy depends on range (1–2% + 5 digits) | |
| Display | Screen | 5.7″, 320×240 TFT LCD, 24-bit color |
| Waveform Persistence | Min to Infinite (50 ms – 20 s steps) | |
| Interfaces | Ports | USB Host (2.0), USB Device, LAN, EXT Trig, AUX Out (Trig Out/Pass-Fail) |
| Power Supply | AC Input Voltage | 100–240 VAC ± 10% |
| Frequency | 45–440 Hz | |
| Power Consumption | < 20 VA | |
| Battery Operation | 2 h (UTD1202C model, built-in rechargeable) | |
| Environmental | Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | −20 °C to +60 °C | |
| Operating Humidity | ≤ 90% RH (≤35 °C); ≤ 60% RH (35–40 °C) | |
| Operating Altitude | ≤ 3000 m | |
| Mechanical | Dimensions (W×H×D) | 268 × 168 × 60 mm |
| Weight (Net/Gross) | 1.8 kg / 4.5 kg | |
| Standards & Safety | IP Rating | IP2X |
| Safety & EMC | GB4793, IEC 61010-1, CISPR 11 Class B, IEC 61000, CAT II 600 V |
Applications:
- Communications.
- Semiconductors.
- Computers.
- Meter & Instruments.
- Aerospace & Defense.
- Industrial Electronics.
- Consumer Electronics.
- Automotive Electronics.
- Field Maintenance.
- R&D & Education.
Package Contents:
- 1x Power cord
- 1x USB data cable
- 2x Passive probes
