YGW40N120T3 IGBT Power Transistor 1200V 40A TO-247
YGW40N120T3 1200V, 40A trench field-stop IGBT in TO-247 with low VCE(sat), 10 μs short-circuit withstand, and integrated fast recovery diode for converters.
75.00 ج.م
متوفرالكود 3496300139293
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة

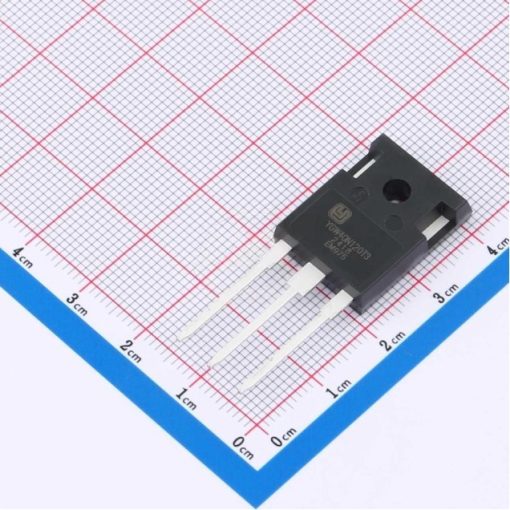

YGW40N120T3 IGBT Power Transistor 1200V 40A TO-247
The YGW40N120T3 is a high-voltage trench field-stop IGBT designed for power conversion applications. Rated for a collector-emitter breakdown of 1200 V and a continuous collector current of 40 A (with higher short-term/current ratings under controlled thermal conditions), it targets demanding industrial environments where both blocking voltage and current capability are required. The device is offered in a TO-247 package for ease of mounting and thermal handling, making it suitable for discrete module builds and repair tasks.
Built on Trench-Stop technology, the YGW40N120T3 emphasizes tight parameter distribution and rugged, temperature-stable behavior. It provides a relatively low VCE(sat) at full rated current and shows a positive temperature coefficient in saturation voltage, which aids safe paralleling. The device also offers enhanced avalanche capability and a specified short-circuit withstand time (10 μs), important for protecting systems against transient faults.
Switching characteristics are optimized for medium-speed power conversion: gate charge and switching energies are specified at high voltage and current conditions, enabling designers to estimate drive losses and thermal budget. The integrated anti-parallel diode exhibits solid forward characteristics and controlled reverse-recovery behavior, making the part appropriate for frequency converters, motor drives, and other inverter applications where conduction and recovery performance matter.
Features:
- High breakdown voltage up to 1200 V.
- Trench-Stop technology for tight parameter distribution and high ruggedness.
- Short circuit withstand time: 10 μs.
- Low VCE(sat) for reduced conduction losses.
- Positive temperature coefficient in VCE(sat) facilitates safe paralleling.
- Enhanced avalanche capability.
Specifications:
| Parameter | Specification |
|---|---|
| Model / Package: | YGW40N120T3 – TO-247 |
| Collector-Emitter Breakdown Voltage (BVCES): | 1200 V |
| Collector Current (IC): | 40 A (TC = 100°C); DC up to 80 A at TC = 25°C (thermal limited) |
| Pulsed Collector Current (ICM): | 160 A (VGE = 15 V, tp limited by Tjmax) |
| VCE(sat): | 1.75 V (IC = 40 A, VGE = 15 V, Tj = 25°C); ~2.35 V at 150°C |
| Gate threshold (VGE(th)): | 5.2 – 6.5 V |
| Continuous Gate-Emitter Voltage: | ±20 V (transient ±30 V) |
| Short Circuit Withstand Time: | 10 μs (VGE = 15 V, VCE ≤ 600 V) |
| Power Dissipation (Tj = 25°C): | 416 W |
| Operating Junction Temperature (Tj): | −40 … +150 °C |
| Thermal Resistance, junction-to-case (IGBT): | 0.3 K/W |
| Diode forward voltage (VFM): | ~1.8 V (IF = 40 A) |
| Reverse recovery time (Trr): | ~350 ns (IF = 40 A, VR = 600 V, di/dt = 600 A/μs) |
| Gate charge (QG): | ~260 nC (VCC = 960 V, IC = 40 A, VGE = 15 V) |
| Input capacitance (Ciss): | ~6100 pF (VCE = 25 V, f = 1 MHz) |
| Switching times (inductive load): | td(on) ~80 ns; tr ~50 ns; td(off) ~180 ns; tf ~80 ns (conditions vary) |
Pinout Diagram:
Footprint Diagram:
Applications:
- Solar Power Inverters.
- Uninterruptible Power Supplies (UPS).
- Motor Drives and Industrial Controls.
- Welding Equipment.
- Induction Heating Systems.
- Switch-Mode Power Supplies (SMPS).
- Electric Vehicle Charging Stations.
Package Contents:
- 1x YGW40N120T3 IGBT Power Transistor 1200V 40A TO-247.
Datasheet
