2SC3748 NPN Power Transistor 60V 10A TO-220F
The 2SC3748 is a Silicon NPN Power Transistor housed in a TO-220F package. this high-performance device features a low saturation voltage, excellent current dependence of , and fast switching speeds, making it ideal for robust power amplification and switching duties.
Features
- Low Saturation Voltage
- Excellent Linearity
- High-Speed Performance

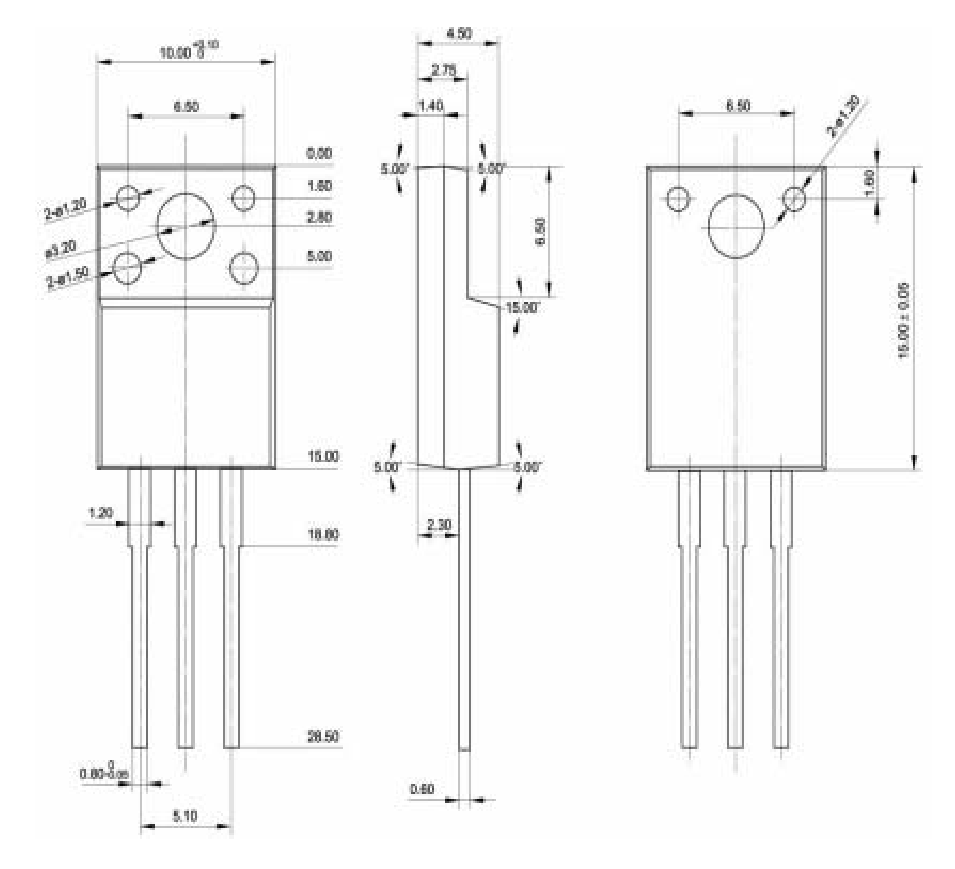

- Isolated Package
Specifications
Absolute Maximum Ratings (Ta = 25°C)
| Symbol | Parameter | Conditions | Value | Unit |
|---|---|---|---|---|
| VCBO | Collector-base voltage | Open emitter | 80 | V |
| VCEO | Collector-emitter voltage | Open base | 60 | V |
| VEBO | Emitter-base voltage | Open collector | 5 | V |
| IC | Collector current | — | 10 | A |
| ICM | Collector current-peak | — | 12 | A |
| Pc | Collector dissipation | TC = 25°C | 30 | W |
| Tj | Junction temperature | — | 150 | °C |
| Tstg | Storage temperature | — | -55 ~ 150 | °C |
Electrical Characteristics (Tj = 25°C unless otherwise specified)
| Symbol | Parameter | Conditions | Min | Max | Unit |
|---|---|---|---|---|---|
| V(BR)CBO | Collector-base breakdown voltage | IC = 1mA; IE = 0 | 80 | — | V |
| V(BR)CEO | Collector-emitter breakdown voltage | IC = 1mA | 60 | — | V |
| V(BR)EBO | Emitter-base breakdown voltage | IE = 1mA; IC = 0 | 5 | — | V |
| VCEsat | Collector-emitter saturation voltage | IC = 5A; IB = 0.25A | — | 0.4 | V |
| ICBO | Collector cut-off current | VCB = 40V; IE = 0 | — | 100 | μA |
| IEBO | Emitter cut-off current | VEB = 4V; IC = 0 | — | 100 | μA |
| hFE | DC current gain | IC = 1A; VCE = 2V | 70 | 280 | — |
| fT | Transition frequency | IC = 1A; VCE = 5V | 100 (Typ.) | — | MHz |
Switching Times
| Symbol | Parameter | Conditions | Max | Unit |
|---|---|---|---|---|
| ton | Turn-on time | VCC = 20V; IC = 5A; IB1 = –IB2 = 0.25A; RL = 4Ω |
0.1 | μs |
| tstg | Storage time | 0.5 | μs | |
| tf | Fall time | 0.1 | μs |
Applications
- High-speed switching applications
- Automotive/Car-use inductance drivers and lamp drivers
- Inverter drivers and converter circuits (strobes, camera flashes, FLT lighting circuits)
- Power amplifiers
Package Content
- 1 x 2SC3748 NPN Power Transistor 60V 10A TO-220F
