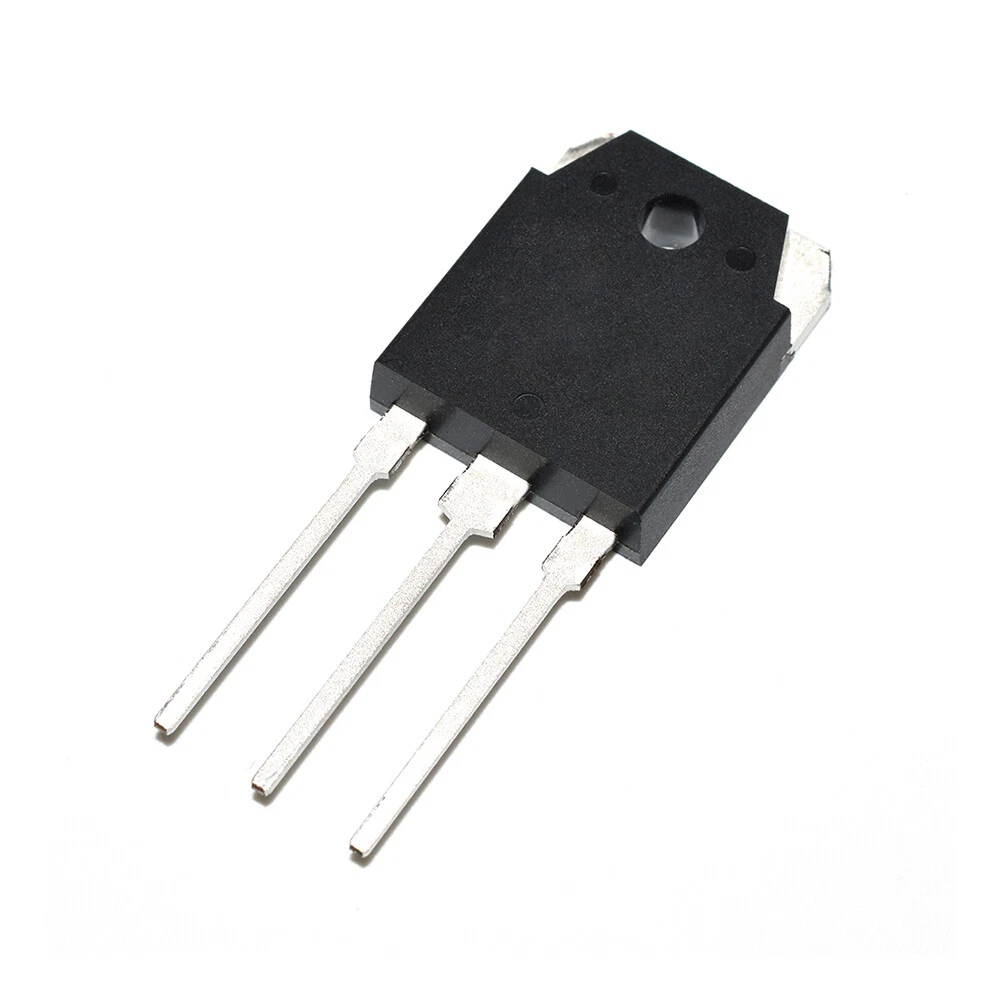

2SK2258 N-Channel MOSFET Transistor 1000V 4A TO-3PN
2SK2258 N-channel power MOSFET, 1000V 4A 100W, standard gate drive, TO-3PN. 100% avalanche tested for reliable operation.
45.00 EGP
Buy Now2SK2258 N-Channel MOSFET Transistor 1000V 4A TO-3PN
The 2SK2258 is a high-performance N-Channel power MOSFET transistor designed for switching power supplies, DC-DC converters, motor control circuits, and industrial power switching applications. The transistor is manufactured in a TO-220 package that provides reliable thermal dissipation and efficient high-power operation for through-hole electronic circuits and power electronics systems.
Features:
- TO-3PN packaging for effective thermal management.
- High speed switching capability.
- Standard level gate drive for easy integration.
- Easy to use with straightforward application.
- 100% avalanche tested for enhanced ruggedness.
- Minimum lot-to-lot variations for robust device performance and reliable operation.
- High voltage capability with 1000V drain-source breakdown voltage.
- Wide operating temperature range from -55°C to +150°C.
Specifications:
| Parameter | Value |
|---|---|
| Transistor Type | N-Channel MOSFET |
| Drain-Source Voltage (VDSS) | 1000V |
| Gate-Source Voltage (VGSS) | ±30V |
| Continuous Drain Current (ID) | 4A |
| Pulsed Drain Current (IDM) | 16A |
| Total Power Dissipation (PD) | 100W |
| Drain-Source On-State Resistance (RDS(on)) | 2.7Ω (Typ.) / 3.6Ω (Max.) |
| Drain-Source Breakdown Voltage (BVDSS) | 1000V (Min.) |
| Gate Threshold Voltage (VGS(th)) | 2.5V (Min.) / 3.5V (Max.) |
| Drain-Source Leakage Current (IDSS) | 500μA (Typ.) / 1000μA (Max.) at Tj=25°C |
| Gate-Source Leakage Current (IGSS) | ±0.1μA (Typ.) |
| Diode Forward Voltage (VSDF) | 1.65V (Typ.) |
| Channel-to-Case Thermal Resistance (Rth(ch-c)) | 0.83°C/W |
| Channel-to-Ambient Thermal Resistance (Rth(ch-a)) | 40°C/W |
| Operating Junction Temperature (Tj) | -55°C to +150°C |
| Storage Temperature (Tstg) | -55°C to +150°C |

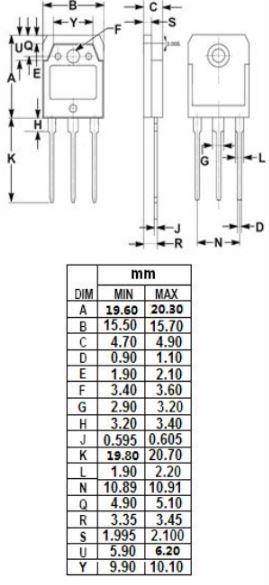

| Package Type | TO-3PN |
| Mounting Style | Through-Hole |
Pin Configuration:
Applications:
- Power supply designs.
- Switching applications.
- High-voltage power conversion.
- Switch mode power supplies and SMPS designs.
- DC-DC converter circuits.
- High-voltage power management systems.
Package Include:
1x 2SK2258 N-Channel MOSFET Power Transistor 1000V 4A TO-3PN.
