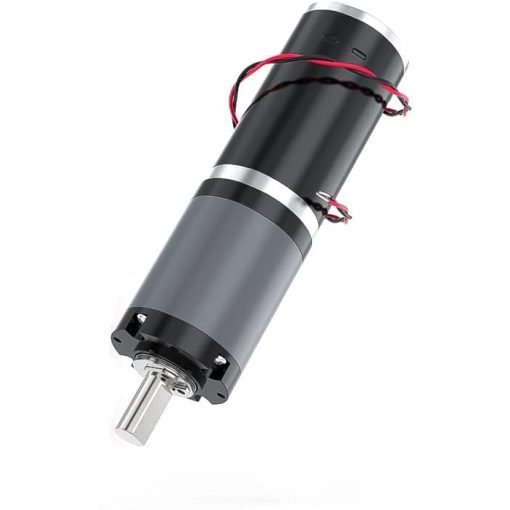

32GP-31ZY High Torque Planetary Reduction DC Motor 12V 30RPM with Mount Bracket
The 32GP-31ZY High Torque Planetary Reduction DC Motor 12V 30RPM with Mount Bracket is a compact and powerful geared motor designed for applications requiring high torque, low speed, and smooth operation. It combines a high-quality brushed DC motor with a precision planetary gearbox, offering better torque transmission, higher efficiency, and lower backlash compared to conventional spur gear motors.
Features:
- High torque planetary reduction DC motor.
- Operating voltage of 12V DC.
- Output speed of 30RPM.
- Precision metal planetary gearbox.
- Low backlash and smooth operation.
- Clockwise and counterclockwise reversible rotation.
- High transmission efficiency.
Specifications:
| Parameter | Details |
|---|---|
| Product Type | Planetary Gear DC Motor |
| Model | 32GP-31ZY |
| Motor Type | Brushed DC Motor |
| Gear Type | Planetary Gearbox |
| Rated Voltage | 12VDC |
| Rated Speed | 30RPM |
| Reduction Ratio | Approx. 262:1 |
| Rated Torque | 34Kg.cm |
| Stall Torque | 124Kg.cm |
| Rated Power | 21.6W |
| Rated Current | 1.8A |
| No Load Current | 0.45A |
| Stall Current | 5A |
| Rotation Direction | CW / CCW Reversible |
| Cable length | 20cm |
| Output Shaft Type | D Shape Shaft |
Applications:
- Robot cars and mobile robots.
- Robotic arms.
- Conveyor systems.
- Smart locks.
- Automatic curtains.
- Automatic doors.
- Positioning mechanisms.
- Solar tracking systems.
- DIY automation projects.
- Industrial control systems.
Package Include:
- 1x 32GP-31ZY High Torque Planetary Reduction DC Motor 12V 30RPM.
- 1x Matching Metal Mounting Bracket.
- 4x Mounting Screws
