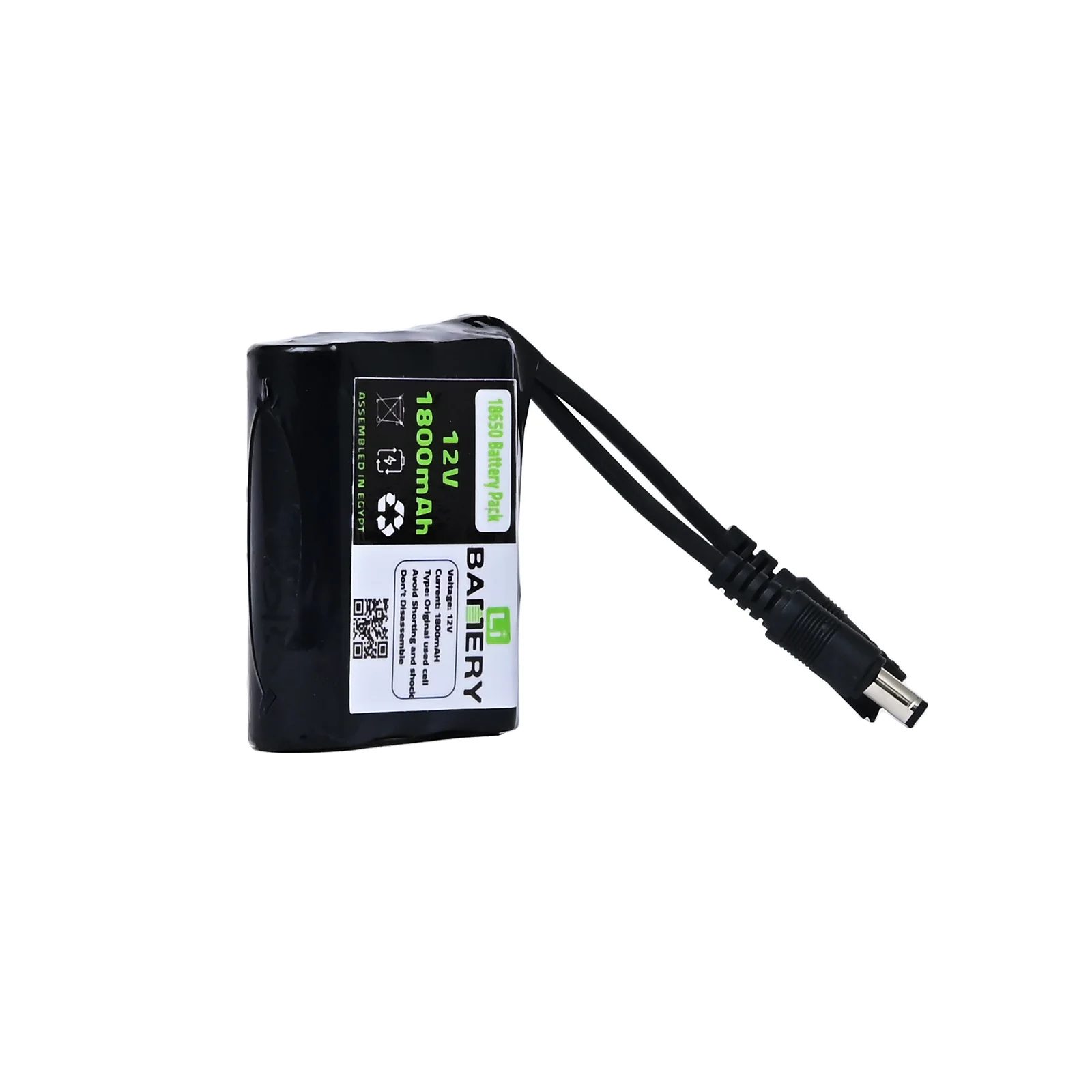

3S-1P 18650 Rechargeable Li-ion Battery Pack 12V 1800mAh

3S-1P 18650 Rechargeable Li-ion Battery Pack 12V 1800mAh

The 3S-1P 18650 Rechargeable Li-ion Battery Pack 12V 1800mAh is a compact and efficient power solution, delivering a nominal voltage of 12V and a capacity of 1800mAh. Configured with three 18650 lithium-ion cells connected in series (3S) and a single parallel group (1P), this battery pack provides stable voltage output and reliable energy storage for a variety of portable and low-power applications. Its lightweight and slim design makes it ideal for use in LED lighting systems, small robotics, portable electronics, and backup power supplies. With built-in protection circuitry (optional depending on the pack), it guards against overcharging, over-discharging, and short circuits, enhancing safety and battery lifespan. This battery pack is rechargeable, eco-friendly, and offers a good balance of performance and portability for everyday electronics and DIY projects.

Features:

• High Energy Density where Compact design with excellent power-to-size ratio.
• Stable Voltage Output where 12V nominal output suitable for a wide range of electronic applications.
• Rechargeable where Long cycle life with low self-discharge for extended use.
• Lightweight & Portable where Ideal for mobile and space-constrained applications.
• Eco-Friendly where Reusable battery reduces environmental impact compared to disposable batteries.
• Low Maintenance where No memory effect; can be charged and discharged at any time.

Specifications:

• Battery Type: 3S-1P Li-ion Battery
• Chemistry: Lithium-ion
• Recharging Availability: Rechargeable
• Size:18650
• Configuration: 3 Series, 1 Parallel (3S1P)
• Capacity: 1800mAh
• Nominal Voltage: 12V
• Actual Voltage: 11V
• Charging Voltage (max): 12.6V
• Discharge Cut-off Voltage: 9.0V
• Max Continuous Discharge Current: ~1.8A
• Discharge Current: Tested for 500mA, 1A, 2A
• Charging Method: CC/CV (Constant Current/Constant Voltage)
• Cycle Life: 500 cycles
• Dimensions: 68mm x 56mm x 22mm
• Operating Temperature:
  • Charge: 0°C to 45°C
  • Discharge: -20°C to 60°C

Applications:

• Portable LED Lighting Systems.
• DIY Electronics Projects & Prototyping.
• Small Robotics & RC Models.
• Surveillance Cameras & Security Devices.
• Medical & Laboratory Devices (Low-Power).
• Wireless Communication Equipment.
• Rechargeable Backup Power Supply.
• Portable Fans, Speakers & Gadgets.
• Electric Locks & Smart Access Systems.
• Solar-Powered Systems.

Warning:

• Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.

Package Contents:

• 1 X  3S-1P 18650 Rechargeable Li-ion Battery Pack 12V 1800mAh
