The 74LS244 buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fan out outputs and can be used to drive terminated lines down to 133Ω.
Features:-
- 3-STATE outputs drive bus lines directly
- PNP inputs reduce DC loading on bus lines
- Hysteresis at data inputs improves noise margins
- Typical IOL (sink current) 24 mA
- Typical IOH (source current) −15 mA

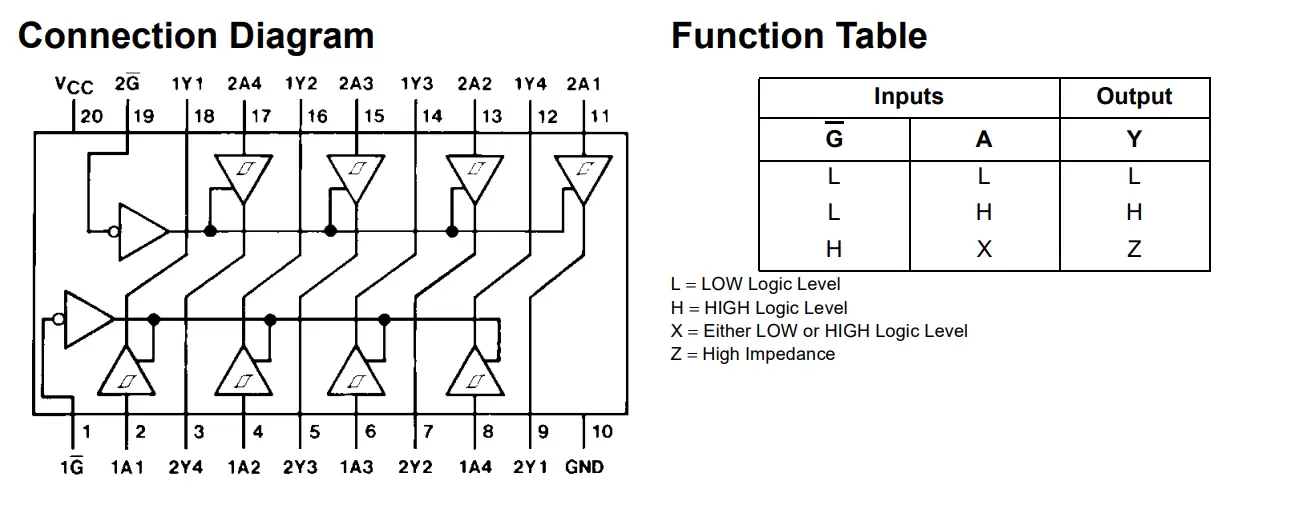

74LS244 Pin Description
| Pin No | Pin Name | Description |
| 1 | 1G’ | Channel 1 output enable |
| 2 | 1A1 | Channel 1, (A) side 1 |
| 3 | 2Y4 | Channel 2, Y side 4 |
| 4 | 1A2 | Channel 1, (A) side 2 |
| 5 | 2Y3 | Channel 2, Y side 3 |
| 6 | 1A3 | Channel 1, (A) side 3 |
| 7 | 2Y2 | Channel 2, Y side 2 |
| 8 | 1A4 | Channel 1, (A) side 4 |
| 9 | 2Y1 | Channel 2, Y side 1 |
| 10 | GND | Ground |
| 11 | 2A1 | Channel 2, (A) side 1 |
| 12 | 1Y4 | Channel 1, Y side 4 |
| 13 | 2A2 | Channel 2, (A) side 2 |
| 14 | 1Y3 | Channel 1, Y side 3 |
| 15 | 2A3 | Channel 2, (A) side 3 |
| 16 | 1Y2 | Channel 1, Y side 2 |
| 17 | 2A4 | Channel 2, (A) side 4 |
| 18 | 1Y1 | Channel 1, Y side 1 |
| 19 | 2G’ | Channel 2 output enable |
| 20 | VCC | Positive Supply |
Specifications:-
| Type | Description |
| Category | Integrated Circuits (ICs)
Logic Buffers, Drivers, Receivers, Transceivers |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current – Output High, Low | 15mA, 24mA |
| Voltage – Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP |
