80N10 N-Channel MOSFET Transistor 100V 100A TO-220
80N10 is a high-current N-channel power MOSFET commonly used for power switching, motor control, DC-DC converters, inverters, and other high-current electronic applications.
30.00 EGP
In stockSKU 3496300156528
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

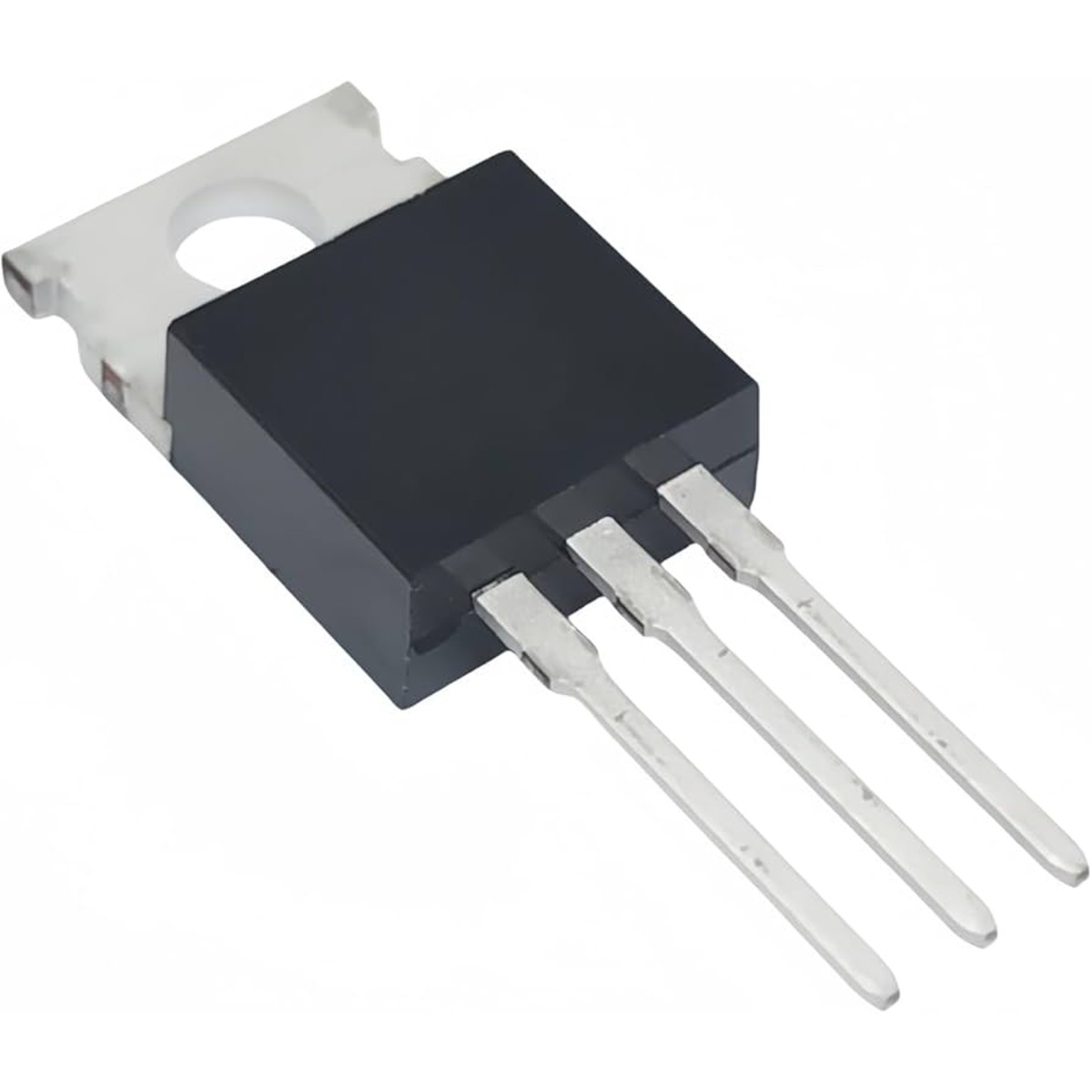

80N10 N-Channel MOSFET Transistor 100V 100A TO-220
The 80N10 is an N-channel TrenchFET® power MOSFET designed for high-current switching applications. According to the supplied datasheet, it has a 100 V drain-source voltage rating and can handle up to 100 A continuous drain current at TC = 25°C, making it suitable for circuits that require high current capability with low conduction losses. Its maximum junction temperature is 175°C, providing a wide operating temperature range.
The device features a very low RDS(on) of 8.5 mΩ at VGS = 10 V and ID = 30 A, while the specified resistance is 15 mΩ at VGS = 6 V and ID = 20 A. It is supplied in a TO-220AB package with three terminals: Gate, Drain, and Source. The datasheet also specifies a ±20 V gate-source voltage rating and a 300 A pulsed drain-current rating.
Features:
- N-channel power MOSFET.
- TrenchFET® technology.
- High-current handling capability.
- Low on-state resistance.
- 175°C maximum junction temperature.
- High pulsed drain-current capability.
- High avalanche-current capability.
- RoHS compliant.
- TO-220AB through-hole package.
Specifications:
| Parameter | Value |
|---|---|
| MOSFET Type | N-Channel |
| Technology | TrenchFET® |
| Drain-Source Voltage (VDS) | 100 V |
| Gate-Source Voltage (VGS) | ±20 V |
| Continuous Drain Current (ID) @ TC = 25°C | 100 A |
| Continuous Drain Current (ID) @ TC = 125°C | 75 A |
| Pulsed Drain Current (IDM) | 300 A |
| Avalanche Current (IAS) | 75 A |
| Single Pulse Avalanche Energy (EAS) | 280 mJ |
| Maximum Power Dissipation | 250 W |
| Gate Threshold Voltage | 2–4 V |
| RDS(on) @ VGS = 10 V, ID = 30 A | 8.5 mΩ |
| RDS(on) @ VGS = 6 V, ID = 20 A | 15 mΩ |
| RDS(on) @ 125°C | 20 mΩ |
| RDS(on) @ 175°C | 30 mΩ |
| Total Gate Charge | 105 nC typ. / 160 nC max. |
| Input Capacitance (Ciss) | 6550 pF |
| Output Capacitance (Coss) | 665 pF |
| Reverse Transfer Capacitance (Crss) | 265 pF |
| Operating Junction Temperature | -55°C to +175°C |
| Package | TO-220AB |
| Number of Pins | 3 |
Pinout:
| Pin | Name | Function |
|---|---|---|
| 1 | Gate (G) | Controls MOSFET switching |
| 2 | Drain (D) | Main current terminal |
| 3 | Source (S) | Main current return terminal |
Applications:
- DC-DC converters.
- Power supplies.
- Motor controllers.
- Battery-powered equipment.
- Inverters.
- High-current switching circuits.
- Automotive power electronics.
- Power management circuits.
Package Included:
- 1 × 80N10 N-Channel MOSFET Transistor TO-220AB.
