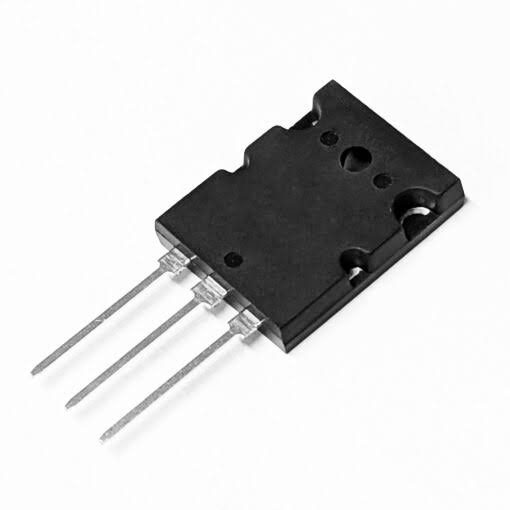

80N100 MOSFET Transistor 1000V 80A
The 80N100 is a high-power N-channel MOSFET designed for applications that require high voltage, high current, and fast switching performance. Its low on-state resistance and excellent switching characteristics make it suitable for power management systems where efficiency and reliability are essential.
This MOSFET is widely used in industrial equipment, DC-DC converters, inverters, battery charging systems, uninterruptible power supplies, and motor control circuits. The through-hole package provides effective heat dissipation and simplifies installation in high-power electronic designs.
Features:
- N-channel MOSFET design.
- High-voltage switching capability.
- High-current handling performance.
- Fast switching characteristics.
- Low on-state resistance.
- Suitable for high-power applications.
- Excellent thermal performance.
- Through-hole package for easy mounting.
- Designed for industrial and commercial applications.
- Reliable operation under demanding conditions.
Specifications:
| Specification | Value |
|---|---|
| Transistor Type | N-Channel MOSFET |
| Part Number | 80N100 |
| Drain-Source Voltage (VDS) | 1000V |
| Continuous Drain Current (ID) | 80A |
| Gate-Source Voltage (VGS) | ±30V |
| Power Dissipation | 400W |
| Package Type | TO-247 |
| Mounting Type | Through-Hole |
| Operating Temperature | -55°C to +150°C |
Not: This Product is Replacement
Pinout:
| Pin | Description |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
Applications:
- Switching power supplies.
- Power inverters.
- Motor control circuits.
- Battery charging systems.
- DC-DC converters.
- Industrial automation equipment.
- UPS systems.
- High-power switching circuits.
- Solar power systems.
- Electronic repair and maintenance.
Package Includes:
- 1x 80N100 MOSFET Transistor 1000V 80A.
