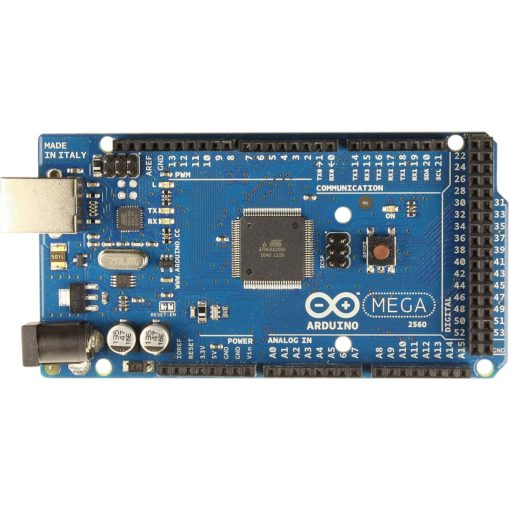

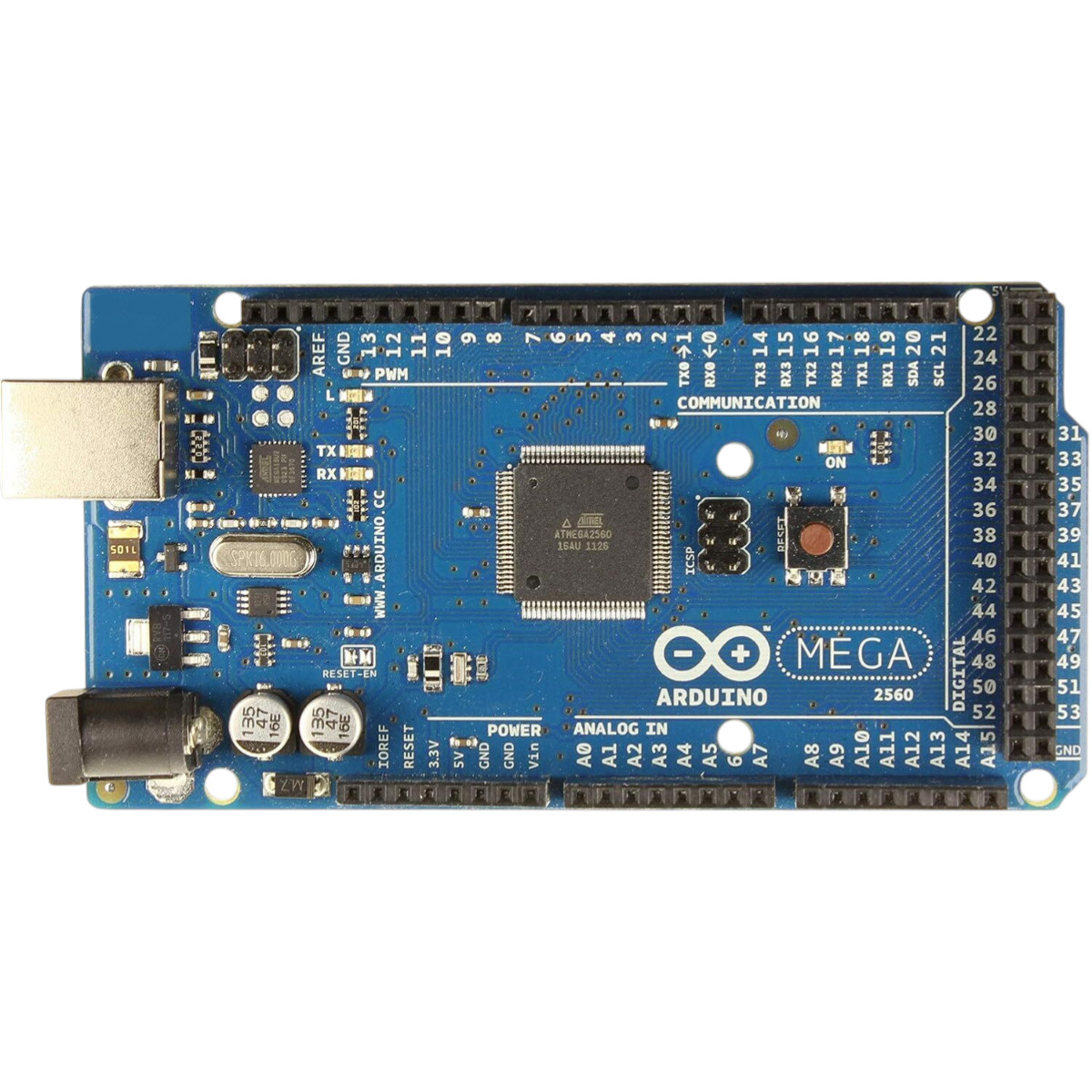

Arduino MEGA 2560 Rev3
The Arduino Mega 2560 is centered around the ATmega2560 microcontroller, providing a robust platform for demanding sketches that exceed the memory limits of smaller boards. It features 54 digital I/O pins and 16 analog inputs, allowing for the simultaneous control of multiple motors, sensors, and displays.
Features:
- High Pin Count.
- Expanded Memory.
- Quad Hardware Serial.
- ATmega16U2 Chip.
- Shield Compatibility.
Specifications:
| Component | Specification |
| Microcontroller: | ATmega2560 |
| USB-Serial Processor: | ATmega16U2 |
| Operating Voltage: | 5V |
| Input Voltage (Recommended): | 7–12V |
| Input Voltage (Limit): | 6–20V |
| Digital I/O Pins: | 54 (15 provide PWM output) |
| Analog Input Pins: | 16 |
| DC Current per I/O Pin: | 20 mA |
| Flash Memory: | 256 KB (8 KB used by bootloader) |
| SRAM: | 8 KB |
| EEPROM: | 4 KB |
| Clock Speed: | 16 MHz |
Applications:
- 3D Printers.
- Robotics.
- Home Automation.
- Data Logging & Sensor Networks.
- Industrial Control & Prototyping.
Package Content:
- 1x Arduino MEGA 2560 Rev3
