Arduino Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board
The Arduino Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board is a compact, high-performance development board based on the ATmega2560-16AU microcontroller. Designed for advanced electronics projects, it offers 256 KB of flash memory, 8 KB of SRAM, and 86 general-purpose I/O pins. Despite its small size, it delivers the full power of the Arduino Mega 2560, making it ideal for space-constrained applications. The board uses the CH340G USB-to-serial converter, ensuring stable and reliable communication with your PC via the Arduino IDE.
Features:
- The Mega Pro Embed CH340G / ATmega2560 board adopts an ATmega2560 microcontroller and a USB-UART CH340 adapter.
- The board is compatible with Mega 2560.
- The board has a compressed form factor of 38X54mm which is an excellent solution for enterprise development on the basis of ATmega2560.
- The functions of Mega Pro are the same as that of the Mega 2560. Although it is an Embed board, it is as stable as the Mega Board. It uses the original chip, and there are also high quality 16MHz quartz resonators on the board.
- There is a Micro USB connector on the board that allows you to connect the micro-controller to the computer via the USB-UART CH340 adapter (driver installation may be required).
- Download drivers: Windows, Linux, Mac, Android.
- The board can be powered directly from the Micro-USB connector, or via the corresponding contact on the board (Vin). The voltage regulator used operates in the range from 6 to 9V DC.
- The maximum output current at 5V is about 800mA, while at 3.3V it is about 800mA.
- The voltage regulator allows up to 18V to be used as an input value, however, we do not recommend exceeding the above recommended values, as this can lead to excessive heat and damage to the device.

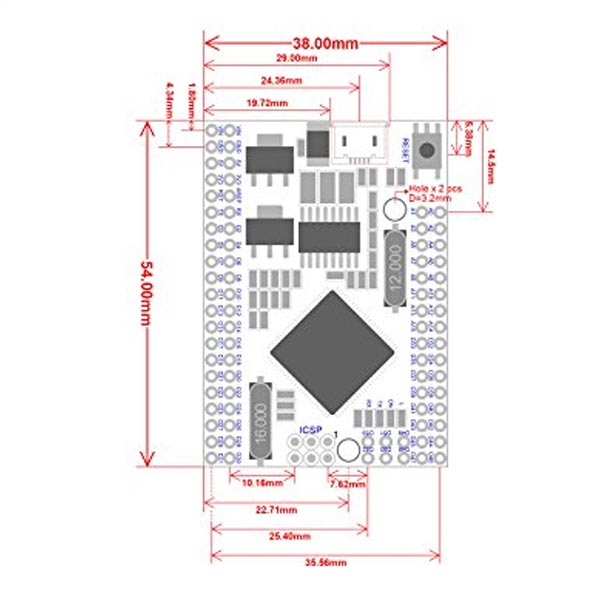

Dimensions:
Specifications:
| Microcontroller | ATmega2560 |
| USB-TTL converter | CH340 |
| Power output | 5V-800mA |
| Power IN. | 5V |
| Power IN. VIN / DC Jack | 9-12V |
| Power consumption | 5V 220mA |
| Logic Level | 5V |
| USB Micro | USB |
| Clock Frequency | 16MHz |
| Working Supply Voltage | 5V |
| Digital I / O | 54 |
| Analog I / O | 16 |
| Memory Size | 256kb |
| Data RAM Type / Size | 8Kb |
| Data ROM Type / Size | 4Kb |
| Interface Type | ISS |
| Operating temperature | −40С ° / + 85С ° |
| Length × Width | 38 × 54mm |
Applications:
- 3D Printers (like RepRap).
- Robotics Platforms.
- CNC Machines / Plotters.
- Home Automation Systems.
- Data Acquisition Systems.
- Large LED Matrix or Display Projects.
- Game Controllers / Consoles.
- Smart Agriculture Projects.
- Security & Access Control.
- Educational & Prototyping Projects.
Package Includes:
- 1 X Mega2560 Pro ATMEGA2560-16AU USB CH340G Intelligent Electronic Development Board
- 1 X 21 Pin Headers
- 1 X 16 Pin Headers
- 1 X 3 Pin Headers
