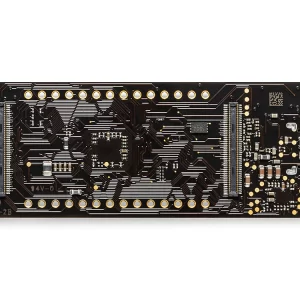

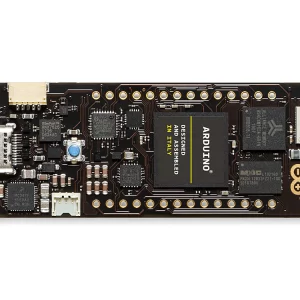

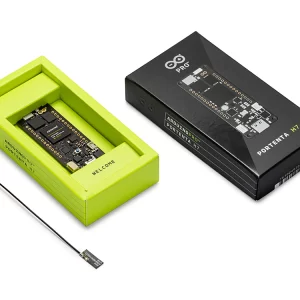

Arduino PORTENTA H7 ABX00042 (Original Made In ITALY)

2,850.00 EGP

Purchase this product now and earn 285 Points!
Buy Now
Availability: In Stock
SKU:7630049202252

Overview

Portenta H7 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden?

Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer.

Portenta can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface.

Use Portenta when performance is key, among other cases, we envision it to be part of:

  • High-end industrial machinery
  • Laboratory equipment
  • Computer vision
  • PLCs
  • Industry-ready user interfaces
  • Robotics controller
  • Mission-critical devices
  • Dedicated stationary computer
  • High-speed booting computation (ms)

Two Parallel Cores

H7’s main processor is the dual core STM32H747 including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

  • Arduino sketches on top of the Arm® Mbed™ OS
  • Native Mbed™ applications
  • MicroPython / JavaScript via an interpreter
  • TensorFlow™ Lite

Graphics Accelerator

Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the STM32H747 processor’s on-chip GPU, the Chrom-ART Accelerator™. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder.

A new standard for pinouts

The Portenta family adds two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta board to the one suiting your needs.

On-board Connectivity

The onboard wireless module allows to simultaneously manage WiFi and Bluetooth® connectivity. The WiFi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA and can handle up to 65 Mbps transfer rate. Bluetooth® interface supports Bluetooth Classic and Bluetooth® Low Energy.  It is also possible to expose a series of different wired interfaces like UART, SPI, or I2C, both through some of the MKR styled connectors, or through the new Arduino industrial 80 pin connector pair. The 80-pin connector pair provides additional features including Ethernet.

USB-C Multipurpose Connector

The board’s programming connector is a USB-C port that can also be used to power the board, as a USB Hub, to connect a DisplayPort monitor, or to deliver power to OTG connected devices.

Multiple options in one board

Order the default Arduino Portenta H7 (codename H7-15EUNWAD) that comes with:

  • STM32H747 dual-core processor with graphics engine
  • 8MB SDRAM
  • 16MB NOR Flash
  • 10/100 Ethernet Phy
  • USB HS
  • NXP SE050C2 Crypto
  • WiFi/BT Module
  • External Antenna
  • DisplayPort over USB-C

If you need more memory, Portenta H7 can host up to 64 MByte of SDRAM, and 128 MByte of QSPI Flash. Decide between crypto-chips from Microchip® and NXP. The board is highly customizable in volumes, ask our sales representatives for options.

The basic configurations you can consider to get the board to accommodate to your needs and budget are:

Option Description Option Codes
SDRAM external SDRAM memory 0 – None 1 – 8 MByte 2 – 16 MByte 3 – 32 MByte 4 – 64 MByte
FLASH external QSPI Flash Memory 0 – None 1 – 2 MByte (NOR) 5 – 16 MByte (NOR) 8 – 128 MByte (NAND)
Ethernet 10/100 Ethernet PHY 0 – None E – Fitted
HS USB High Speed USB PHY 0 – None U – Fitted
Crypto Crypto Chip 0 – None M – ATECC608A N – SE050C2
Wireless Wireless Module 0 – None W – Fitted
Antenna Antenna option 0 – None C – UFL connector
Video Displayport output over USB-C 0 – None D – Fitted

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.




Tech specs

The Arduino Portenta H7 is based on the STM32H747 microcontroller, XI series.

MICROCONTROLLER STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
RADIO MODULE Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth® (Bluetooth® Low Energy. 5 via Cordio stack, Bluetooth® Low Energy 4.2 via Arduino Stack) (datasheet)
SECURE ELEMENT (DEFAULT) NXP SE0502 (datasheet)
BOARD POWER SUPPLY (USB/VIN) 5V
SUPPORTED BATTERY Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
CIRCUIT OPERATING VOLTAGE 3.3V
DISPLAY CONNECTOR MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
GPU Chrom-ART graphical hardware Accelerator™
TIMERS 22x timers and watchdogs
UART 4x ports (2 with flow control)
ETHERNET PHY 10 / 100 Mbps (through expansion port only)
SD CARD Interface for SD Card connector (through expansion port only)
OPERATIONAL TEMPERATURE -40 °C to +85 °C
MKR HEADERS Use any of the existing industrial MKR shields on it
HIGH-DENSITY CONNECTORS Two 80 pin connectors will expose all of the board’s peripherals to other devices
CAMERA INTERFACE 8-bit, up to 80 MHz
ADC 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
DAC 2× 12-bit DAC (1 MHz)
USB-C Host / Device, DisplayPort out, High / Full Speed, Power delivery

Pinout Diagram

The Portenta H7 follows the Arduino MKR form factor, but enhanced with the Portenta family 80 pin high-density connector. Learn more about the board’s pinout by reading the board’s pinout documentation.

Documentation

Study how the Portenta H7 board works using the following files:

SCHEMATICS IN .PDF

DATASHEET IN .PDF
