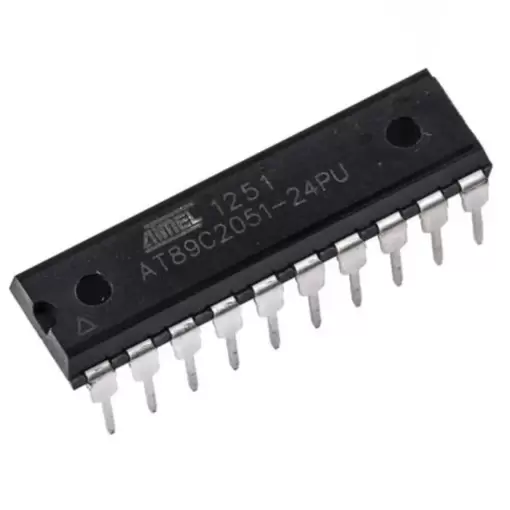

AT89C2051-24PU Microcontroller – DIP-20 Package
The AT89C2051 is a low-voltage, high-performance CMOS 8-bit microcomputer with 2K bytes of Flash programmable and erasable read-only memory (PEROM). The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C2051 is a powerful microcomputer that provides a highly-flexible and cost-effective solution to many embedded control applications.
Features/Specs:
- Part No: AT89C2051-24PU
- Manufacturer: Microchip
- CPU Core: 51Series
- Program Memory Size: 2 kB
- Data Bus Width: 8 bit
- ADC Resolution: No ADC
- Maximum Clock Frequency: 24 MHz
- Number of I/Os: 15 I/O
- Connectivity: UART/USART
- Program Memory Type: FLASH
- Data RAM Size: 128 B
- 2.7V to 6V Operating Range
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 20-DIP
