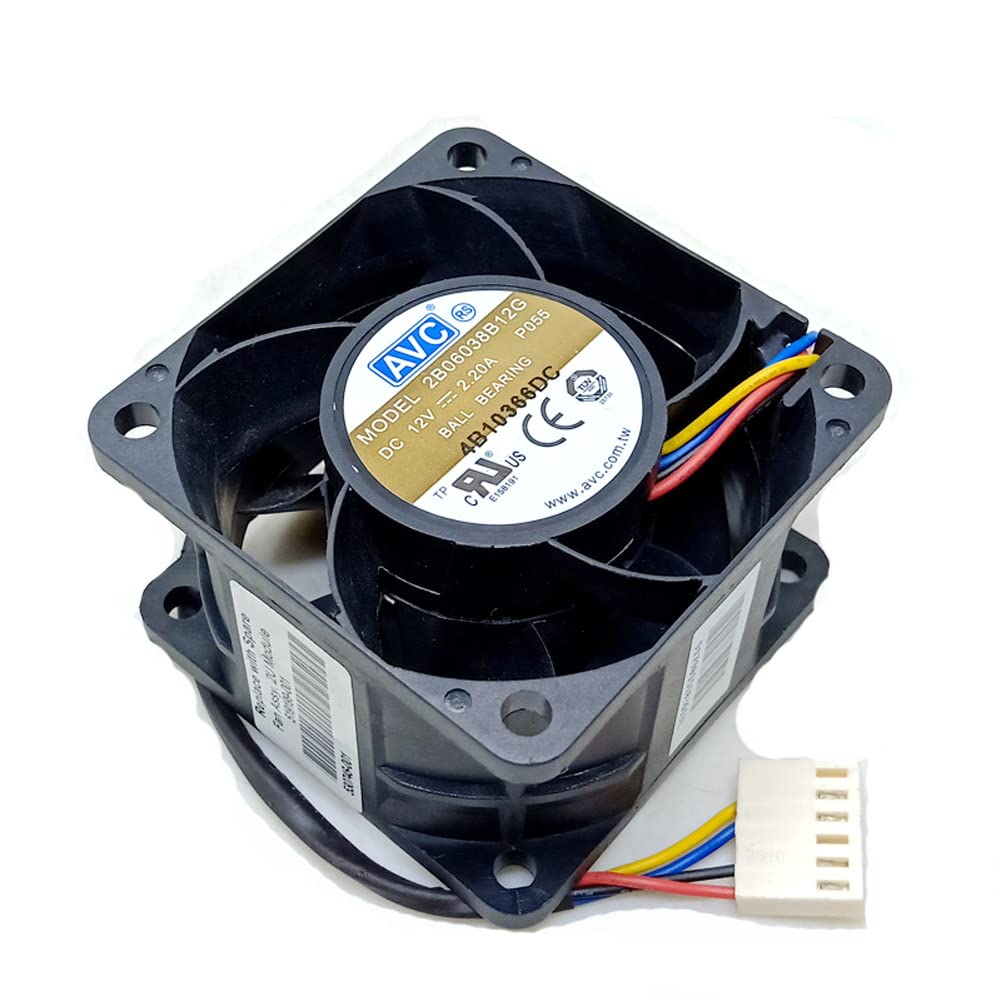

AVC 2B06038B12G DC Fan 12VDC 2.2A 60x6038mm (USED LIKE NEW)
The AVC 2B06038B12G is a high-performance DC brushless cooling fan built for demanding thermal management applications. With its compact 60×60×38mm size and powerful airflow capability, it is widely used in servers, networking equipment, and industrial systems where efficient heat dissipation is critical. Its thick 38mm frame allows it to generate high static pressure, making it suitable for pushing air through dense heatsinks and restricted enclosures.
This unit is offered in “used like new” condition, providing excellent performance at a lower cost. Operating at 12V with a high current rating of 2.2A, it delivers very strong airflow compared to standard fans of similar size. It typically features a 4-wire interface, enabling advanced control such as PWM speed regulation and tachometer feedback. Built with dual ball bearings, it ensures long lifespan and stable operation even under continuous heavy-duty use.
Features:
- Very high airflow and cooling performance.
- High static pressure for dense cooling environments.
- Durable dual ball bearing construction.
- Designed for continuous heavy-duty operation.
- Stable and low-vibration performance.
- Compact yet powerful design.
- Supports PWM speed control (4-wire models).
- Reliable operation in industrial environments.
Specifications:
| Parameter | Value |
|---|---|
| Brand | AVC (Asia Vital Components) |
| Model | 2B06038B12G |
| Size | 60 x 60 x 38 mm |
| Supply Voltage | 12 V DC |
| Current | 2.2 A |
| Power Consumption | 26.4 W |
| Speed (typical) | 15,000 ~ 20,000 RPM |
| Airflow (typical) | 40 ~ 55 CFM |
| Static Pressure (typical) | 1.2 ~ 1.8 inH₂O |
| Noise (typical) | 55 ~ 65 dBA (very loud) |
| Bearing Type | Dual Ball Bearing |
| Life Expectancy | 70,000 hours @ 40°C |
Applications:
- Server and data center cooling.
- High-performance power supplies.
- Industrial control systems.
- Network switches and routers.
- Inverters and telecom equipment.
- High-density electronic enclosures.
Package Includes:
- 1x AVC 2B06038B12G DC Fan 12VDC 2.2A 60x6038mm (USED LIKE NEW).
