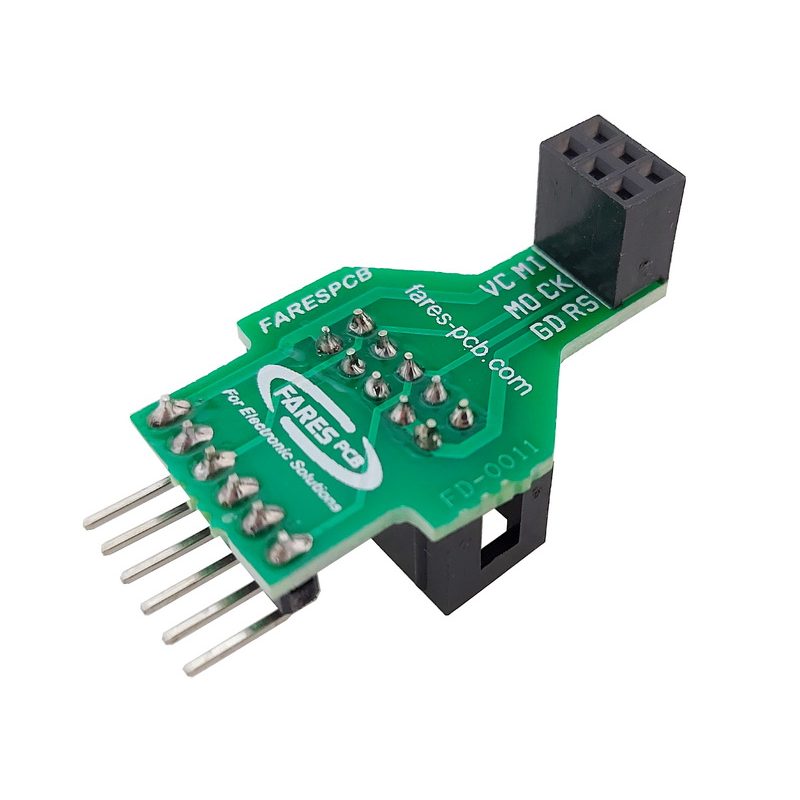

AVR ISP 10Pin To ICSP 6Pin Converter FD-0011

The FD‑0011 is an essential programming adapter that converts signals from a 10-pin IDC male AVR ISP connector to both a 2×3 female ICSP header and an additional 6-pin male header for flexible connection options. It routes all critical lines (VCC, GND, MISO, MOSI, SCK, RESET) directly and labels every connector clearly for easy identification. With its low-profile board and compact dimensions, it simplifies in-system programming for AVR microcontrollers and seamlessly integrates into custom development setups.

Features

• Converts 10‑pin IDC male AVR ISP to 6‑pin female ICSP header and 6‑pin male header.
• Supports all essential signal lines (VCC, GND, MISO, MOSI, SCK, RESET).
• Silkscreen labels on each connector ensure clear and accurate wiring.
• Compatible with USBasp, AVR‑ISP, STK500, and other standard AVR programmers.

Specifications

Applications

• Programming AVR microcontrollers via USBasp or AVR‑ISP using ICSP interface.
• Bridging older 10‑pin ISP cables to modern 6‑pin ICSP footprints.
• Enhancing flexibility in development and field firmware updates.
• Connecting Arduino and custom AVR-based boards to programmers.

Package Contents

• 1× AVR ISP 10Pin To ICSP 6Pin Converter FD-0011.
