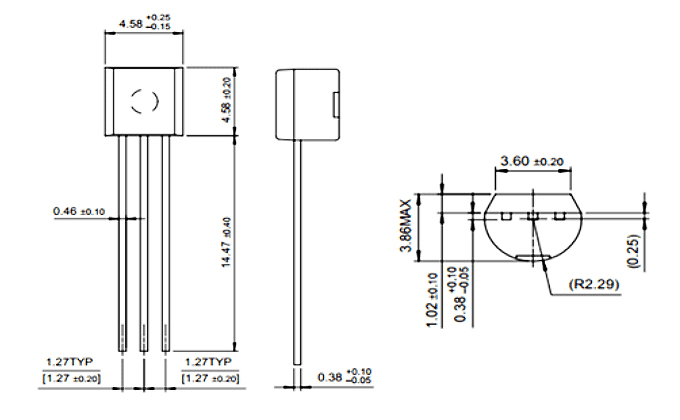

BC107 Transistor TO-92

Specification:

• BC107 BJT Transistor NPN 45V / 100mA
• Product Category:Bipolar Transistors – BJT
• Transistor Polarity:NPN
• Configuration:Single
• Collector- Emitter Voltage VCEO Max:45 V
• Collector- Base Voltage VCBO:50 V
• Emitter- Base Voltage VEBO:6 V
• Maximum DC Collector Current:0.1 A
• Minimum Operating Temperature:- 55 C
• Maximum Operating Temperature:+ 175 C
• Pd – Power Dissipation:300 mW

Applications of BC107 NPN General Purpose Transistor:

• It is used in switching device.
• It is used in amplifying device.
• It is used in DIY kits.
• It is used in Electronic projects.

Attachment

• Datasheet BC107
