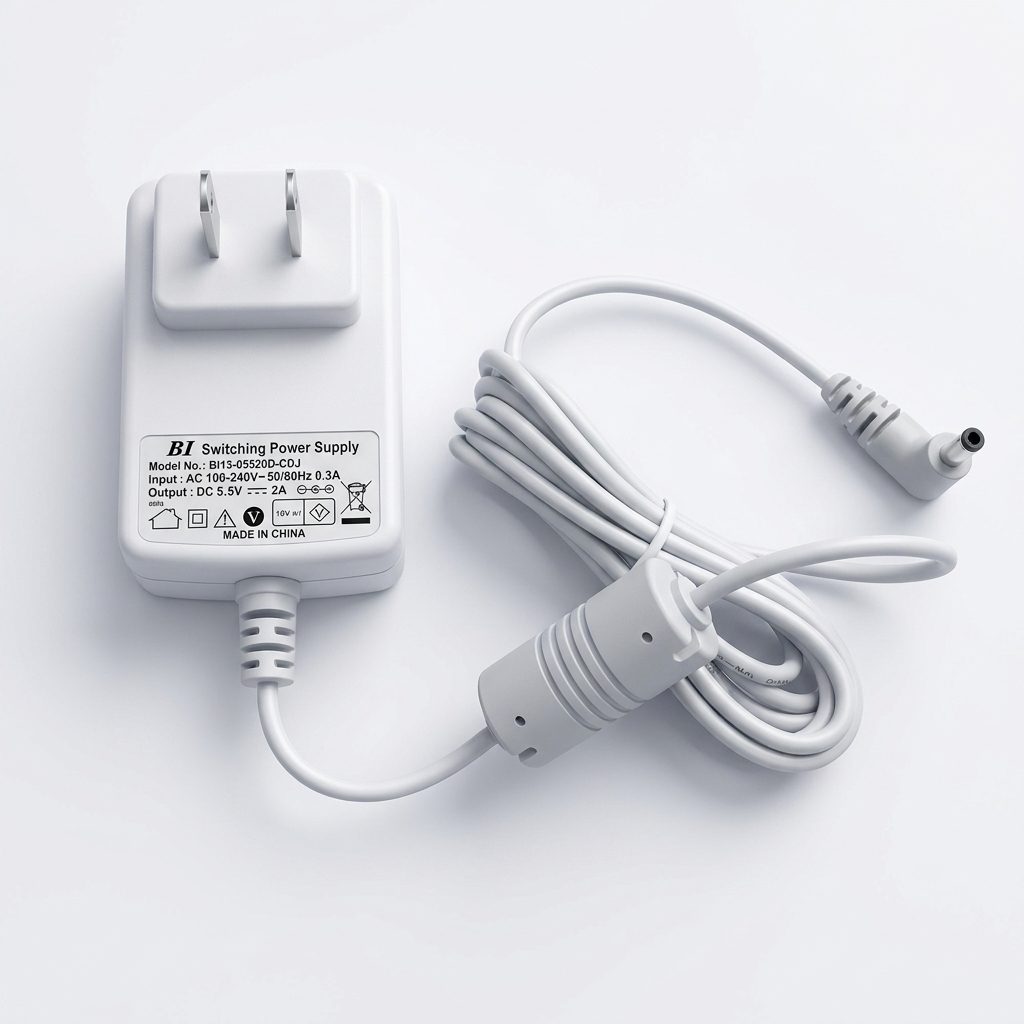

BL13-055200 Adapter 5.5V 2A with Single Jack 3.5mmx1.35mm WHITE
The BL13-055200 is a compact switching power supply adapter designed to provide a regulated 5.5V DC output at up to 2A. It accepts a wide AC input range of 100–240VAC at 50/60Hz, making it suitable for use with compatible electronic equipment and devices requiring a 5.5V DC power source.
Features:
- 5.5V DC regulated output
- 2A maximum output current
- 11W maximum output power
- 100–240VAC universal input
- 50/60Hz input frequency
- 3.5mm × 1.35mm DC barrel connector
Specifications:
| Parameter | Value |
|---|---|
| Model | BL13-055200 |
| Type | Switching Power Supply Adapter |
| Input Voltage | 100–240VAC |
| Input Frequency | 50/60Hz |
| Input Current | 0.3A |
| Output Voltage | 5.5VDC |
| Output Current | 2A |
| Output Power | 11W |
| DC Connector | 3.5mm × 1.35mm |
| Cable Length | 1.5m |
| Output Polarity | Center Positive |
| Color | White |
| AC Plug | US-style 2-pin flat plug |
| Output Connection | Single DC Jack |
Applications:
- CCTV cameras and security equipment
- LED lighting and small LED devices
- Routers and networking equipment
- Embedded systems and development boards
- Small electronic devices
- Sensors and control modules
- DIY electronics projects
Package Include:
1x BL13-055200 Adapter 5.5V 2A with Single Jack 3.5mmx1.35mm WHITE
