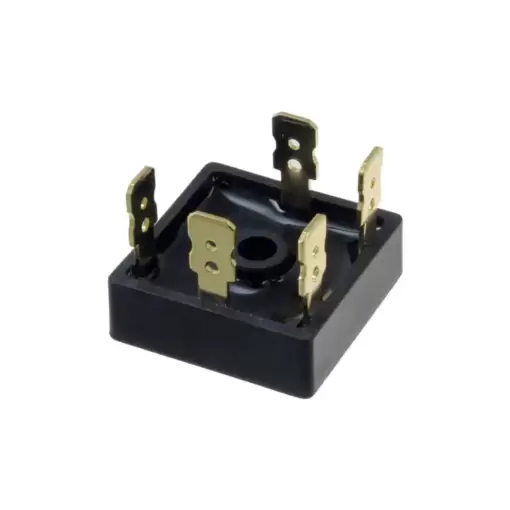

Features
- High surge current capability
- Easy chassis mounting
- High voltage ratings up to 1600V
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
Applications
- Battery charges
- DC motor drives
- Various rectifiers
ABSOLUTE MAXIMUM RATINGS
| SYMBOL | PARAMETER | VALUE | UNIT |
| VRRM | Repetitive Peak Reverse Voltage | 1600 | V |
| IO | Average Rectified Output Current @60Hz sine wave, R-load, With heatsink Tc=55℃ | 35 | A |
| IFSM | Surge(Non-repetitive)Forward Current @60HZ Half- sine Wave, 1 cycle, Ta=25℃ | 425 | A |
| I2 t | Current Squared Time @1ms≤t<8.3ms Tj=25℃, Rating of per diode | 750 | A2S |
| TJ | Junction Temperature | -55~150 | ℃ |
| Tstg | Storage Temperature Range | -55~150 | ℃ |
| Vdis | Dielectric Strength, Terminals to case, AC 1 minute | 2.5 | KV |
ELECTRICAL CHARACTERISTICS
| SYMBOL | PARAMETER | CONDITIONS | MAX | UNIT |
| VFM | Forward Voltage drop | IFM= 17.5A | 1.2 | V |
| IRRM | Repetitive Peak Reverse Current | VR＝VRRM | 10 | uA |
