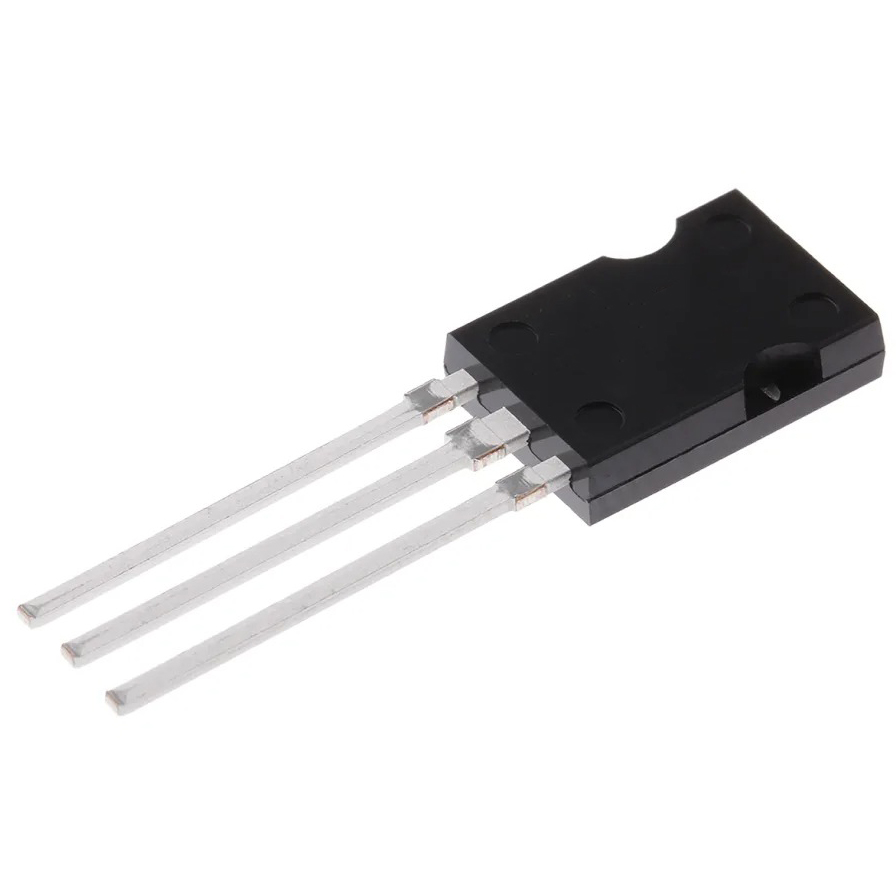

BT134-600 Triac 600V 4A Through Hole SOT-82
BT134-600 Triac: 600V, 4A, sensitive gate for easy control. Ideal for AC switching and phase control in lights, motors. Through-hole SOT-82 package.
7.00 EGP
Buy NowBT134-600 Triac 600V 4A Through Hole SOT-82
The BT134-600 is a high-performance triac designed for general-purpose AC switching and phase control applications. Featuring a sensitive gate, this triac allows for easy triggering in all four quadrants, making it an excellent choice for precise power control in circuits driven by microcontrollers or logic-level signals. Housed in a through-hole SOT-82 package with three pins, the BT134-600 offers reliable operation and easy integration into a wide range of electronic designs.
Features
- 600V Blocking Voltage: Capable of handling high-voltage AC applications.
- 4A RMS On-State Current: Supports moderate current loads with full sine wave operation.
- Sensitive Gate: Low trigger current requirement for efficient control.
- Planar Passivated Design: Enhances reliability and performance under varying conditions.
- AC Power Control: Ideal for bidirectional switching and phase control.
- Microcontroller Compatible: Direct interfacing with low-power gate drivers and logic ICs.
- Through-Hole SOT-82 Package: Simplifies mounting and soldering in circuit assembly.

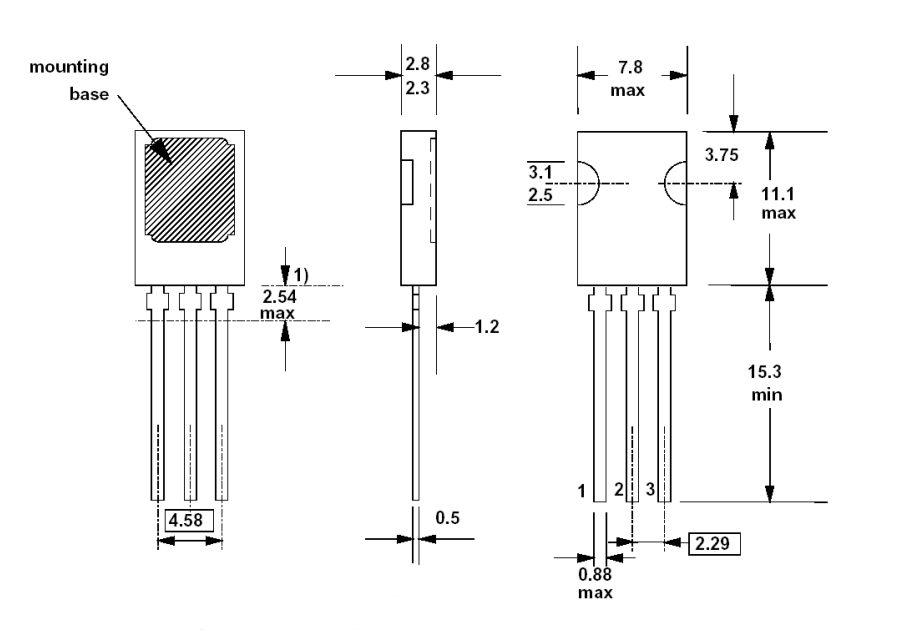

Pin Configuration
Specifications
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Repetitive Peak Off-State Voltage | VDRM | 600V | – |
| RMS On-State Current | IT(RMS) | 4A | Full sine wave, T=25°C |
| Non-Repetitive Surge Peak On-State Current | ITSM | 25A / 27A | t=20ms / t=16.7ms |
| Gate Trigger Current | IGT | 10mA | Typical for sensitive gate |
| Holding Current | IH | 10mA | – |
| On-State Voltage | VT | 1.7V | – |
| I²t for Fusing | I²t | 3.1 A²s | t=10ms |
| Repetitive Rate of Rise of On-State Current | dI/dt | 50 A/μs / 10 A/μs | Most triggering modes / T2-G+ mode |
| Operating Temperature Range | – | -40°C to 125°C | – |
| Package | – | SOT-82 | 3-pin through-hole |
Applications
- AC Motor Speed Control: Perfect for regulating motor speeds in appliances and tools.
- Light Dimming Circuits: Enables smooth dimming for residential and commercial lighting.
- Heating Control Systems: Precise temperature regulation in heaters and ovens.
- Static Switching Relays: Reliable switching for AC loads without mechanical parts.
- Home Appliance Controls: Used in washers, dryers, and other household devices.
- Industrial Automation Systems: Supports process control in manufacturing environments.
DataSheet
