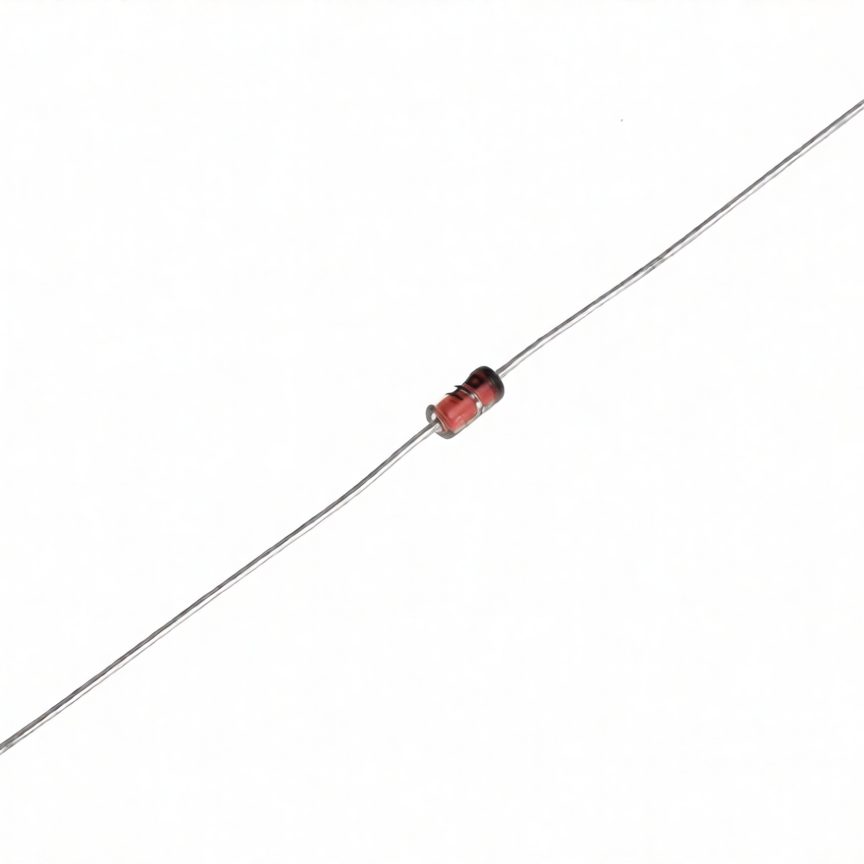

BZX55C6V2 Zener Diode 6.2V 0.5W
BZX55C6V2 6.2V 0.5W Zener diode commonly used for voltage regulation, voltage reference, voltage clamping, and overvoltage protection.
0.50 EGP
Buy NowBZX55C6V2 Zener Diode 6.2V 0.5W
The BZX55C6V2 is a silicon planar Zener diode designed to provide voltage stabilization and reference functions in electronic circuits. Its Zener action allows it to maintain a controlled voltage across the device when operated in the reverse breakdown region, making it suitable for regulation and protection applications.
The device belongs to the BZX55C family of axial glass Zener diodes and is intended for through-hole PCB mounting. The supplied datasheet specifies a maximum power dissipation of 500mW, a maximum forward voltage of 1V at 100mA, and a maximum junction temperature of 175°C.
Features:
- Silicon planar construction.
- Axial glass package.
- Through-hole mounting.
- Suitable for voltage stabilization.
- Useful for voltage reference circuits.
- Suitable for voltage clamping and protection.
- Polarized device with cathode band marking.
- Compact PCB-friendly package.
Specifications:
| Parameter | Specification |
|---|---|
| Part Number | BZX55C6V2 |
| Product Type | Zener Diode |
| Nominal Zener Voltage | 6.2V |
| Power Dissipation | 0.5W (500mW) |
| Technology | Silicon Planar |
| Package | DO-35 |
| Mounting Type | Through-Hole |
| Configuration | Single Diode |
| Body | Axial Glass |
| Forward Voltage | 1V max. at IF = 100mA |
| Maximum Junction Temperature | 175°C |
| Storage Temperature | -55°C to +175°C |
Applications:
- Voltage regulation.
- Voltage reference.
- Overvoltage protection.
- Voltage clamping.
- Signal limiting.
- Power supply protection.
- Transistor and IC protection.
- General-purpose electronic circuits.
Packages Included:
- 1 × BZX55C6V2 Zener Diode 6.2V 0.5W.
