Features:
- As a gG-type fuse, it’s meant for general-purpose wire protection.
- Voltage rating of 500V AC (alternating current) for use in low-voltage applications.
- Light weight of 8.2g for easy handling and minimal strain on your system.
- Quick and easy clip-on mounting to a fuse holder for tool-free installation.
- A ceramic body gives it a high thermal capacity, making it useful in circuits prone to overheating.
- Small size.
- Full range protection.
- Safest and most reliable protection system.
- High limiting and breaking capacity.
- Low power dissipation.
- It’s known as a ‘sacrificial device’, which means it sacrifices itself by melting to break a circuit’s power supply when there’s a fault.
- The fuse can bear overload in a certain range when current fluctuation occurs because of power supply or external interference.
- When bigger overload current appears in the circuit, the fuse should cut off the circuit in the set time so as to protect other electric parts in the circuit.
- When very big current appears because of short circuit, the fuse can safely cut off the circuit so as to avoid damage by overload current.
- Factors can cause a fuse to break:
-
- Temperature.
- Electrical pulses.
- Continuous voltage drops and inrush currents that exceed the current rating of the fuse or equipment.
- If you’re getting through fuses quickly and you can’t find a short circuit.
-
Specifications:
- Application Category: gG
- Usage: Low Voltage
- Model Number : RO15
- Body Material: Ceramic

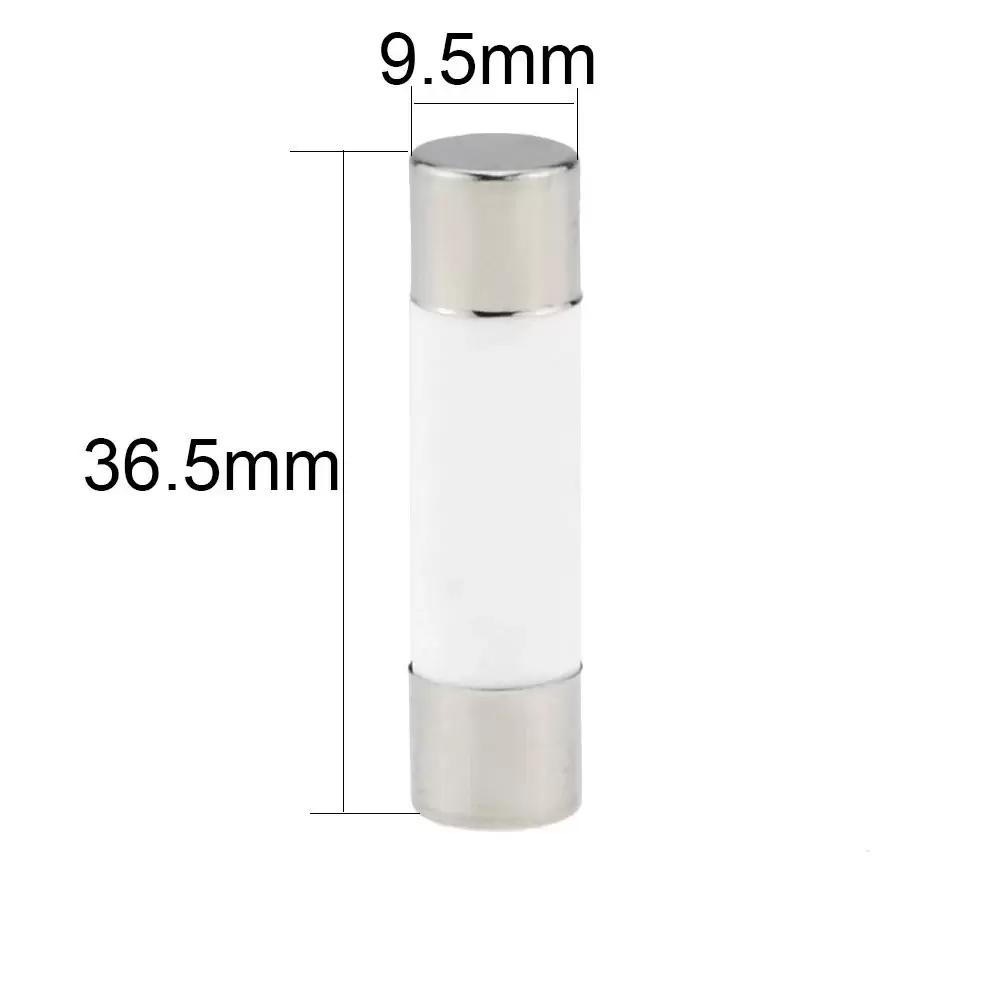

- Fuse Size (Approx.): 10 mm * 38 mm
- Rated Voltage: 500 V(AC)
- Rated Current selection: 4A, 6A , 10A , 16A , 20A , 25A , 32A
- Breaking capacity: 50 kA
Applications:
- Mainly used for protecting the electrical circuit against changeover switches, distribution boxes and overload and short-circuits in electric lines.
- Safeguarding operators and equipment.
- Electric ovens, microwaves and many other things.
