Chip Resistor SMD 1kΩ ±1% 0.125W ±100ppm/℃ 0805
The Chip Resistor SMD 1kΩ ±1% 0.125W ±100ppm/℃ 0805 is a compact surface-mount thick-film resistor designed for general-purpose electronic circuits and PCB assemblies. It provides a nominal resistance of 1kΩ with a ±1% tolerance, making it suitable for circuit designs that require an accurate and consistent resistance value.
Features:
- 1kΩ nominal resistance for general-purpose electronic circuit applications.
- ±1% resistance tolerance for improved resistance accuracy.
- 125mW rated power for low-power PCB applications.
- 0805 surface-mount package for compact PCB layouts.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Thick Film Chip Resistor. |
| Resistance | 1kΩ. |
| Tolerance | ±1%. |
| Rated Power | 125mW. |
| Package | 0805. |
| Temperature Coefficient | ±100ppm/°C. |
| Voltage Rating | 150V. |
| Operating Temperature Range | -55°C to +155°C. |
| Mounting Type | Surface Mount. |
| Manufacturer | FOJAN. |
| Manufacturer Part Number | FRC0805F1001TS. |

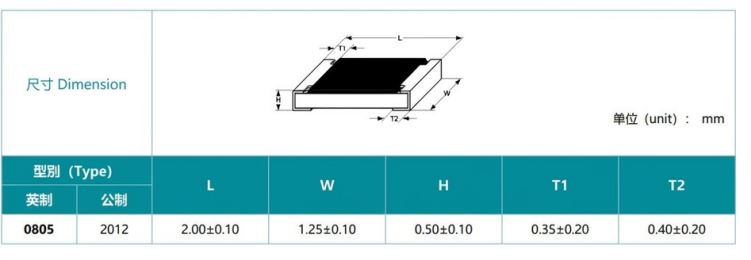

Foot Print:
Applications:
- Voltage-divider circuits.
- Biasing networks.
- Pull-up and pull-down circuits.
- Current-limiting circuits.
- Signal conditioning circuits.
- Signal damping applications.
- Sensor interface circuits.
- Analog electronic circuits.
- Digital electronic circuits.
- General-purpose PCB assemblies.
Package Include:
1x Chip-Resistor SMD 1kΩ ±1% 0.125W ±100ppm/℃ 0805
