MAKERS PRO CHK-700 Chicken Head Potentiometer Knob for 6mm Shaft Without Screw Lock
The MAKERS PRO CHK-700 is a classic chicken head potentiometer knob created to give rotary controls a clear and recognizable appearance. Its distinctive pointer-style shape makes the selected setting easy to identify while adding a traditional professional look to a control panel. The design supports simple manual adjustment and gives the user a direct visual reference when changing operating levels or positions.
The knob uses a screwless push-on construction that fits directly onto a compatible potentiometer shaft through friction. This arrangement avoids the need for a separate locking screw and keeps installation clean and straightforward. Its molded body provides a comfortable contact surface for the fingers, helping the user rotate the control smoothly while maintaining a secure connection during handling and repeated adjustments.
Features:
- Classic molded chicken head pointer design.
- Highly visible white position indicator line.
- Screwless push-on friction-fit installation.
- Quick and tool-free assembly.
- Compatible with 6mm split or knurled potentiometer shafts.
- Comfortable shape for controlled manual adjustment.
- Secure grip on compatible potentiometer shafts.
- Durable molded plastic construction.
- Provides electrical insulation.

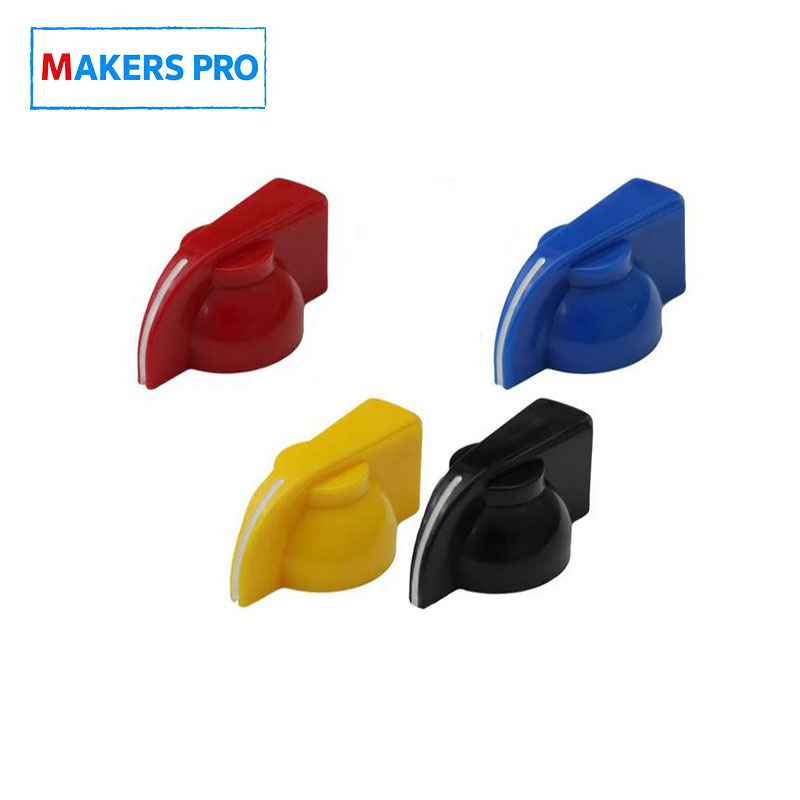

- Available in multiple body colors.
Specifications:
| Specification | Details |
|---|---|
| Brand: | MAKERS PRO |
| Model: | CHK-700 |
| Product Type: | Chicken Head Potentiometer Knob |
| Knob Type: | Pointer Knob |
| Installation Type: | Push-On Friction Fit |
| Screw Lock: | No |
| For Use With: | Potentiometer |
| Compatible Shaft Type: | Split or Knurled Shaft |
| Shaft Size: | 6mm |
| Material: | Plastic |
| Indicator Color: | White |
| Available Body Colors: | Black, Yellow, Red, Blue |

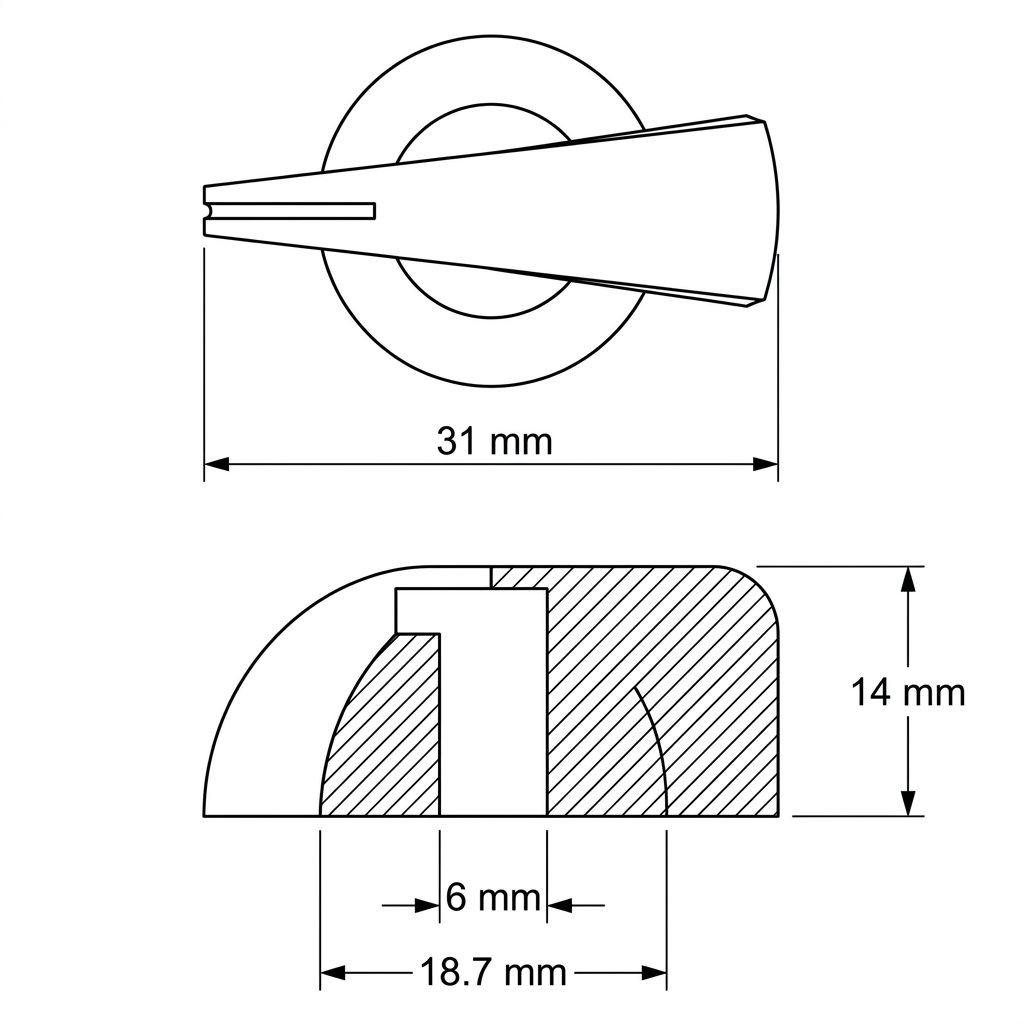

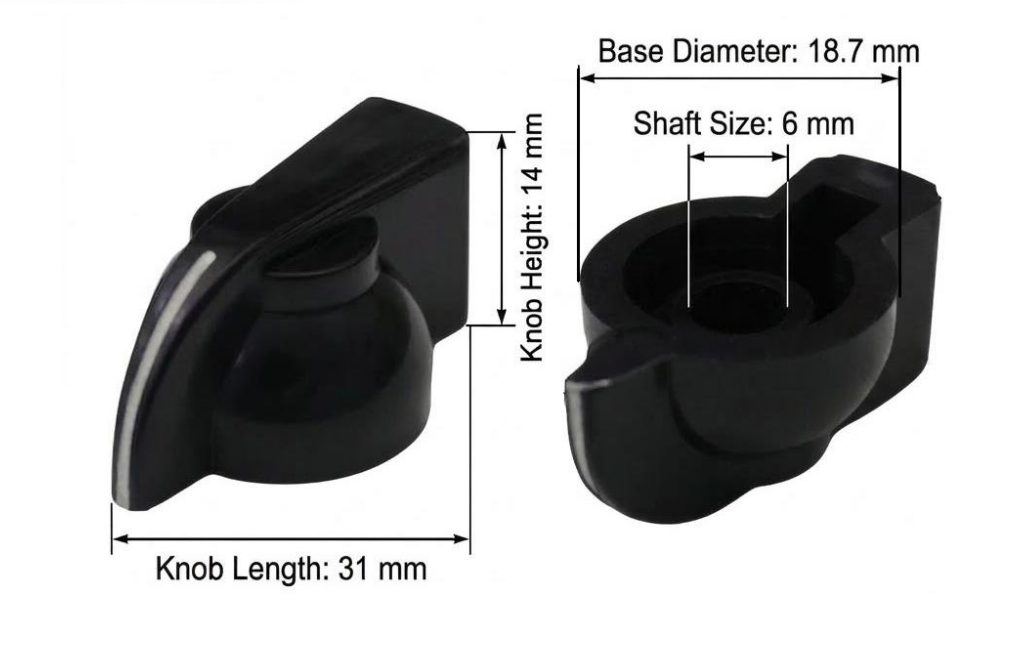

| Knob Length: | 31mm |
| Knob Height: | 14mm |
| Base Diameter: | 18.7mm |
| Black Item Number: | 13754 |
| Yellow Item Number: | 13755 |
| Red Item Number: | 13756 |
| Blue Item Number: | 13757 |
Application:
- Audio Amplifier Controls.
- Mixer and Equalizer Panels.
- Electronic Instrument Controls.
- Power Supply Adjustment Controls.
- Test and Measurement Equipment.
- Industrial Control Panels.
- DIY Electronics Projects.
- Vintage Equipment Restoration.
Package Include:
- 1x MAKERS PRO CHK-700 Chicken Head Potentiometer Knob for 6mm Shaft Without Screw Lock (Depending on the Color)
