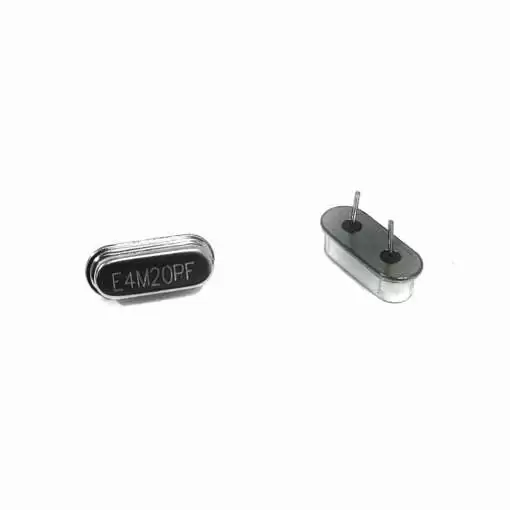

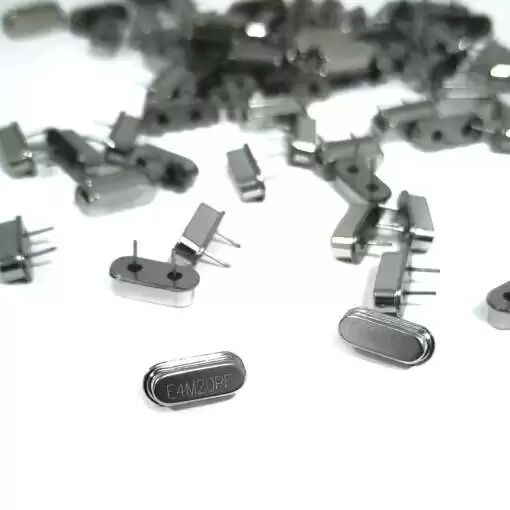

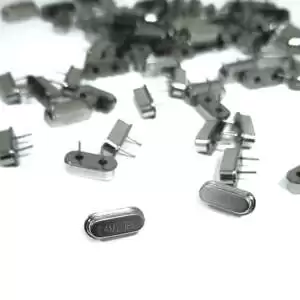

Crystal Oscillator 4MHz 20pF HC-49S
The Crystal Oscillator 4MHz 20pF HC-49S is a fundamental passive electronic component designed to generate a highly stable and precise clock signal at a frequency of 4.000 MHz. This component utilizes the piezoelectric effect in a precisely cut quartz crystal to provide the necessary frequency reference for microcontrollers, digital signal processors, and other timing-sensitive electronic devices. The crystal is housed in the widely used, hermetically sealed, low-profile HC-49S package, which is well-suited for through-hole mounting on printed circuit boards (PCBs) and is designed for applications where space conservation is a priority.
Features:
- Precise fundamental frequency output of 4.000 MHz.
- Low-profile HC-49S case style for compact circuit designs.
- Specified 20pF load capacitance for optimal integration with common oscillator circuits.
- Tight Frequency Tolerance of 30 ppm for high-accuracy timing.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Quartz Crystal Resonator |
| Nominal Frequency | 4.000MHz |

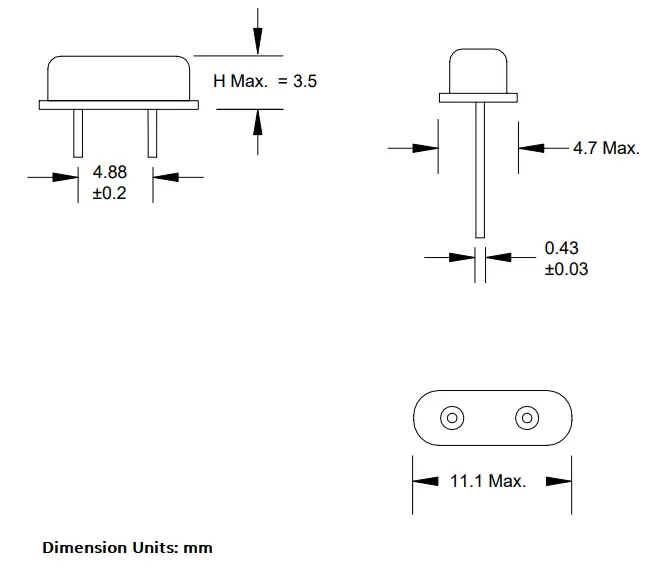

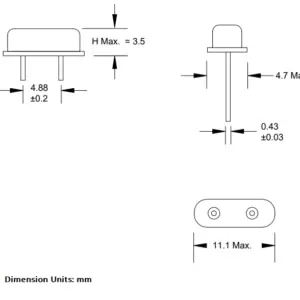

| Package | HC-49S |
| Mounting Type | Through Hole |
| Load Capacitance | 20pF |
| Oscillation Mode | Fundamental |
| Frequency Tolerance | ±30ppm (Typical) |
| Frequency Stability | ±30ppm |
| Equivalent Series Resistance (ESR) | 180Ω Max |
| Drive Level | 100μW Typical |
| Shunt Capacitance | 7pF Max |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Number of Pins | 2 |
Applications:
- Microcontroller clock and timing reference circuits.
- USB, serial communications and interface timing.
- RF modules, PLL and VCO clock sources.
- Long-term time-keeping, oscillator modules and embedded system clocks.
- Instrumentation, audio circuits, networking and consumer electronics requiring precise frequency reference.
Package Include:
- 1x Crystal Oscillator 4MHz 20pF HC-49S.
