Cyber:bot Robot Kit – with Micro:Bit

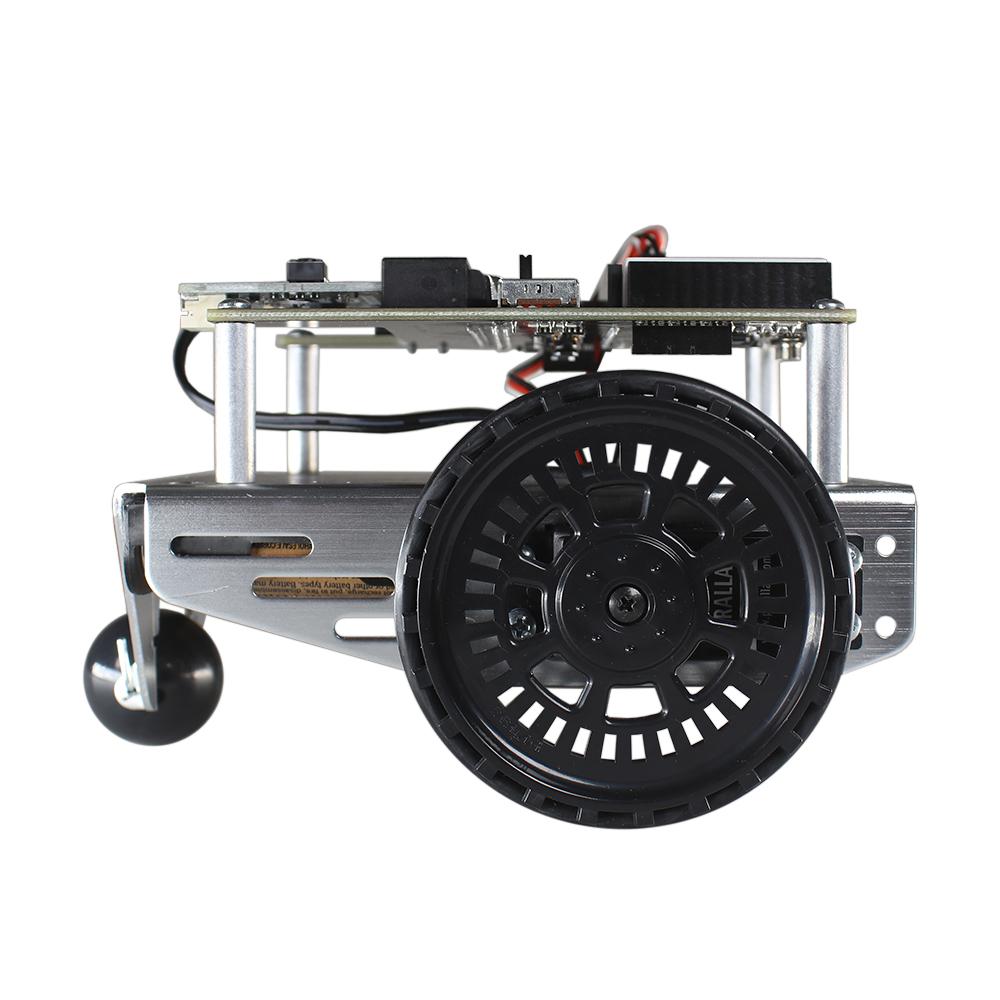

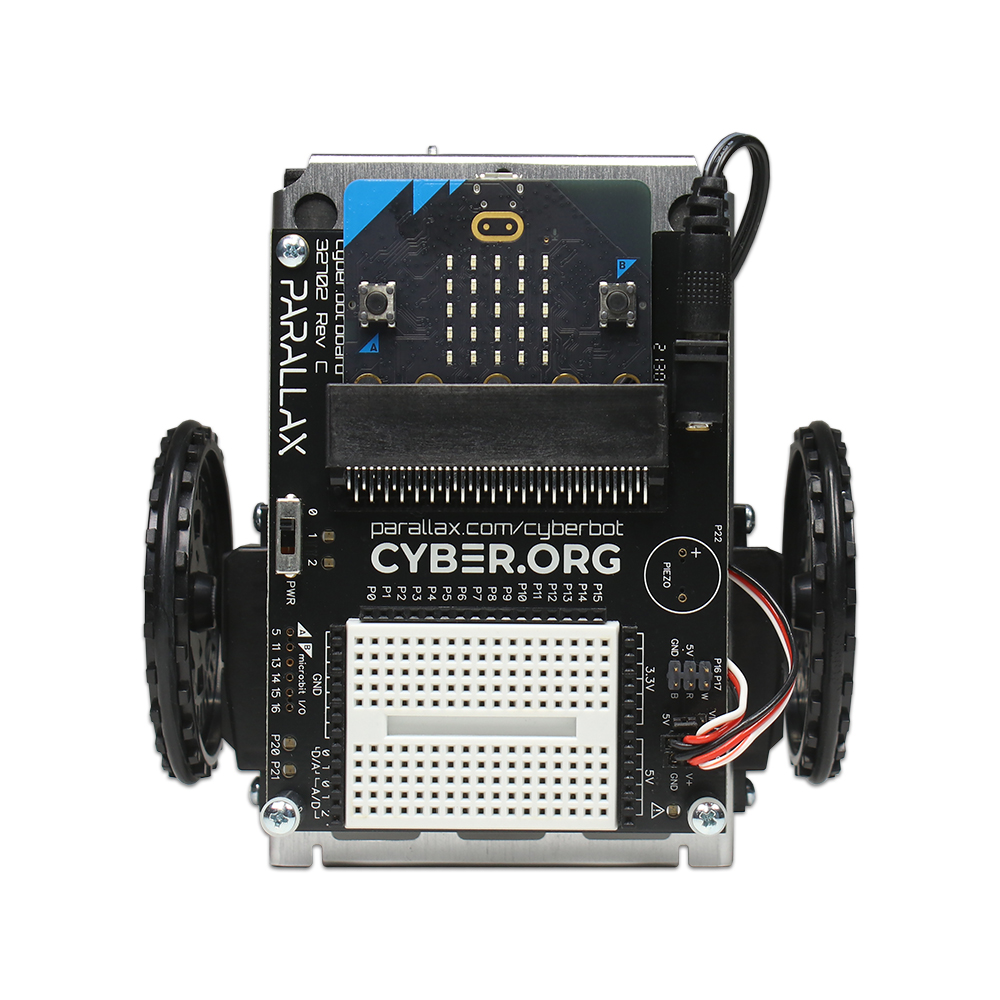

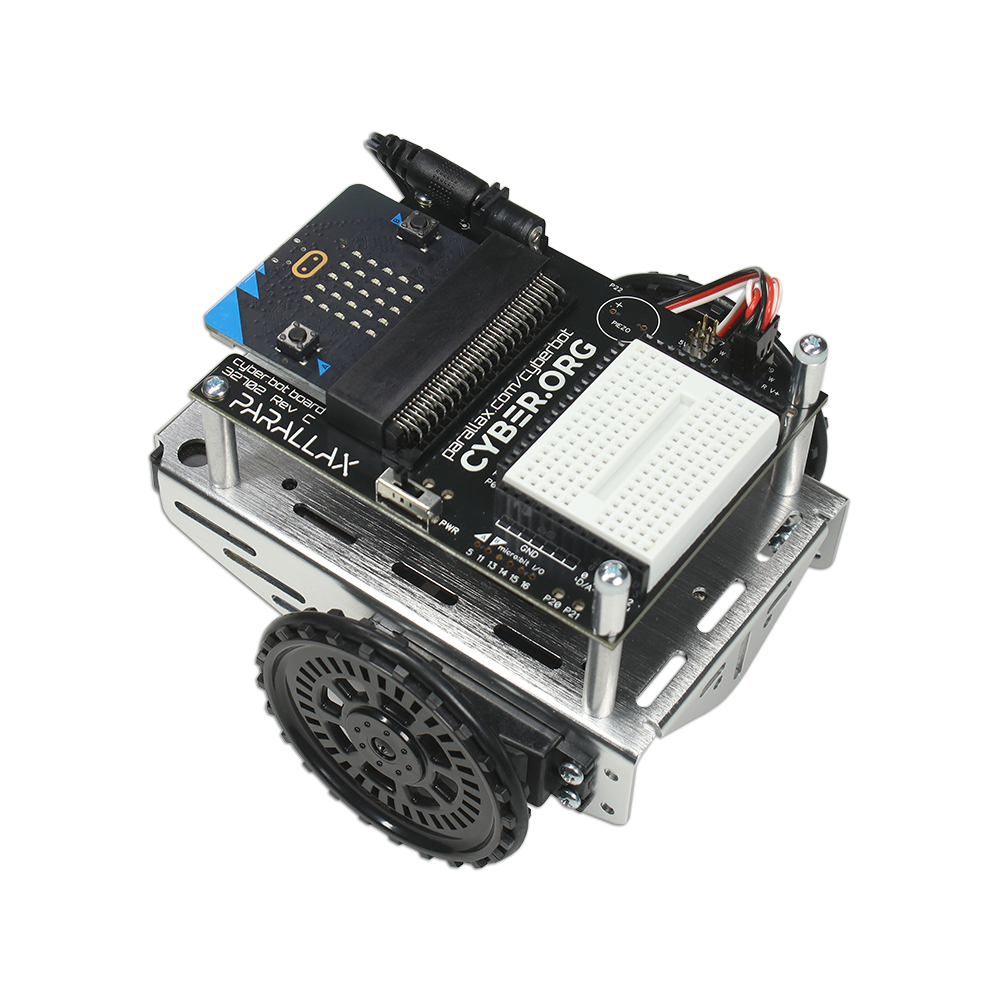

The cyber: bot robot puts the BBC micro: bit module (may include v 1.5 or v2, both are compatible) on the Parallax small robot! The cyber: bot robot adds a tangible hardware dimension to Python-focused computer science, CTE, and cybersecurity programs.   This form factor is a proven STEM success in classrooms from middle school into college, leveraging the add-ons available for this chassis. A pre-programmed onboard Propeller Multicore Microcontroller assists the micro: bit, handling the real-time servo motor control and sensors built on the breadboard. This enables more robust robotic applications that go beyond what the micro: bit can do on its own.

The cyber: bot robot is a joint project of Parallax Inc. and CYBER.ORG, the academic initiative of the Cyber Innovation Center.

Features:

• Python-programmable with Mu software or online MicroPython editor

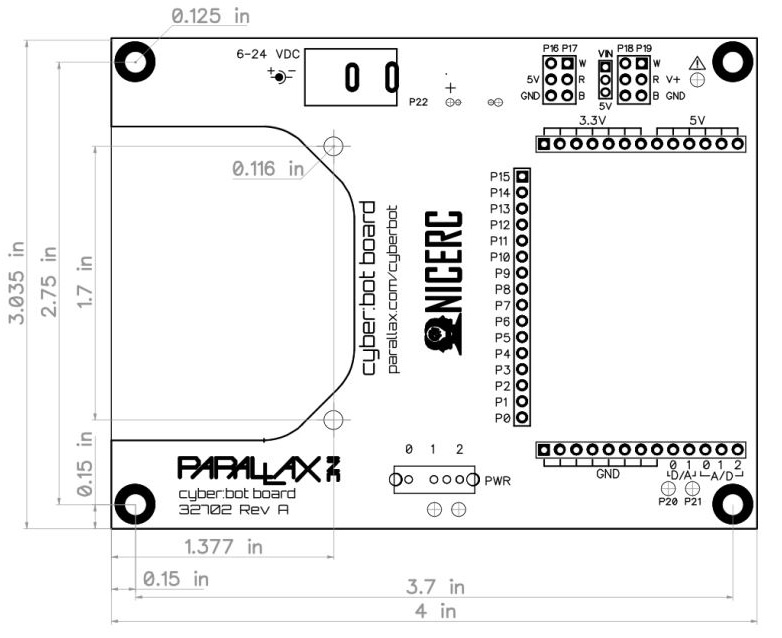

• cyber: bot board neatly connects the micro: bit to the Propeller Multicore Microcontroller and robot hardware
• Propeller multicore microcontroller pre-programmed with cyber: bot firmware manages sensors and servo motor control

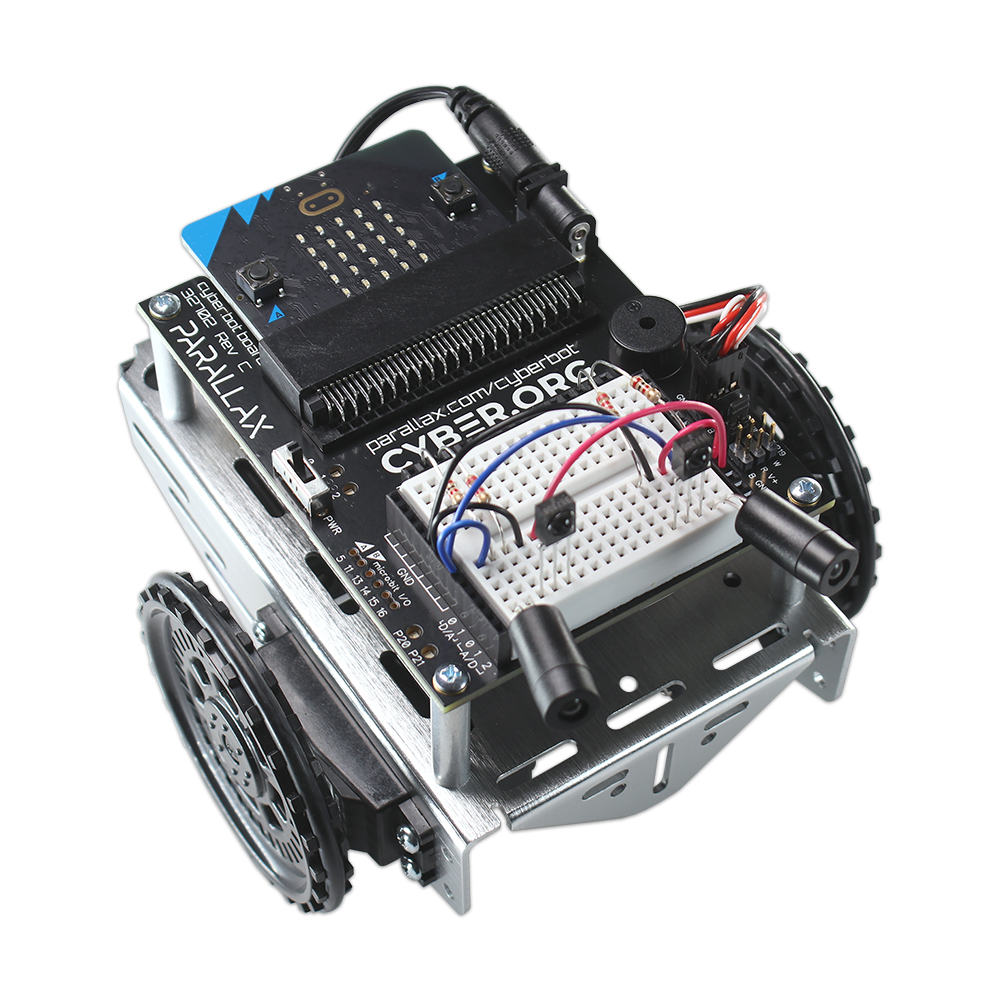

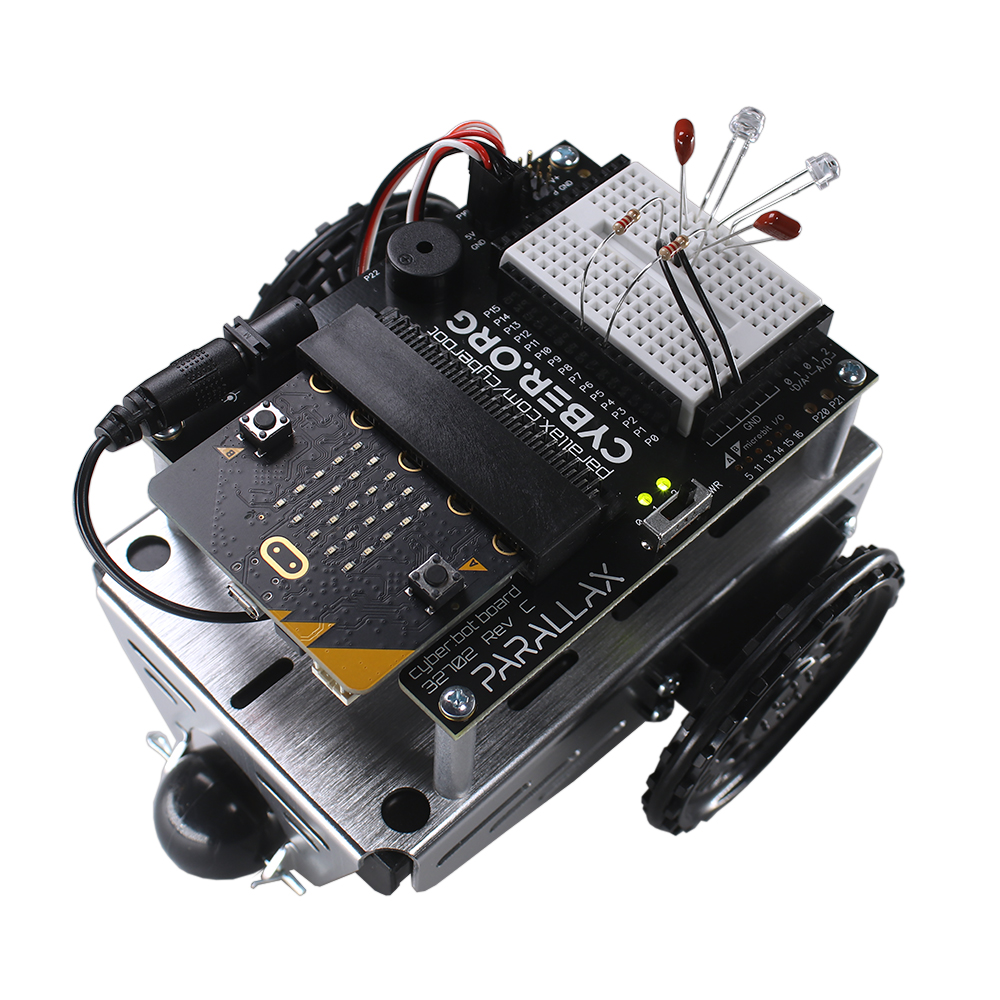

• Build DIY sensor circuits on the breadboard that use touch, visible light, and infrared light
• Compatible with Parallax small robot add-ons including the Ping))) Ultrasonic Distance Sensor, LaserPING 2m Rangefinder, QTI Line Follower Kit, Gripper Kit, Crawler Kit, and Parallax Feedback 360° High-Speed Servos.
• For free online Robotics and Cybersecurity tutorials see the cyber: bot Tutorial Series page
• Free micro: bit robotics curriculum resources for educators
• RoHS CE and UKCA Declarations of Conformity for this kit are available under the Downloads tab.

Requires 5 AA 1.5 V alkaline batteries or 5 1.2 V nickel-metal hydride rechargeable batteries, not included.  Assembly required, no soldering necessary.

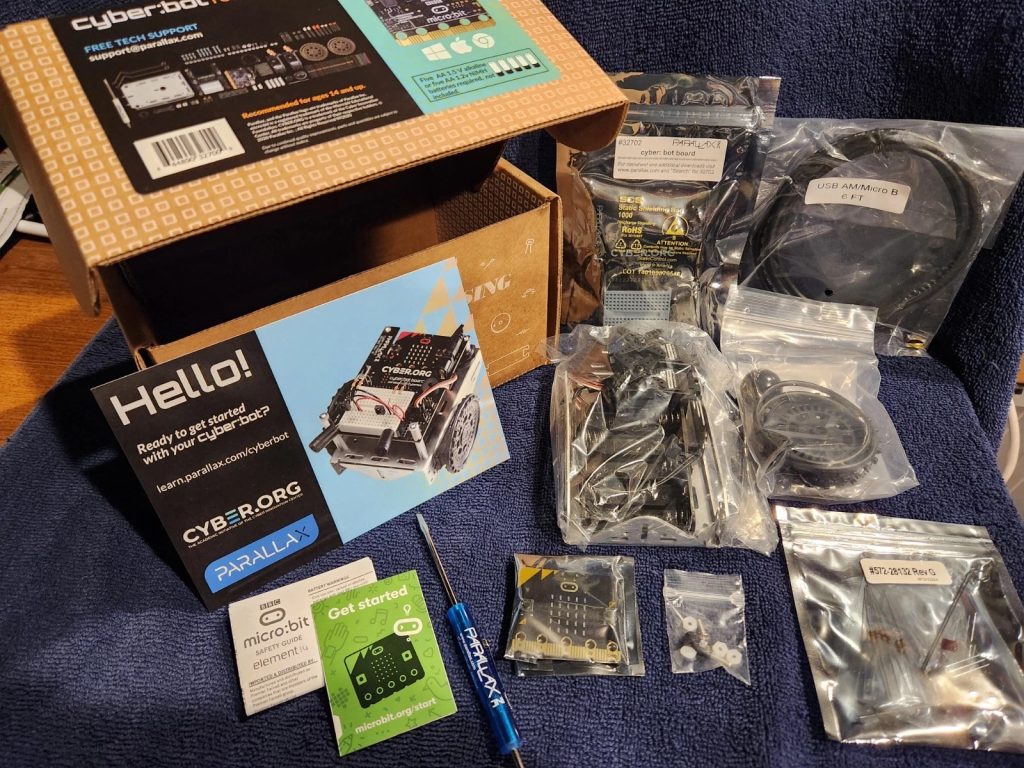

cyber: bot Robot Kit – with micro: bit Kit Contents:

• (1) micro: bit module
• (1) cyber: bot board
• (2) Parallax Continuous Rotation Servos
• (1) Small Robot Chassis
• (2) Small Robot Wheel and Tire
• (1) Small Robot Electronics Pack
• (1) Small Robot Hardware Pack
• (1) 5AA Battery Holder, Barrel Jack
• (1) USB A to Micro B Cable
• (1) Extra Hardware for cyber: bot board
• Parallax Pocket Screwdriver

Downloads

• cyber bot library (Python)
• Webinar: Getting Started with Python, Micro: bit, cyber: bot
• Scope & sequence for cyber: bot robot with micro:bit
• cyber: bot Robot Kit – with micro: bit – downloads
• cyber: bot Robot Kit CE and UKCA Declarations of Conformity
