Cytron MD10-POT Potentiometer & Switch Control DC Motor Driver 10 Amp 7V-30V
The MD10-POT is a compact, single-channel DC motor driver designed for straightforward speed and direction control of small to medium DC motors. It accepts a wide input voltage range and integrates convenient user controls so hobbyists and developers can quickly connect a battery and motor and begin testing. The board exposes clear user-accessible terminals and indicators for power and motor status, simplifying bench work and rapid prototyping.
Control is provided through either a hand-mounted potentiometer and direction switch or via standard PWM and DIR logic inputs, allowing both manual and microcontroller-driven operation. The unit handles typical motor starting loads while incorporating internal protection behavior, and its behavior under external PWM control mirrors the supplied input, making it flexible for embedded systems as well as manual setups.
Mechanically compact and easy to wire, the MD10-POT places functional elements power, motor outputs, LEDs, and test buttons within easy reach. Its design emphasizes practical usability over complexity: set the potentiometer for open-loop speed adjustments, flip the direction switch for quick reversals, or feed PWM signals for programmatic control during development and testing. Documentation includes wiring guidance, a truth table for PWM/DIR logic and basic troubleshooting notes for users.
Features:
- Potentiometer speed control (connects to a 10 kΩ potentiometer).
- Direction control via SPDT direction switch.
- PWM/DIR input for microcontroller control.
- Power and motor-status LEDs for visual feedback.
- Test buttons for quick functional checks.
- Accessible power input and motor output terminals for easy wiring.

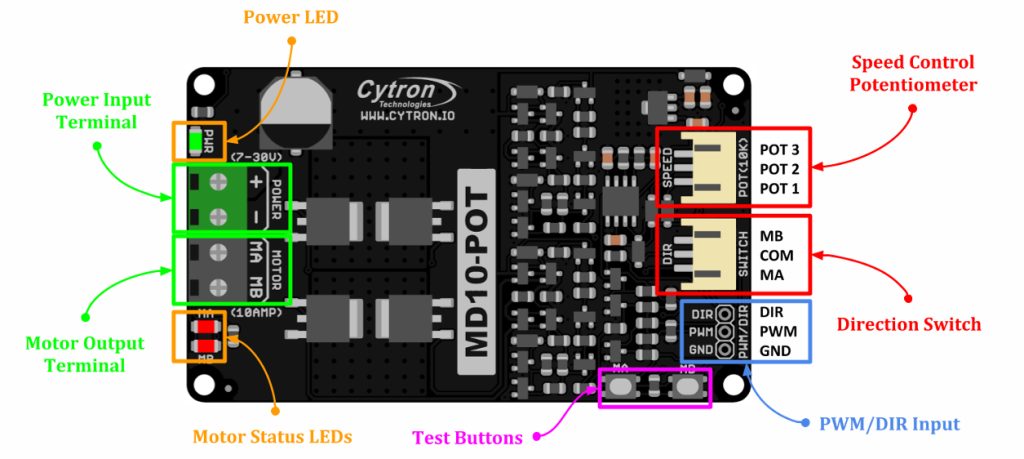

Board Layout:
| Function | Description |
|---|---|
| Power Input Terminal: | Connect to battery. |
| Motor Output Terminal: | Connect to motor. |
| Power LED: | Turn on when power up. |
| Motor Status LEDs: | Turn on when the motor is running. |
| Test Buttons: | Press to test the functionality of the motor / driver. |
| Speed Control Potentiometer: | Connect to 10 kΩ potentiometer for motor speed control. |
| Direction Switch: | Connect to SPDT switch for motor direction control. |
| PWM/DIR Input: | Use this to control the motor with PWM signal. DIR pin is used for direction control. Refer to Table 2 for truth table. |
The truth table for the control logic is as follow:
| PWM | DIR | Output A (MA) | Output B (MB) | Motor |
|---|---|---|---|---|
| Low | X (Don’t Care) | Low | Low | Brake |
| High | Low | High | Low | Forward |
| High | High | Low | High | Reverse |
Specifications:
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Power Input Voltage: | 7 | 30 | V |
| Maximum Motor Current – Continuous: | — | 10 | A |
| Maximum Motor Current – Peak (<10 s): | — | 30 | A |
| Logic Input Voltage – Low (PWM, DIR): | 0 | 0.5 | V |
| Logic Input Voltage – High (PWM, DIR): | 3 | 30 | V |
| Internal PWM Generator Frequency (potentiometer used): | 9 | 11 | kHz |
| External PWM Input Frequency (output = input freq): | DC | 20 | kHz |
Dimension:

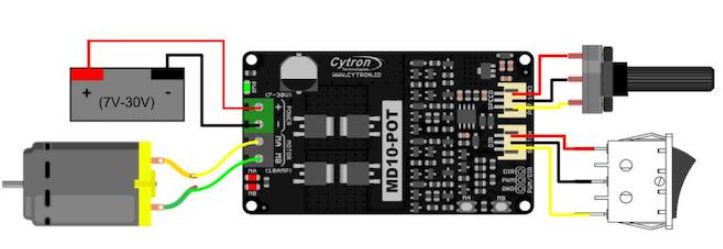

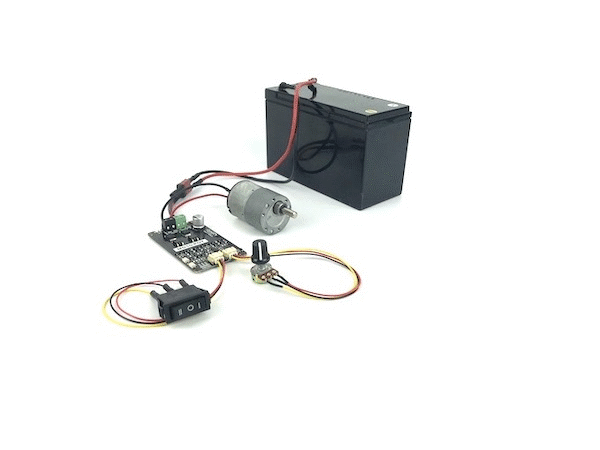

Wiring Diagram:
Manual Button:

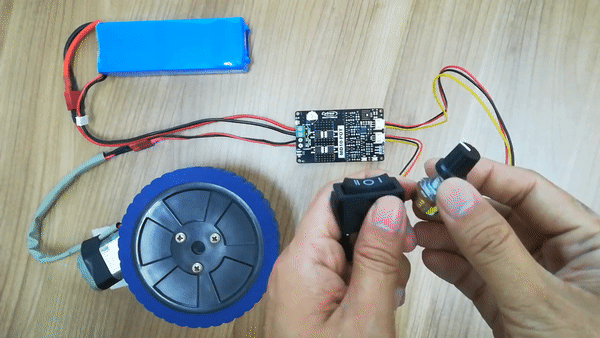

Speed:

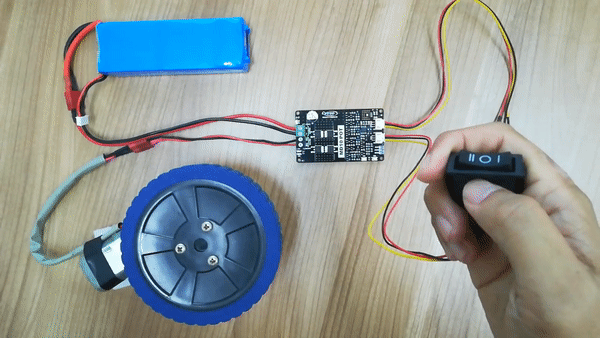

Switch:
Applications:
- High-Torque Robotic Actuator Control.
- Precision Industrial Conveyor Belt Speed Regulation.
- Variable Speed Reversing Drill Press or Lathe Drive.
- Manual Forward/Reverse Control for a Small Vehicle.
- Adjustable Flow Rate for a Fluid Pump System.
- Motorized Window or Door Actuator with Manual Override.
- Educational Robotics Kit for Motor Control Fundamentals.
- Potentiometer-Controlled Camera Dolly or Slider.
- Reversing Motorized Valve Actuator.
- Automated Test Equipment with Manual Adjustment Mode.

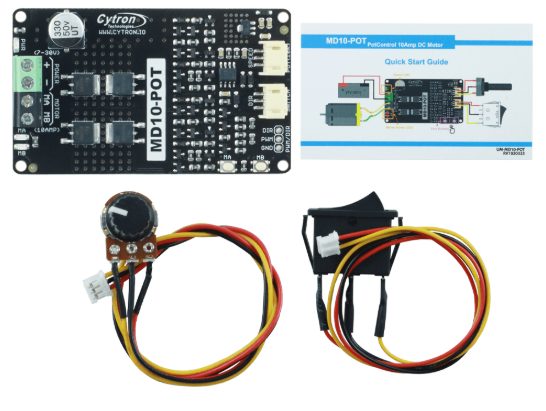

Package Contents:
- 1x MD10-POT
- 1x 10kOhm Potentiometer with connector
- 1x 3-Way Rocker Switch with connector
- 1x Quick Start Guide Card
| Datasheet: | MD10-POT Datasheet | ||
| Certificate: | UKCA-EMC Cert | UKCA RoHS | CE, FCC, ROHS |
| 3D CAD: | MD10-POT | ||
| Official Reseller: | Makers Electronics |
