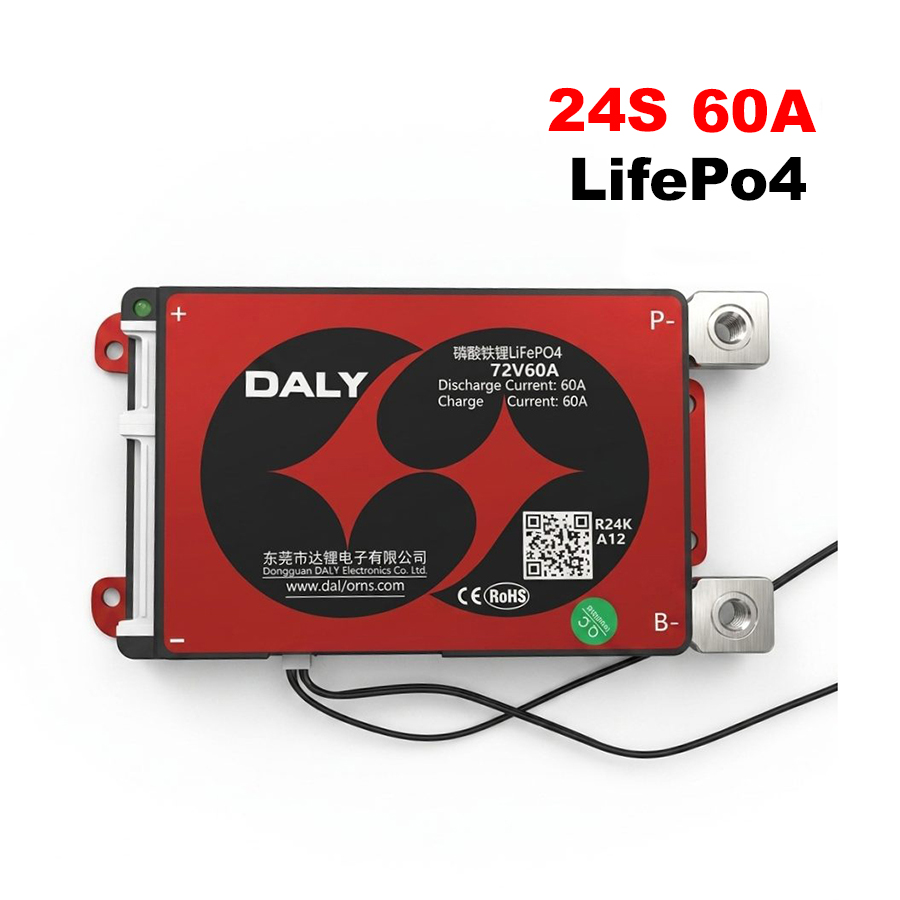

DALY LifePo4 Battery Charger Protection Module (BMS) 24S 60A 72V
A Phosphate LifePo4 battery management system designed to protect and balance 24-cell LiFePO4 battery packs in 72V energy storage, electric vehicle, and high-power battery applications.
2,900.00 EGP
Buy NowDALY LifePo4 Battery Charger Protection Module (BMS) 24S 60A 72V
The DALY 24S 60A LiFePO4 Battery Management System (BMS) is a professional-grade protection module designed for 72V lithium iron phosphate battery packs consisting of twenty-four cells connected in series. It continuously monitors individual cell voltages, charging and discharging currents, and battery temperature to ensure safe and stable battery operation. The integrated protection circuitry helps prevent battery damage caused by overcharging, over-discharging, excessive current, and short-circuit conditions.
Built for demanding energy storage and electric mobility applications, this BMS features an intelligent cell balancing function that maintains uniform voltage levels across all cells. Proper balancing improves battery efficiency, increases usable capacity, extends battery lifespan, and enhances overall system reliability. Its waterproof and durable construction makes it suitable for electric vehicles, solar storage systems, industrial equipment, and other high-power battery installations.
Features:
- Designed for 24-cell LiFePO4 battery packs.
- Integrated cell balancing function.
- Overcharge protection.
- Over-discharge protection.
- Overcurrent protection.
- Short-circuit protection.
- Temperature monitoring support.
- Automatic fault recovery.
- Waterproof construction.
- High reliability and long service life.
- Enhances battery safety and performance.
- Suitable for high-power battery systems.
- Compact and durable design.
- Optimized for energy storage and electric vehicle applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Battery Management System (BMS) |
| Battery Chemistry | LiFePO4 |
| Battery Configuration | 24S (24 Cells in Series) |
| Nominal Battery Voltage | 72V |
| Continuous Discharge Current | 60A |
| Charge Current | 60A |
| Balancing Function | Supported |
| Temperature Sensor | NTC Supported |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |
| Connection Type | Common Port |
| Waterproof Design | Yes |
| Mounting Type | External Battery Pack Installation |

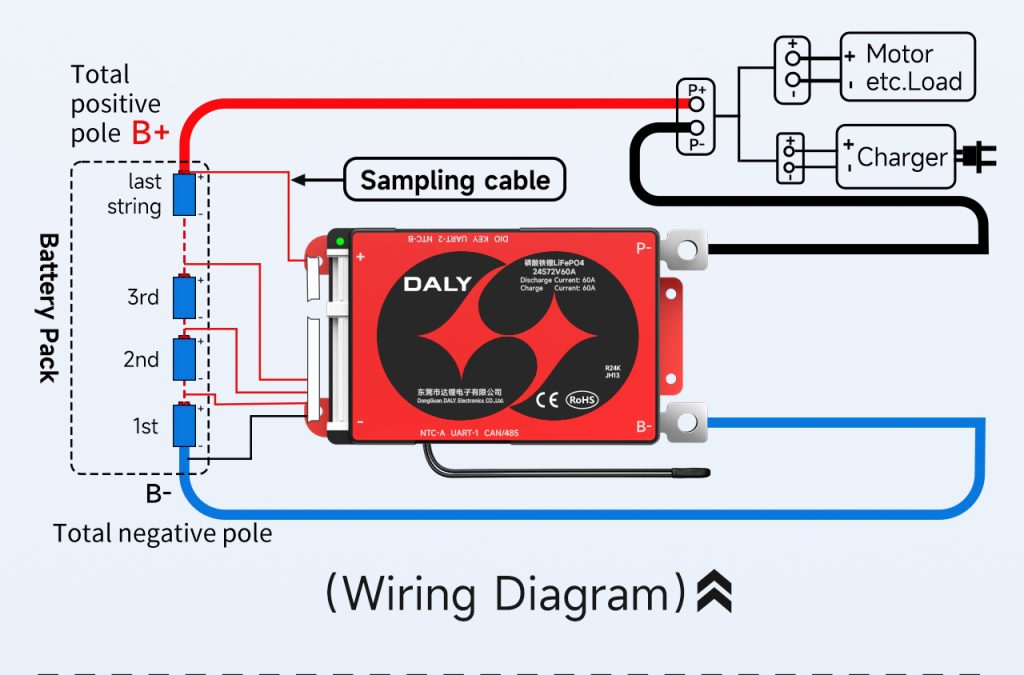

Pinout:
Main Power Connections
| Terminal | Function |
|---|---|
| B- | Battery Pack Negative |
| P- | Charge/Discharge Negative |
| B1 | Cell 1 Positive |
| B2 | Cell 2 Positive |
| B3 | Cell 3 Positive |
| B4 | Cell 4 Positive |
| B5 | Cell 5 Positive |
| B6 | Cell 6 Positive |
| B7 | Cell 7 Positive |
| B8 | Cell 8 Positive |
| B9 | Cell 9 Positive |
| B10 | Cell 10 Positive |
| B11 | Cell 11 Positive |
| B12 | Cell 12 Positive |
| B13 | Cell 13 Positive |
| B14 | Cell 14 Positive |
| B15 | Cell 15 Positive |
| B16 | Cell 16 Positive |
| B17 | Cell 17 Positive |
| B18 | Cell 18 Positive |
| B19 | Cell 19 Positive |
| B20 | Cell 20 Positive |
| B21 | Cell 21 Positive |
| B22 | Cell 22 Positive |
| B23 | Cell 23 Positive |
| B24 (B+) | Battery Pack Positive |
| P+ | Common Positive Terminal |
Applications:
- LiFePO4 battery packs.
- Electric motorcycles.
- Electric scooters.
- Electric vehicles.
- Solar energy storage systems.
- Portable power stations.
- UPS backup systems.
- Marine battery systems.
- Industrial battery packs.
- Robotics and automation systems.
- RV and camper power systems.
- Off-grid energy storage solutions.
- Electric utility vehicles.
- Renewable energy storage systems.
Package Included:
- 1 × DALY 20S 60A LiFePO4 Battery Management System.
- 1 × NTC Temperature Sensor.
- 2 × Balance Wire Harness.
- 2 x Screws.
- 2x Pre-Terminated battery link cable.
