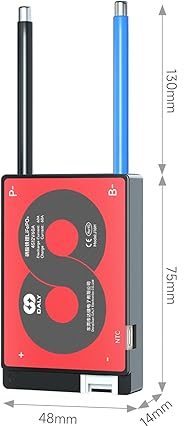

DALY Lithium-ion Battery Charger Protection Module (BMS) 16S 60A 60V
The DALY 16S 60A 60V Lithium-ion Battery Management System (BMS) is a professional battery protection module engineered for 60V lithium-ion battery packs consisting of sixteen cells connected in series. It continuously monitors individual cell voltages, charging and discharging currents, and battery temperature to ensure safe, stable, and efficient battery operation. The integrated protection circuitry helps prevent damage caused by overcharging, over-discharging, excessive current, and short-circuit conditions.
Designed for electric vehicles, electric motorcycles, energy storage systems, portable power stations, and industrial battery packs, this Module (BMS) incorporates an automatic cell balancing function that keeps all cells operating at similar voltage levels. Proper balancing improves battery efficiency, increases usable capacity, extends battery lifespan, and enhances overall system reliability. Its durable construction makes it suitable for both commercial and DIY battery pack installations.
Features:
- Designed for 16-cell lithium-ion battery packs.
- Integrated cell balancing function.
- Overcharge protection.
- Over-discharge protection.
- Overcurrent protection.
- Short-circuit protection.
- Temperature monitoring support.
- Automatic fault recovery.
- High reliability and long operational life.
- Improves battery performance and lifespan.
- Suitable for high-power battery systems.
- Compact and durable design.
- Optimized for electric mobility and energy storage applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Battery Management System Module (BMS) |
| Battery Chemistry | Lithium-ion |
| Battery Configuration | 16S (16 Cells in Series) |
| Nominal Battery Voltage | 60V |
| Continuous Discharge Current | 60A |
| Charge Current | 60A |
| Balancing Function | Supported |
| Temperature Sensor | NTC Supported |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |
| Connection Type | Common Port |
| Mounting Type | External Battery Pack Installation |
Pinout:
Main Power Connections
| Terminal | Function |
|---|---|
| B- | Battery Pack Negative |
| P- | Charge/Discharge Negative |
| B1 | Cell 1 Positive |
| B2 | Cell 2 Positive |
| B3 | Cell 3 Positive |
| B4 | Cell 4 Positive |
| B5 | Cell 5 Positive |
| B6 | Cell 6 Positive |
| B7 | Cell 7 Positive |
| B8 | Cell 8 Positive |
| B9 | Cell 9 Positive |
| B10 | Cell 10 Positive |
| B11 | Cell 11 Positive |
| B12 | Cell 12 Positive |
| B13 | Cell 13 Positive |
| B14 | Cell 14 Positive |
| B15 | Cell 15 Positive |
| B16 (B+) | Cell 16 Positive / Battery Pack Positive |
| P+ | Common Positive Terminal |
Applications:
- Electric bicycles.
- Electric scooters.
- Electric motorcycles.
- Electric vehicles.
- Portable power stations.
- Solar energy storage systems.
- UPS backup systems.
- Lithium-ion battery packs.
- Industrial battery-powered equipment.
- Robotics and automation systems.
- DIY battery pack projects.
- Renewable energy storage systems.
- Backup power solutions.
Package Included:
- 1 × DALY 16S 60A Lithium-ion Battery Module (BMS) Management System.
- 1 × Balance Wire Harness.
- 1 × NTC Temperature Sensor.
