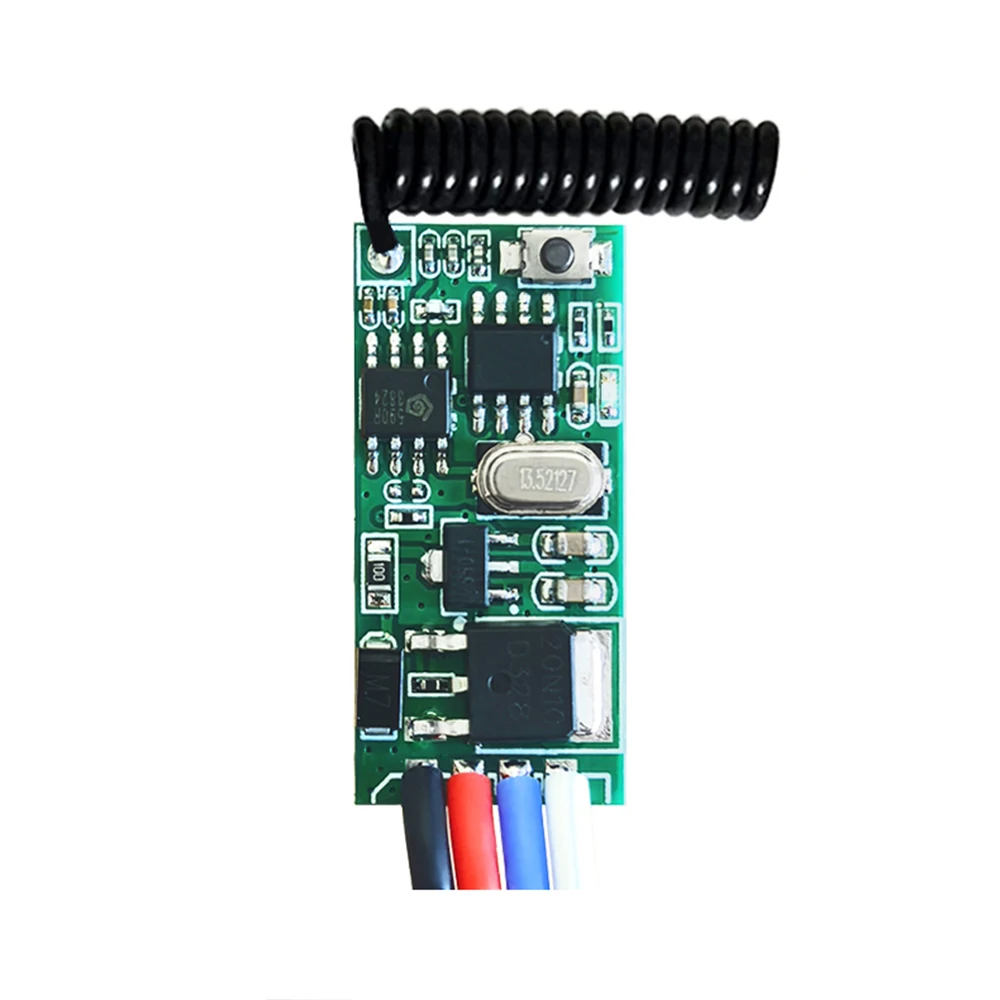

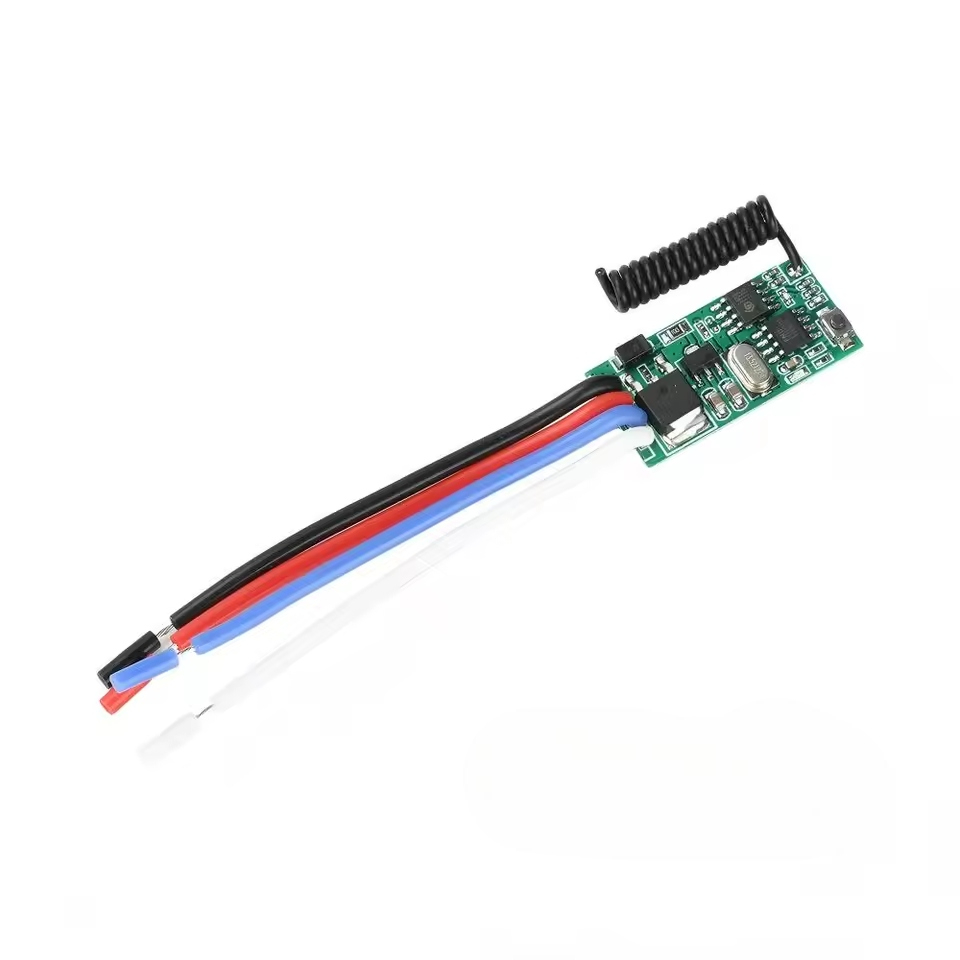

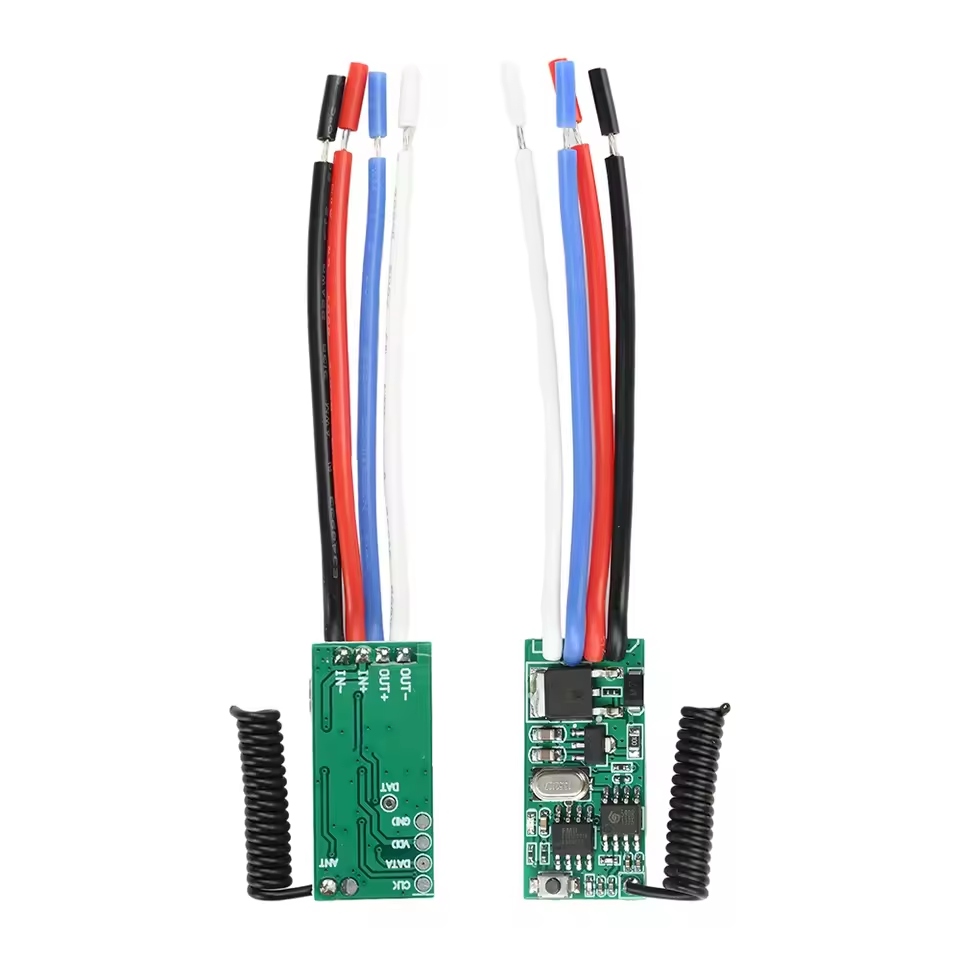

DCYL01A RX26 433MHz RF Receiver Wireless Module For Remote Controls O/P 3.6-24VDC 2A
The DCYL01A RX26 433MHz RF Receiver Wireless Module is a compact wireless relay receiver designed for remote ON/OFF control of DC-powered devices. Operating from 3.6V to 24V DC, the module features a built-in 2A relay output and supports 433MHz RF remote controls with learning capability.
Features:
- Operates with 433MHz RF remote controls
- Wide operating voltage range from 3.6V to 24V DC
- Built-in 2A relay output
- Can store multiple remote transmitters
- Compact PCB design for easy integration
- Suitable for LEDs, lighting, access systems, and DIY automation
Specifications:
| Product Model | DCYL01A / RX26 |
| Product Type | RF Wireless Receiver Module |
| Operating Frequency | 433MHz |
| Modulation | ASK |
| Code Type | Fixed Code |
| Operating Voltage | DC3.6V-24V |
| Max Output Current | 2A |
| Output Type | MOSFET Electronic Switch |
| Control Range | Up to 50m (Open Field) |
| Operating Modes | On/OFF |

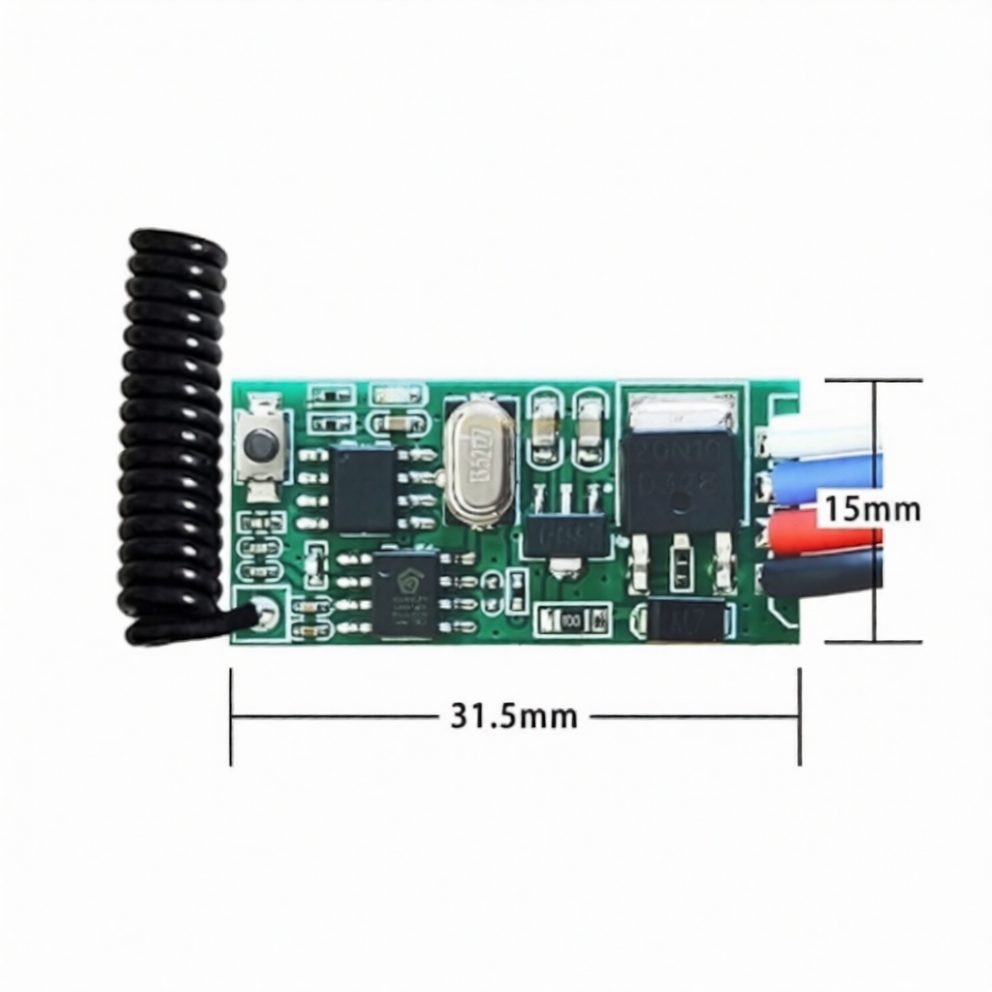

| Module Dimensions | 31.5x15mm |
| Antenna Type | Spring Coil |

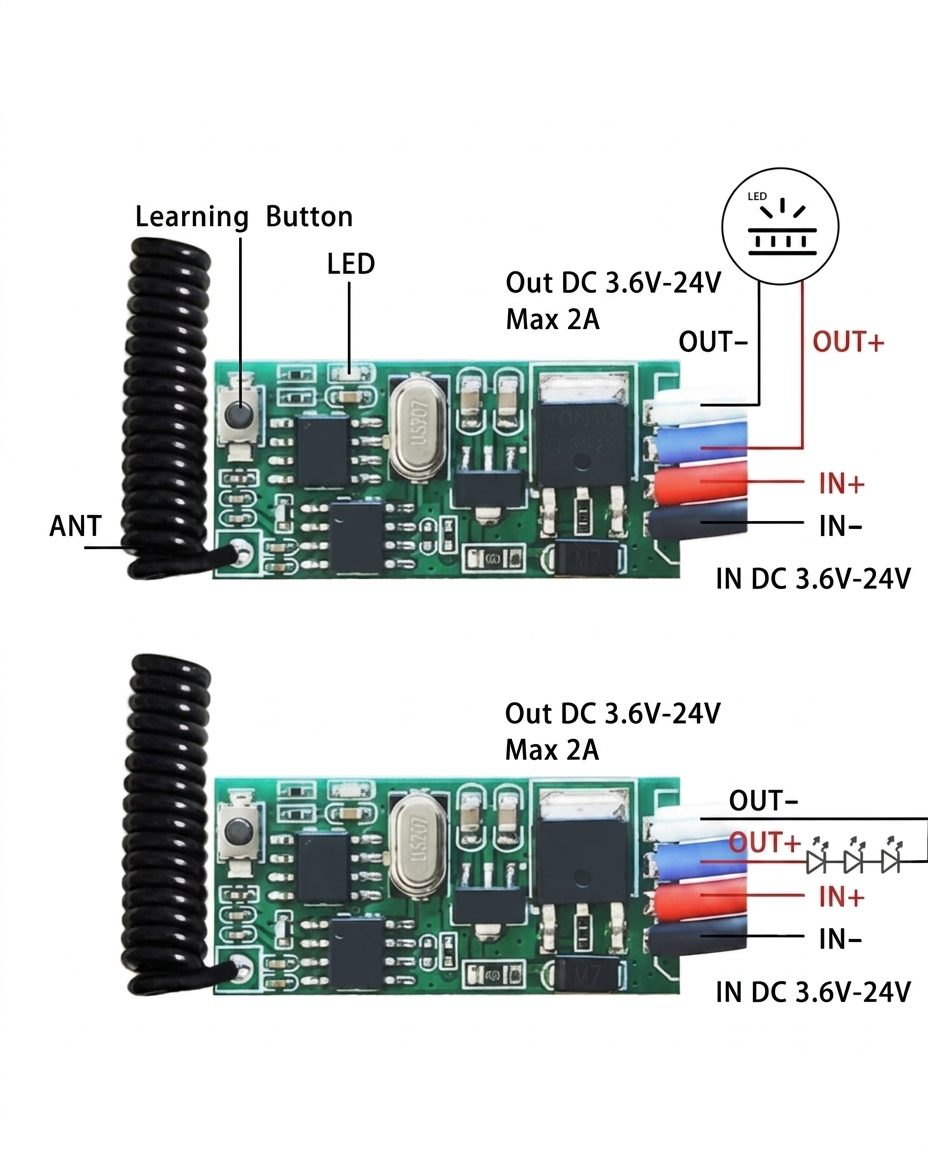

| Input Wires | IN+, IN- |
| Output Wires | OUT+, OUT- |
Configuration:
Applications:
- Wireless LED control
- Home automation systems
- Wireless switches
- Remote lighting control
- Access control systems
- Small DC motors
- Garage door projects
- Smart DIY projects
- Security and alarm systems
Package Include:
1x DCYL01A RX26 433MHz RF Receiver Wireless Module For Remote Controls O/P 3.6-24VDC 2A
