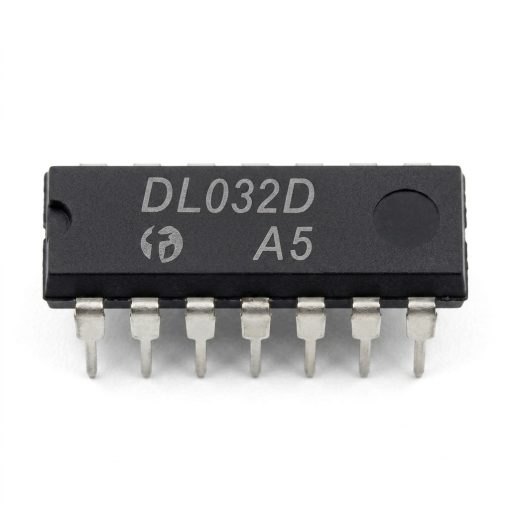

DL032D Quad 2-Input OR Gate Logic IC DIP14
The DL032D is a TTL-based Quad 2-Input OR Gate integrated circuit designed for digital logic processing, signal combination, embedded systems, and electronic control applications. The IC contains four independent 2-input OR gates in a standard DIP14 through-hole package, making it suitable for breadboard prototyping, educational electronics, industrial control systems, and PCB development.
Features:
- Four independent 2-input OR gates.
- Compatible with 7432 and SN74LS32 logic families.
- TTL Low-Power Schottky technology.
- Standard DIP14 through-hole package.
- Fast switching performance.
- TTL-compatible input levels.
- Suitable for breadboard prototyping.
- Low power consumption.
Specifications:
| Parameter | Value |
|---|---|
| Model | DL032D. |
| Equivalent IC | 7432 / SN74LS32. |
| Technology | TTL Low-Power Schottky (LS). |
| Operating Voltage (VCC) | 5VDC (4.75V to 5.25V). |
| High-Level Input Voltage (VIH) | Min 2.0V. |
| Low-Level Input Voltage (VIL) | Max 0.8V. |
| High-Level Output Voltage (VOH) | Min 2.7V. |
| Low-Level Output Voltage (VOL) | Max 0.5V. |
| High-Level Output Current (IOH) | -400µA. |
| Low-Level Output Current (IOL) | 8mA. |
| Propagation Delay (tPLH / tPHL) | 22ns. |
| Operating Temperature | 0°C to +70°C. |
| Package Type | DIP-14. |
Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | 1A | Gate 1 Input A |
| 2 | 1B | Gate 1 Input B |
| 3 | 1Y | Gate 1 Output |
| 4 | 2A | Gate 2 Input A |
| 5 | 2B | Gate 2 Input B |
| 6 | 2Y | Gate 2 Output |
| 7 | GND | Ground |
| 8 | 3Y | Gate 3 Output |
| 9 | 3A | Gate 3 Input A |
| 10 | 3B | Gate 3 Input B |
| 11 | 4Y | Gate 4 Output |
| 12 | 4A | Gate 4 Input A |
| 13 | 4B | Gate 4 Input B |
| 14 | VCC | Positive Supply Voltage |
Applications:
- Digital logic circuits.
- Signal combining applications.
- Embedded system development.
- TTL logic systems.
- Educational electronics projects.
- Industrial control systems.
- Breadboard prototyping.
- Logic-level signal processing.
- Automation electronics.
- Digital control circuit design.
Package Include:
1x DL032D Quad 2-Input OR Gate Logic IC.
