DSP56F801 16-bit Digital Signal Processor 48-LQFP SMD IC
The DSP56F801 is a 16-bit digital signal controller combining a high-efficiency 56800-family DSP core with microcontroller features, on-chip Flash and RAM, and a rich set of analog and timing peripherals suited for motor control, power conversion, sensing and embedded signal processing applications. The device supports high instruction throughput with hardware multiply-accumulate units, multiple internal buses for concurrent memory accesses, and integrated development/debug support via JTAG/OnCE for rapid application development and field upgrades.
Features
- 16-bit 56800-family DSP core with single-cycle 16×16 MAC and dual 36-bit accumulators for high-performance signal processing.
- Up to 40MIPS operation at 80MHz core frequency (30MIPS at 60MHz typical) for demanding control and DSP tasks.
- On-chip memory: Program Flash, Data Flash, Boot Flash, Program RAM and Data RAM for compact embedded systems and field update capability.
- Peripherals include six-output complementary PWM with dead-time insertion, two 4-channel 12-bit ADCs, SPI and SCI serial interfaces, general-purpose quad timers and watchdog/COP.
- Low-voltage supervisor, internal regulators, selectable clock sources (PLL or relaxation oscillator), JTAG/OnCE debug port and 11 multiplexed GPIO lines for flexible I/O and system control.
PINOUT
| Pin No. | Signal Name | Pin No. | Signal Name | Pin No. | Signal Name | Pin No. | Signal Name |
|---|---|---|---|---|---|---|---|
| 1 | TD0 | 13 | TCS | 25 | RESET | 37 | ANA5 |
| 2 | TD1 | 14 | TCK | 26 | VDDA | 38 | ANA6 |
| 3 | TD2 | 15 | TMS | 27 | VSSA | 39 | ANA7 |
| 4 | SS | 16 | IREQA | 28 | VDD | 40 | PWMA0 |
| 5 | MISO | 17 | TDI | 29 | VSS | 41 | VCAPC1 |
| 6 | MOSI | 18 | VCAPC2 | 30 | FAULTA0 | 42 | VDD |
| 7 | SCLK | 19 | Vss | 31 | ANA0 | 43 | Vss |
| 8 | TXD0 | 20 | VDD | 32 | ANA1 | 44 | PWMA1 |
| 9 | Vss | 21 | EXTAL | 33 | ANA2 | 45 | PWMA2 |
| 10 | VDD | 22 | XTAL | 34 | VREF | 46 | PWMA3 |
| 11 | RXD0 | 23 | TDO | 35 | ANA3 | 47 | PWMA4 |
| 12 | DE | 24 | TRST | 36 | ANA4 | 48 | PWMA5 |
Specifications
| Parameter | Value |
|---|---|
| Core | 16-bit5 6800-family |
| Performance | Up to 40MIPS@80MHz / 30MIPS@60MHz |
| Program Flash | 8K×16words (16KB) |
| Program RAM | 1K×16words (2KB) |
| Data Flash | 2K×16words (4KB) |
| Data RAM | 1K×16words (2KB) |
| Boot Flash | 2K×16words (4KB) |
| MAC | 16×16→36-bit single-cycle MAC with two 36-bit accumulators |
| ADCs | Two 4-channel 12bit ADCs (supports simultaneous conversions) |
| PWM Outputs | 6 complementary PWM outputs with dead-time insertion |
| Timers | General-purpose quad timers and dedicated timer resources |
| Serial Interfaces | SPI, SCI (UART) |
| Debug | JTAG / OnCE debug/programming port |
| GPIO | Up to11 multiplexed GPIO pins |
| Clock | PLL or internal relaxation oscillator; software programmable |
| Voltage | Single 3.3V supply with on-chip regulators (3.3V-tolerant I/O) |

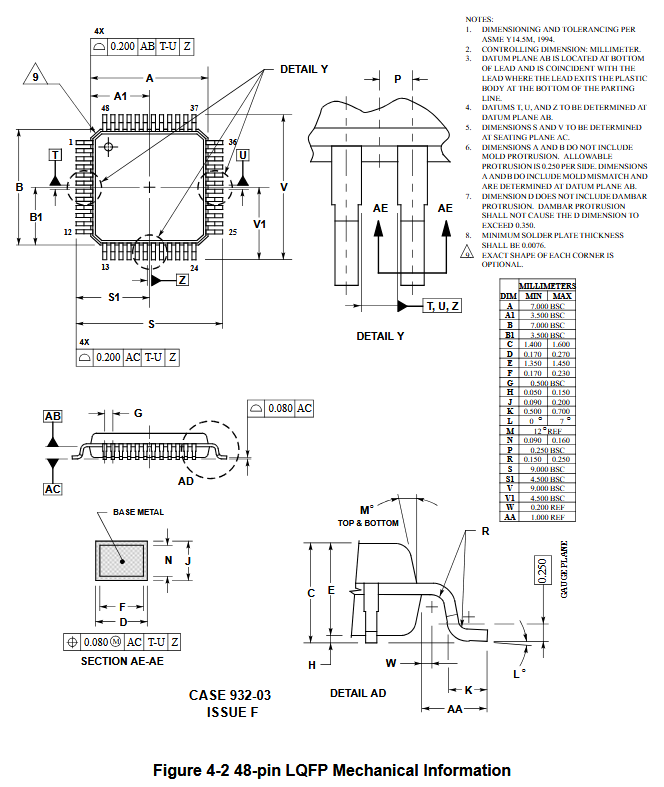

| Package | 48-pin LQFP (SMD) |
Applications
- Motor control (BLDC, DC, stepper) and power-conversion control systems.
- Embedded audio, speech and general DSP signal-processing tasks.
- Sensor fusion, encoders, tachometry and precision measurement systems.
- Industrial automation, remote metering and smart appliance controllers.
- Compact real-time control platforms that require both DSP and MCU features.
Package Contents
- 1x DSP56F801 16-bit Digital Signal Processor 48-LQFP SMD IC.
Documents
| Datasheet | DSP56F801 |
| CAD Files | Download |
