Features:
- High voltage capability.
- Low spread of dynamic parameters.
- High Speed Switching.
- Suitable for Switching Regulator and Motor Control.
Pin Assignments:
Specifications:
| Datasheet | E13003 |
| Product Category: | Bipolar Transistors – BJT |
| Technology: | Si |
| Model | E13003 |
| Transistor Polarity: | NPN |
| Configuration: | Single |
| Mounting Style: | Through Hole |

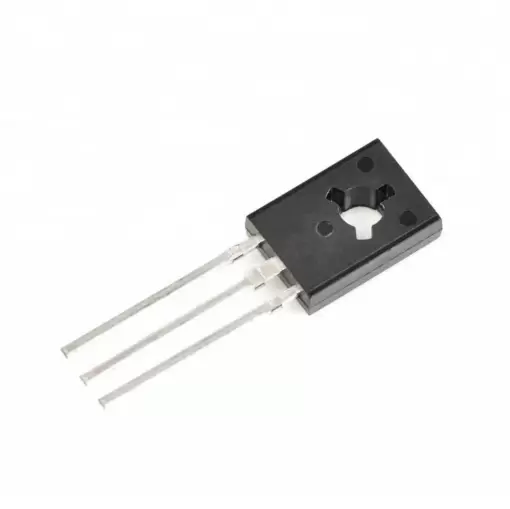

| Package/Case: | TO-126 |
| Maximum DC Collector Current: | 1.5 A |
| Collector- Emitter Voltage VCEO Max: | 400 V |
| Collector- Base Voltage VCBO: | 700 V |
| Emitter- Base Voltage VEBO: | 9 V |
| Collector-Emitter Saturation Voltage: | 500 mV |
| Pd – Power Dissipation: | 20 W |
| Gain Bandwidth Product fT: | 4 MHz |
| Continuous Collector Current: | 1.5 A |
| DC Collector/Base Gain hFE Min: | 8 |
| DC Current Gain hFE Max: | 40 |
| Maximum Operating Temperature: | + 150 °C |
Applications:
- Switching Applications.
- Power Supplies.
- Inverters.
- Relay Drivers.
- Motor Control.
- Amplifiers.
- Lighting Circuits.
- Voltage Regulators.
- Televisions and Monitors.
- Battery Chargers.
