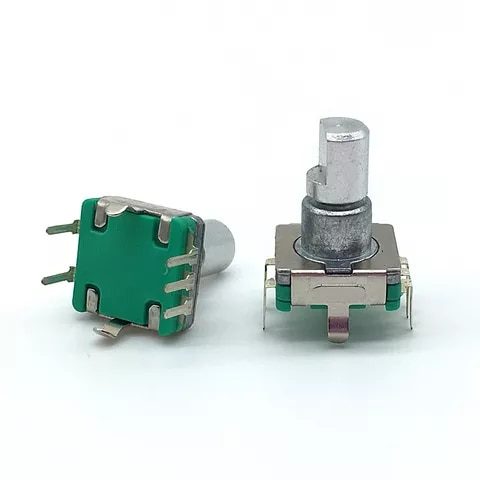

EC11 Rotary Encoder With Push Button Switch 5pin 12mm D-Shaft

EC11 Rotary Encoder With Push Button Switch D-Shaft

Rotary encoders are widely used in modern typical applications: CNC machine tools, printing equipment, packaging machinery, conveyors, elevators, robots, wind power, cranes. CNC machine tools using a rotary encoder precise control of the tool and the table; elevators using a rotary encoder to confirm the car floor; conveyor belt using a rotary encoder to monitor the speed and distance of an object moving on the conveyor; robot uses a rotary encoder position and drive monitoring tool axis movement; rotary encoder controls the position of the crane, the crane measuring speed, overspeed protection; wind power using a rotary encoder control blade angle and wind speed; packaging machinery using a rotary encoder measures the length of the target, calculate the number of packaging film ; printing equipment using a rotary encoder to calculate the length of the paper, and confirm the cutting position

Usage:

• A variety of DVD players, CD portable audio, video monitors and other audio equipment control;
• Audio mixers, electronic instruments, etc. control; car navigation, car audio Potentiometer
• Regulation and menu choices, a variety of common household appliances governor

Specifications:

• Rotary Shaft Length: Approx. 7mm
• Shank Length: Approx. 12mm
• Shaft Diameter: Approx. 6mm
• D-Shaft Diameter: Approx. 4.5mm
• Rating: 10 mA @ 5 VDC
• Operating Temperature Range: -30 to 70 degrees Celsius
• Storage Temperature Range: -40 to 85 degrees Celsius
• Rotational Life: 30000 cycles minimum
• Switch Life: 20000 cycles minimum

Drawing:
