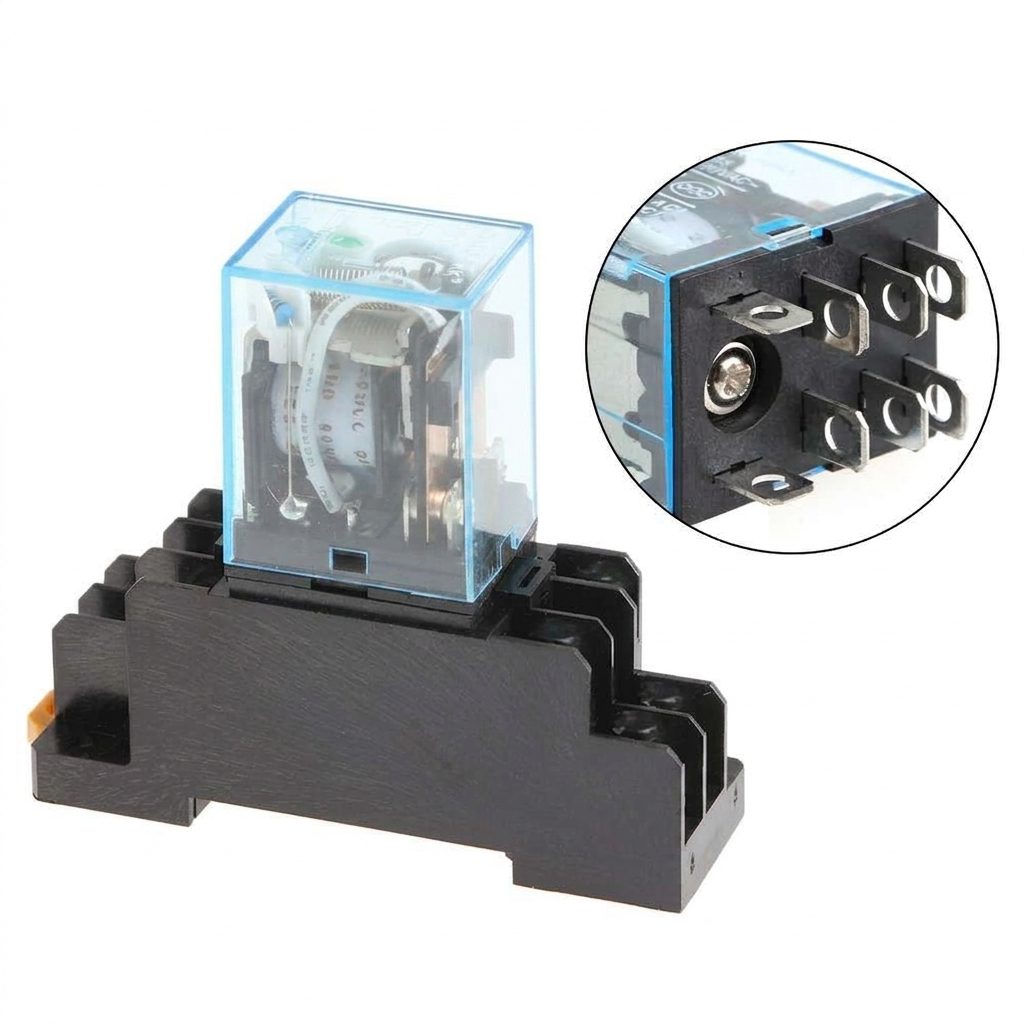

Electromagnetic Relay LY2N-J DPDT 12VDC Coil 8 Pin with PTF08A Socket
LY2N-J Reliable 8-pin DPDT electromagnetic relay with a 12VDC coil, LED operation indicator, and PTF08A relay socket for industrial control and automation applications.
Price range: 60.00 EGP through 95.00 EGP
Buy NowElectromagnetic Relay LY2N-J DPDT 12VDC Coil 8 Pin with PTF08A Socket
The Electromagnetic Relay LY2N-J DPDT 12VDC Coil 8 Pin is a general-purpose electromagnetic relay designed for switching and controlling electrical circuits in automation, control panels, electronic equipment, and electrical projects. It operates from a 12VDC coil and provides two changeover contact poles, allowing two independent circuits to be controlled from a single relay.
Features:
- DPDT (Double Pole Double Throw) contact configuration.
- 12VDC electromagnetic coil.
- 5A or 10A contact rating.
- Integrated LED operation indicator.
- Standard 8-pin plug-in relay.
- Includes PTF08A relay socket.
- Screw terminal socket connections.
Specifications:
| Parameter | Value |
|---|---|
| Model | LY2NJ. |
| Type | Medium Small Electromagnetic Relay. |
| Contact Capacity | 5A @ 240VAC / 5A @ 28VDC or 10A @ 240VAC / 10A @ 28VDC, depending on selected variation. |
| Contact Structure | 2NO (Normally Open), 2NC (Normally Closed), 8Pins. |
| Contact Material | Silver Plated Gold. |
| Terminal Type | Socket Type. |
| Coil Voltage | 12VDC. |
| Indicator | LED. |

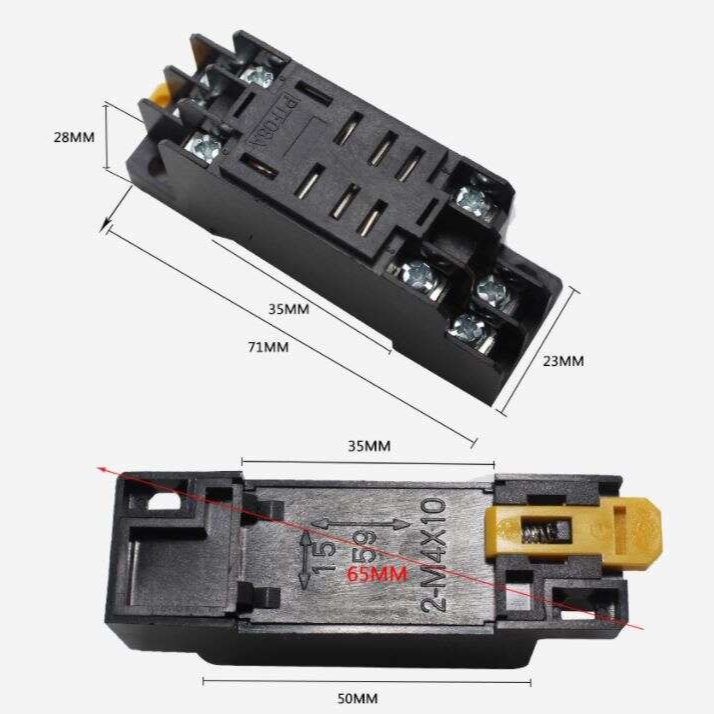

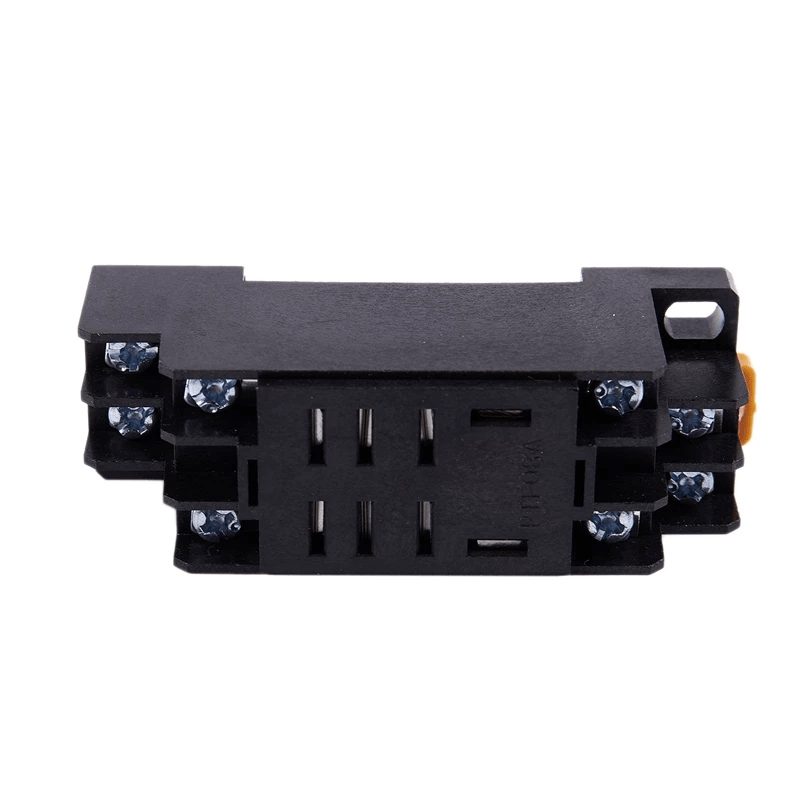

| Socket | PTF08A, included with applicable variations. |
Configuration:
Applications:
- PLC control systems.
- Industrial automation.
- Control panels.
- Machine control.
- Motor control circuits.
- Lighting control.
- Alarm systems.
- Timer circuits.
- Power switching.
- Home automation equipment.
- Process control systems.
- Electrical maintenance projects.
Package Include:
- 1x LY2N-J DPDT 12VDC Electromagnetic-Relay (5A or 10A, depending on selected variation).
- 1x PTF08A 8-Pin Relay Socket (included with socket variations only).
| ampere | 5A, 10A, 10A no socket |
|---|
